Keithley 7012-S - Typical Round Cable Connection Techniques; Figure

Card Connections & Installation
3-7

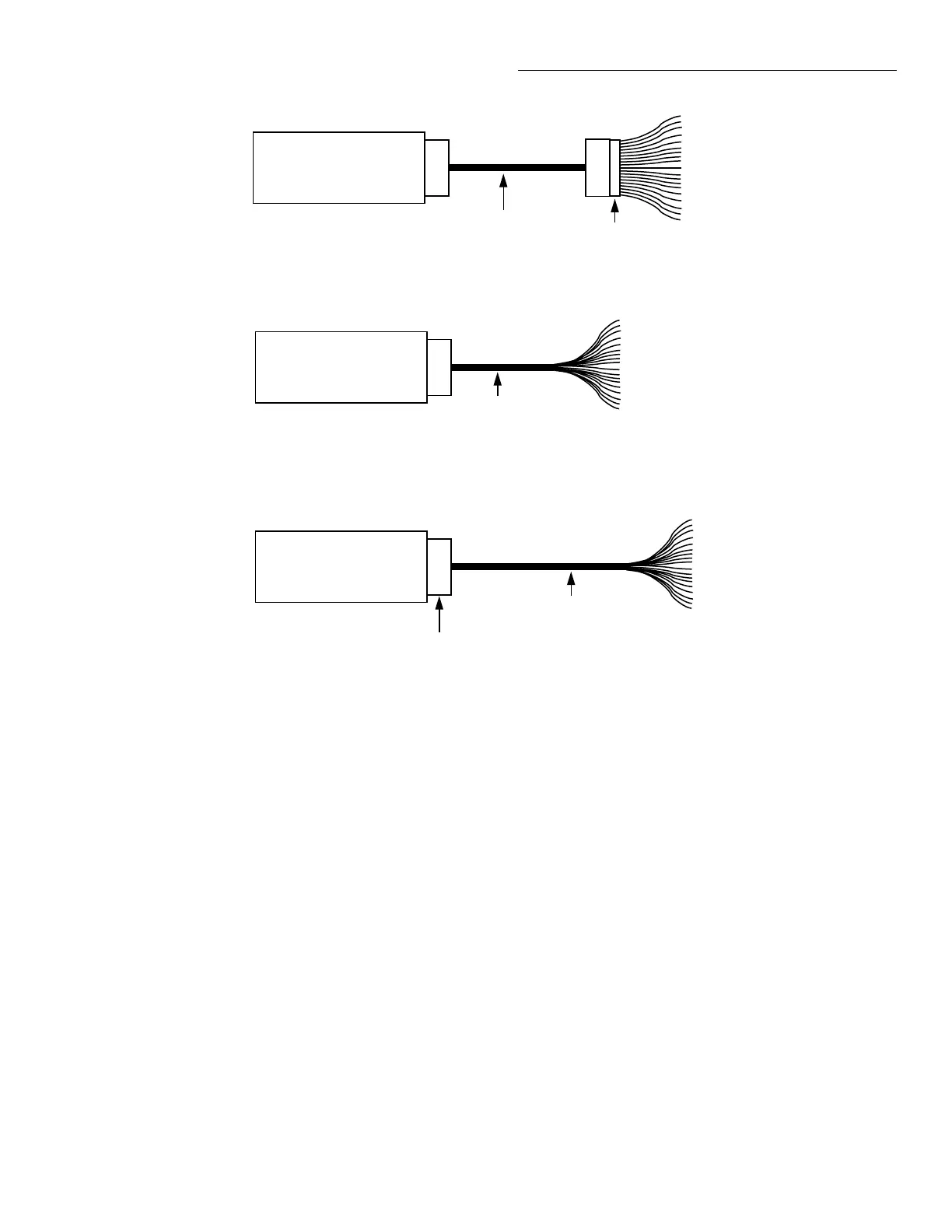

Figure 3-6
T
ypical round cable connection techniques
Multi-Pin
Connector
Card
7011-MTC-2
cable assembly
7011-MTR
bulkhead connector
A)
Multi-Pin
Connector
Card
Notes : Figure 3-8 provides an exploded view showing
how the connector (with cable) is assembled.
Wire instrumentation
and DUT to bulkhead
connector (See Figures
3-5 and 3-7 for terminal
identification)
B)
7011-MTC-2
(Cut in Half)
Wire directly to
instrumentation
and DUT
Multi-Pin
Connector
Card
C)
Cable
Wire directly to
instrumentation
and DUT
7011-Kit-R
Connector Kit
Cable Hitachi p/n N2807-P/D-50TAB is a
50-conductor cable. Two of these cables
can be used to supply 100 conductors.
