Keithley 7012-S

To Next Page

To Previous Page

Card Connections & Installation

3-12

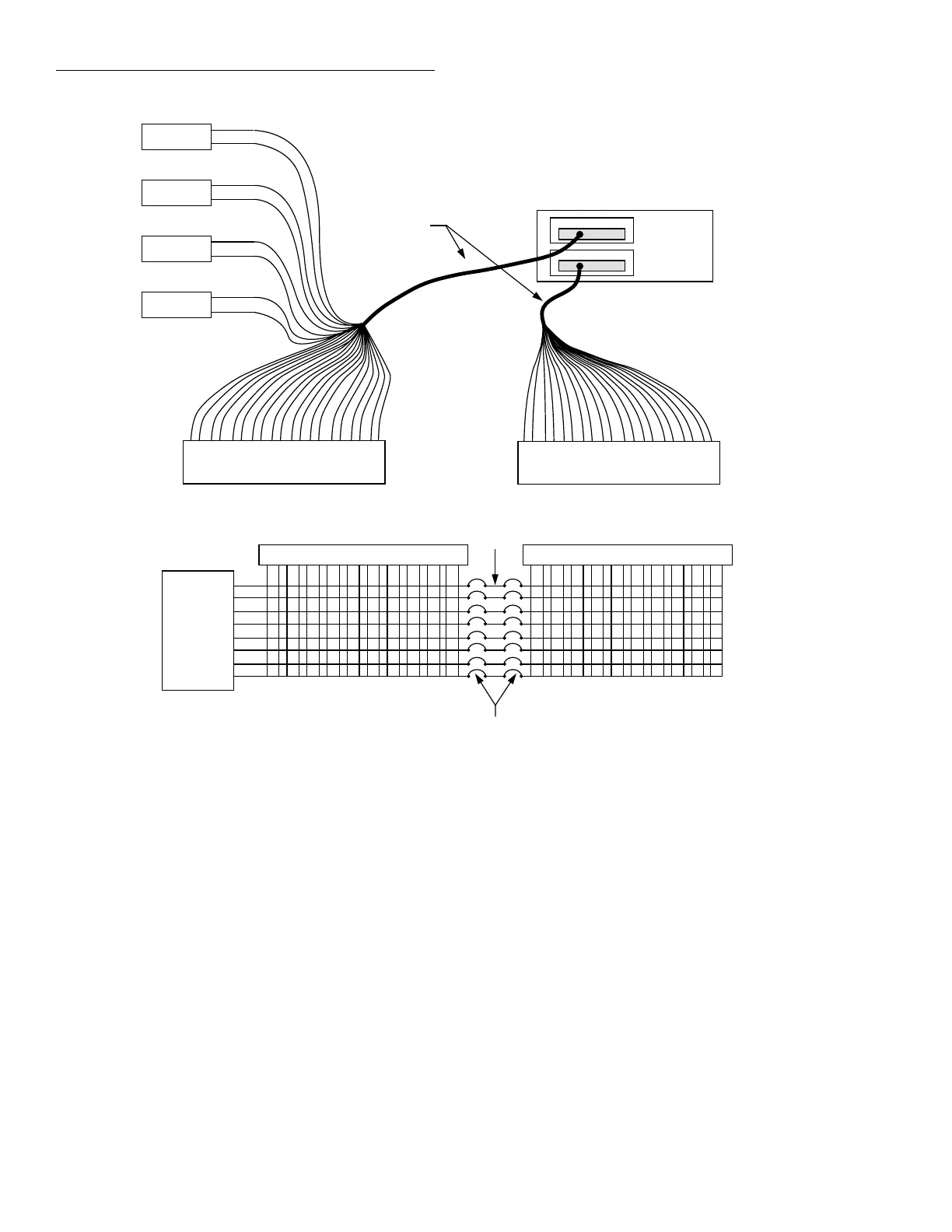

Figure 3-11

Two-card system example (multi-pin connector card)

7001

7012-C

DUT Test Fixture

12345678910

DUT Test Fixture

12345678910

7001

Backplane

DUT

12345678910

DUT

12345678910

DUT

12345678910

DUT

12345678910

Instruments

Backplane Row

Jumpers installed

Column Column

CARD 1 CARD 2

Equivalent Circuit

Note : Backplane row jumpers for

both matrix cards must be

installed.

Instrument

Row 1

Row 2

Row 3

Row 4

7011-MTC-2

Cable Assembly

(Cut in half to

provide two cables)

Row
