Kelant S400S - Assembling; Step 1-3: Placing Printer Base and Mounting Z-axis

5
5、Assembling

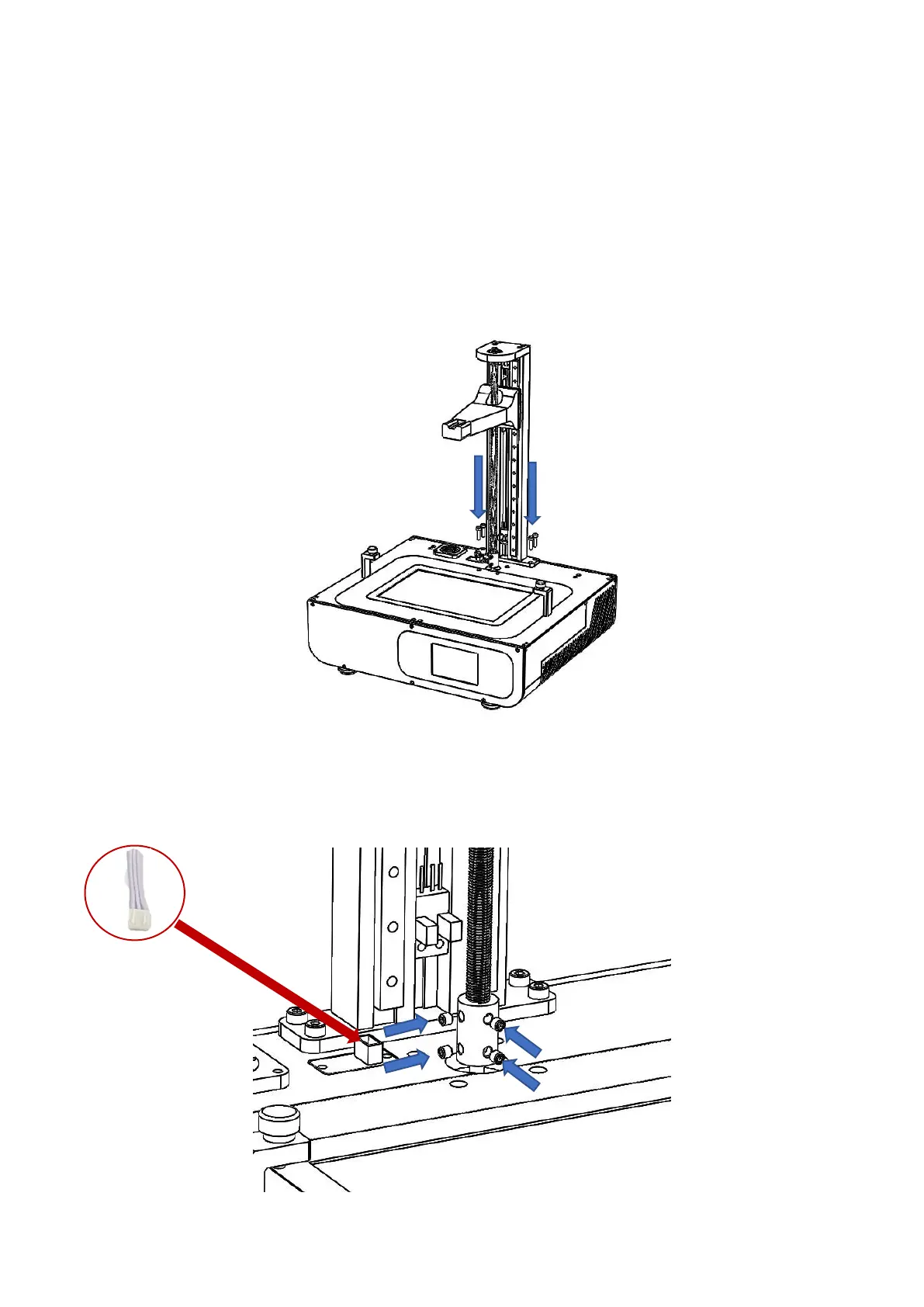

1、 Place Printer base on the desktop.
2、 Mount the Z-axis to the main unit as shown. (Materials required:
4 pcs screws ,M6*15 )
3、 Lock the screw of the lead screw and the motor coupling and insert
the upper limit switch plug.
