Kellfri 35-VKMATVF - Installation Diagrams; Front Installation; Side Shift Adjustment Installation


Table of Contents

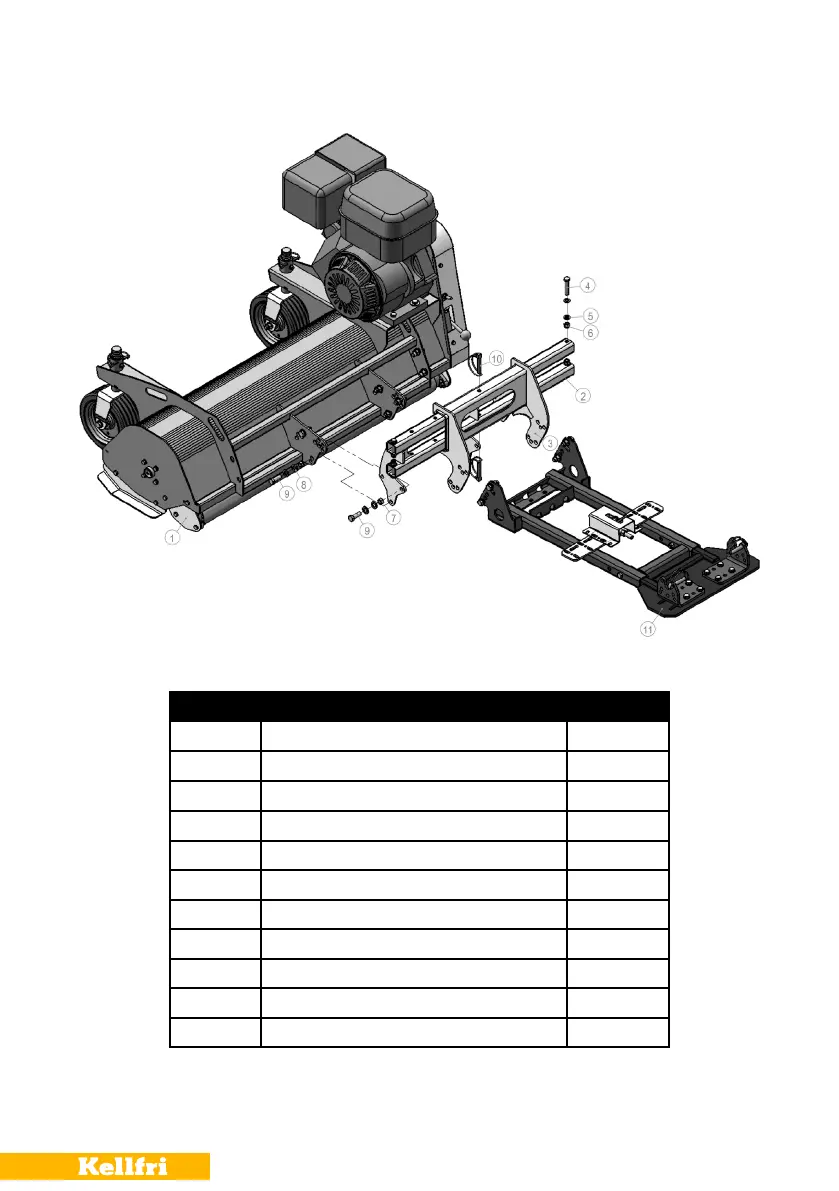

ITEM NO. DESIGNATION QUANTITY
1 Front installation
2 Side shift adjustment, front installation 1
3 Side shift adjustment, rear installation 1
4 Hex key M10x55 4
5 10 Flat washer 8
6 Hex lock nut M10 4
7 Hex lock nut M12 8
8 Flat washer 12 16
9 Hex key M12x35 8
10 Arch with pin 10x60 2
11 Installation, rear 1
