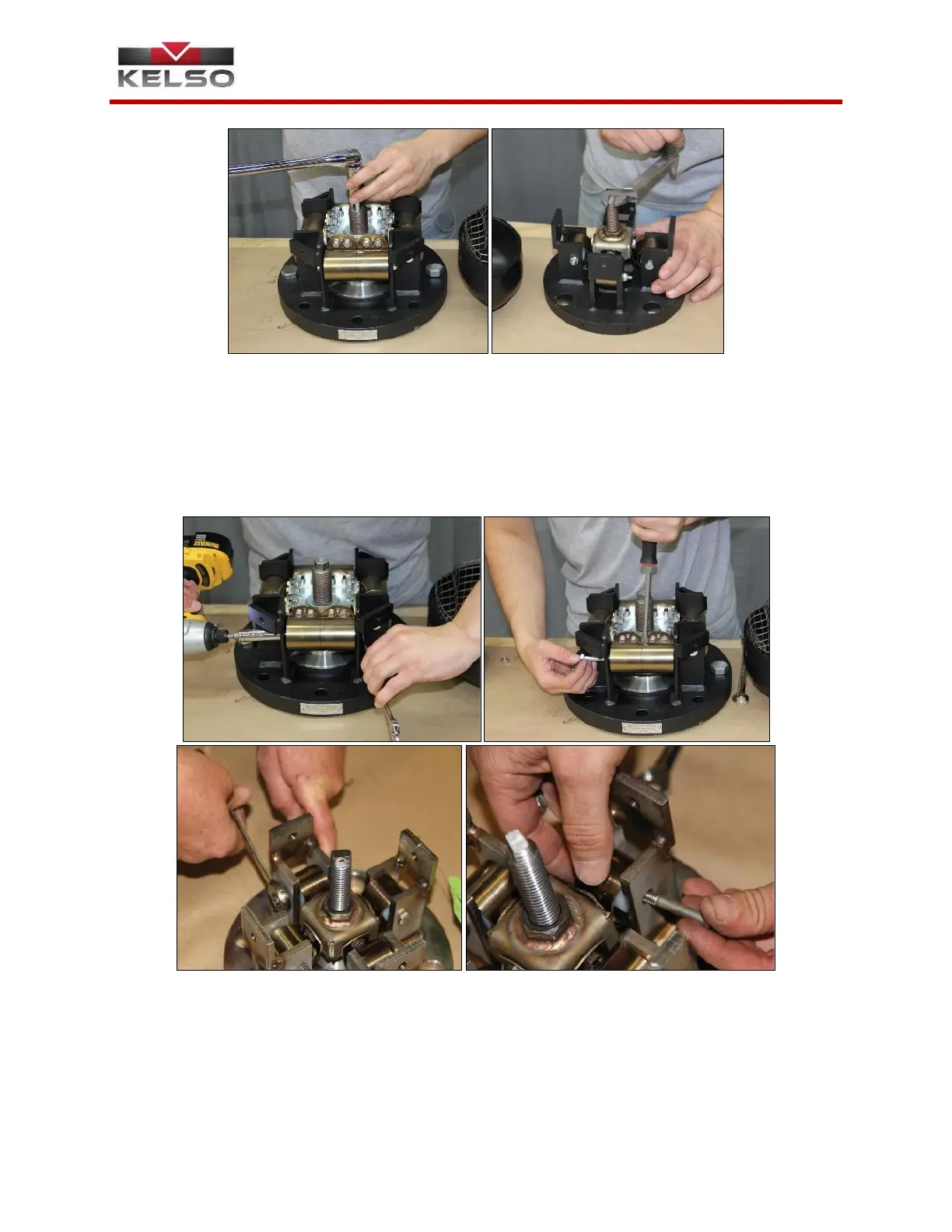

5. The spring block assembly is secured to the valve body by the drum bolts.
Remove the lock nut from the drum bolt, then pull the drum bolt free from the
spring assembly and valve body. If the drum bolts are not easily removed,
place a slotted screwdriver between the spring coil and the spring block, then
lightly pry the drum away from the spring block. This allows for easier
removal of the drum bolt (Figure 3.5 – 3.8).
6. Lift the spring block assembly along with the adjustment screw from the valve
body (Figure 3.9 & 3.10). If necessary, spring assemblies can be removed
from the spring block by removing the securement bolts. During disassembly
it is possible for the spring drum to slide free of the spring assembly. If this
occurs simply tap the drum back into place.
