7. The sealing disc can then be lifted and removed from the valve body (Figure
3.11 & 3.12).
3.2 JS75/75S, JS75H/75HS, JS165H/165HS, and
JS75XH/75XHS Seal Disc Disassembly
3.2.1 Needle Bearing Removal
Applies to: JS75H/HS, JS75XH/XHS, and JS165H/HS
1. Remove the top thrust washer (thicker) (Figure 3.13).
2. Remove the needle bearing (Figure 3.13).
3. Remove the bottom thrust washer (thinner) (Figure 3.13).

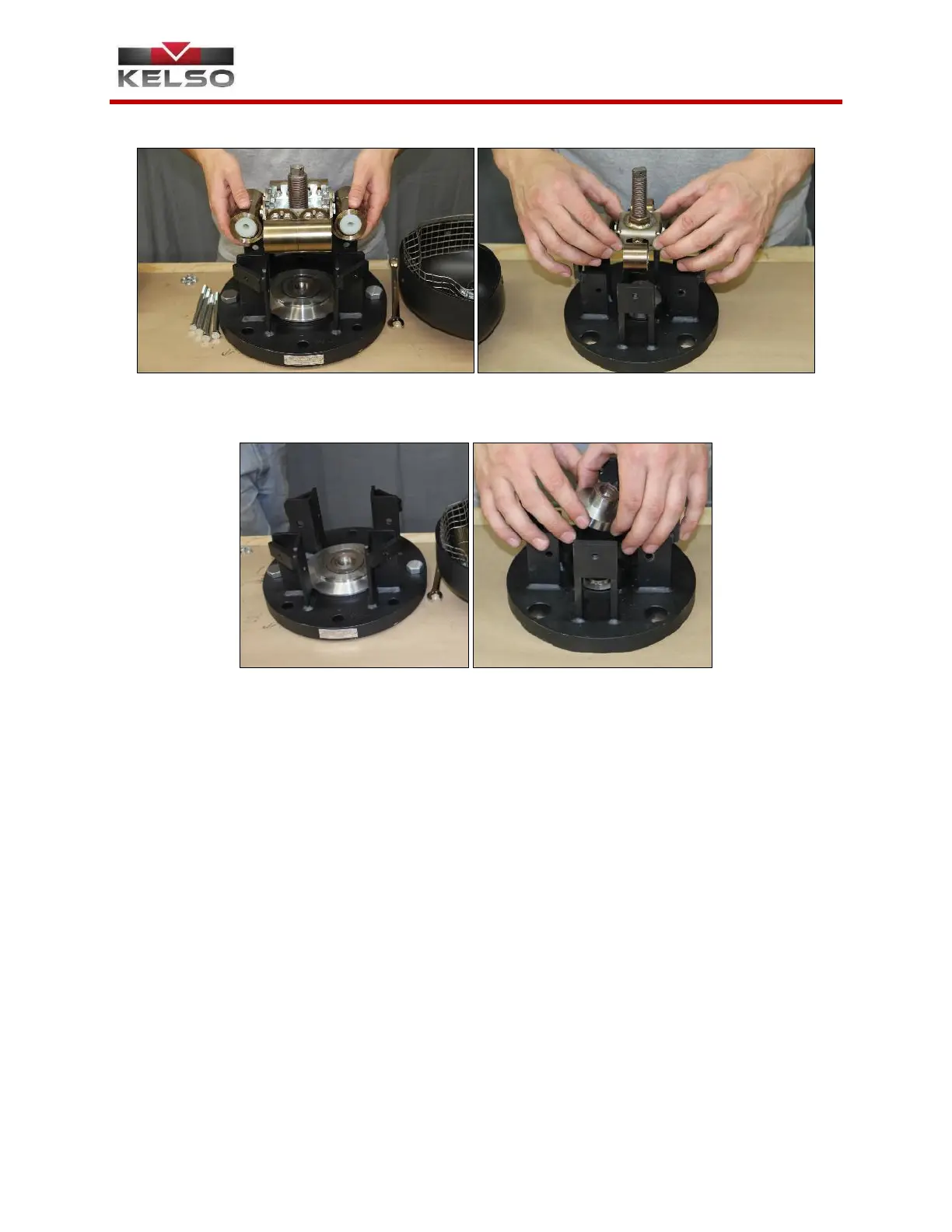

Figure 3.9
Figure 3.10
Figure 3.11
Figure 3.12
