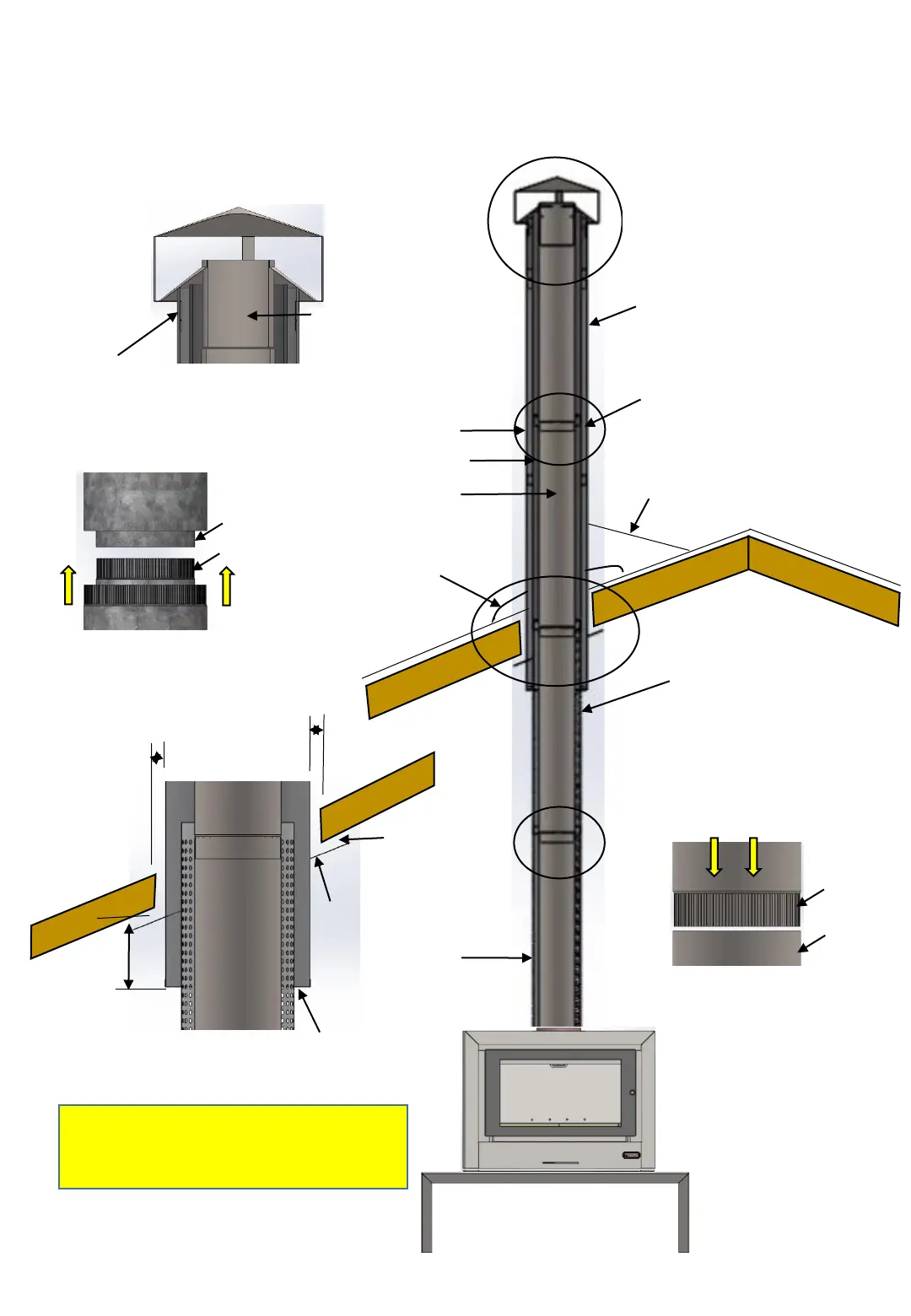

Kemlan CUBE - RAKED CEILING INSTALLATION

25
150
Run a bead of silicone down
the vertical seam of the outer
casing to the flashing
Raked ceiling trim
KEMLAN CUBE
RAKED CEILING INSTALLATION
Flash roof to outer
casing
(supplied by installer)
INSTALLATION INSTRUCTION
Pop rivet or
screw brackets to
the outside of the
outer casing
Short tube fits into flue
pipe. All flues should
be trimmed level
DETAIL A
DETAIL B
A
Stainless steel flue pipe.
All flue pipes must be
connected with pop rivets
supplied by installer
Flue system to be installed
to suit AS/NZS 2918.2001
25
Vented cap
B
Bracing supplied by installer
All casing flue pipes must
be connected with pop
rivets supplied by installer
12mm
Air Gap
8” Decro with double
heat shield
10” Flue
6” Flue
NOTE:- When Decromesh / Heatshield is fitted, it must
finish a minimum of 600mm below the ceiling or extend
through the ceiling drop box into the outer flue casing
8” Flue
c
DETAIL
c
All
8”-10” assembled flues must
have the crimps pointing upwards
D
DETAIL D
All 6” assembled flues must have
the crimps pointing downwards
crimped
plain
crimped
plain
Ver.20
06/06/2023 8
