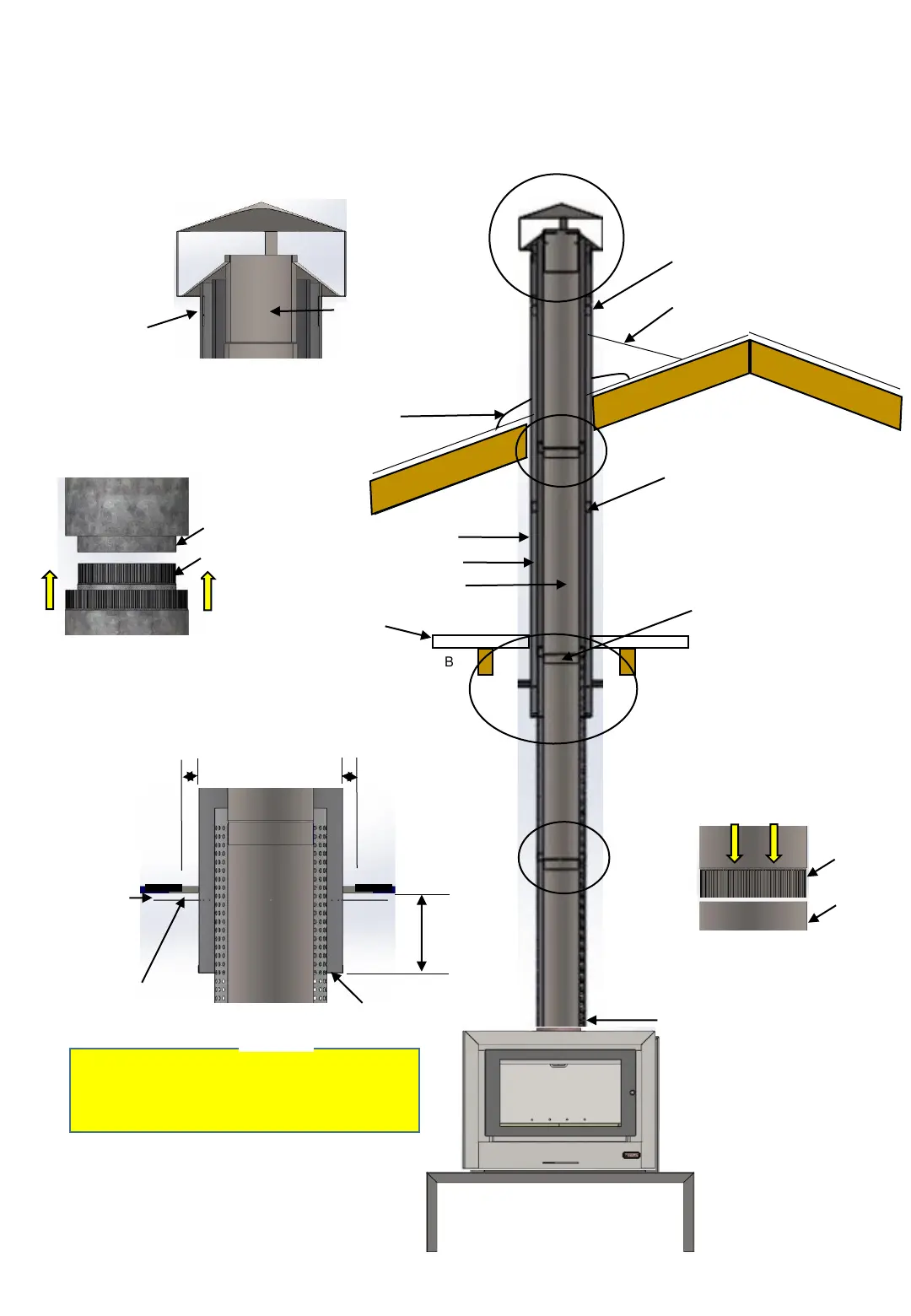

Kemlan CUBE - FLAT CEILING INSTALLATION

Run a bead of silicone down
the vertical seam of the outer
casing to the flashing
10” Flue
KEMLAN CUBE
FLAT CEILING INSTALLATION
6” Flue
Flash roof to outer casing
(supplied by installer)
INSTALLATION INSTRUCTION
Pop rivet or
screw brackets to
the outside of the
outer casing
Short tube fits into flue
pipe. All flues should
be trimmed level
DETAIL A
8” Decro with double heat shield
A
Stainless steel flue pipe.
All flue pipes must be
connected with pop rivets
supplied by installer
All casing flue pipes must
be connected with pop
rivets supplied by installer
Flue system to be installed
to suit AS/NZS 2918.2001
Vented cap
B
Support outer flue with
Brackets supplied
Bracing supplied by installer
NOTE:- When Decromesh / Heatshield is fitted, it must
finish a minimum of 600mm below the ceiling or extend
through the ceiling drop box into the outer flue casing
8” Flue
c
DETAIL
c
D
DETAIL
c
All
8”-10” assembled flues must
have the crimps pointing upwards
crimped
plain
All 6” assembled flues must have
the crimps pointing downwards
crimped
plain
DETAIL D
Ver.20
06/06/2023 7
25
12mm
Air gap
Ceiling trim
DETAIL B
25
