Prosync 50 (6263121)
Mounting instruction
• Install synchronisation card A002 (Prosync 50) to the Promig. See next page.
• Install connector XW501 (“military-type”) to the machines front panel. Use 3,5 x
9,5 mm. screws (included to the delivery).
• Connect connector XW502 (6-pole) from the XW501 to the connector X2 on the
synchronisation card A002.
• Connect connector XW503 (12-pole) to the connector X1 on the synchronisation
card A002. Connect connector XW504 (12-pole) to the connector X6 on the control
card A001.
• NOTE !! 2-pole connector is used only with Promig AVS models.

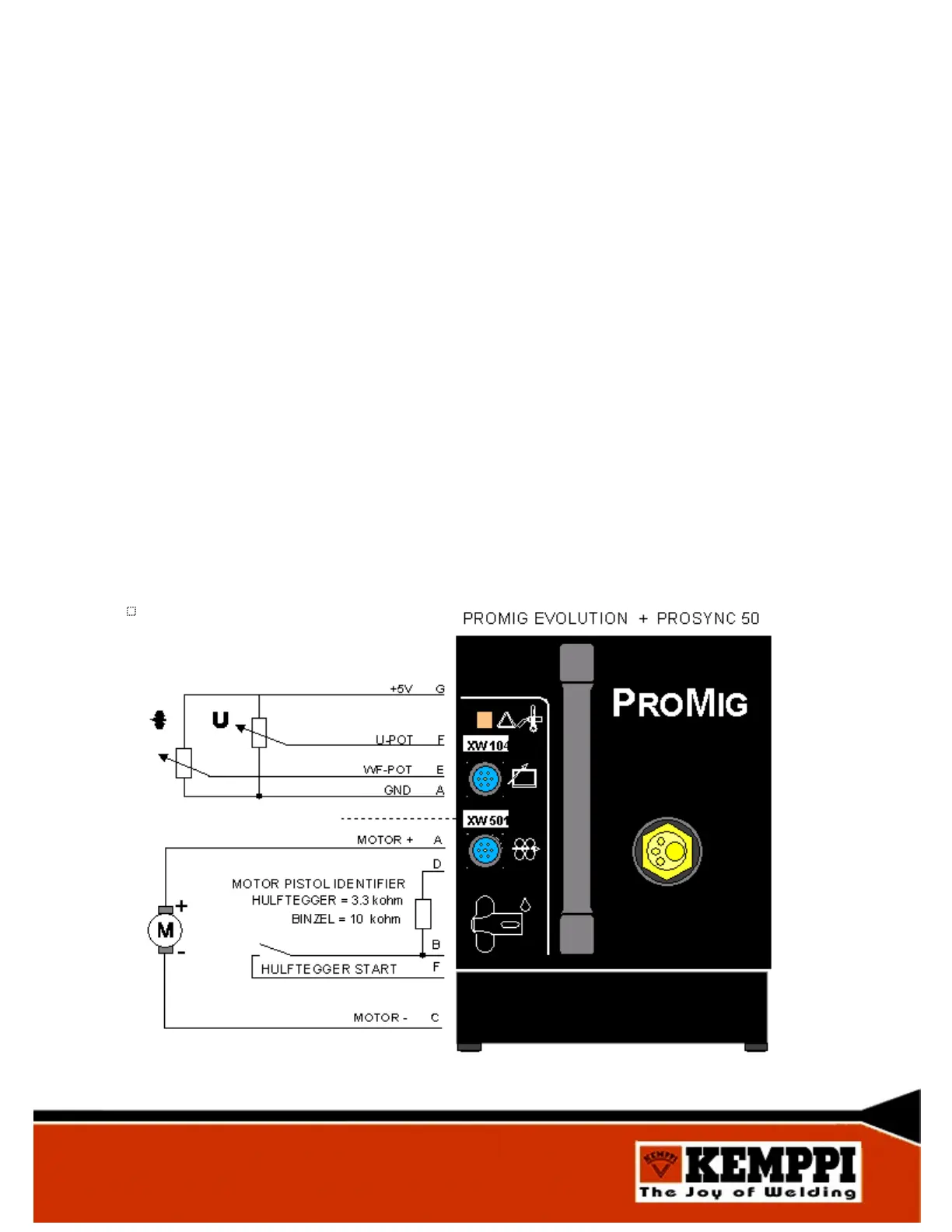

Connections
