4. Attach the wheel chock as shown above using the supplied 7” ring pin.
Note: Depending on the size of your front wheel the wheel chock may
have to be adjusted. Be sure to check fender and fairing clearance prior
to using wheel chock.

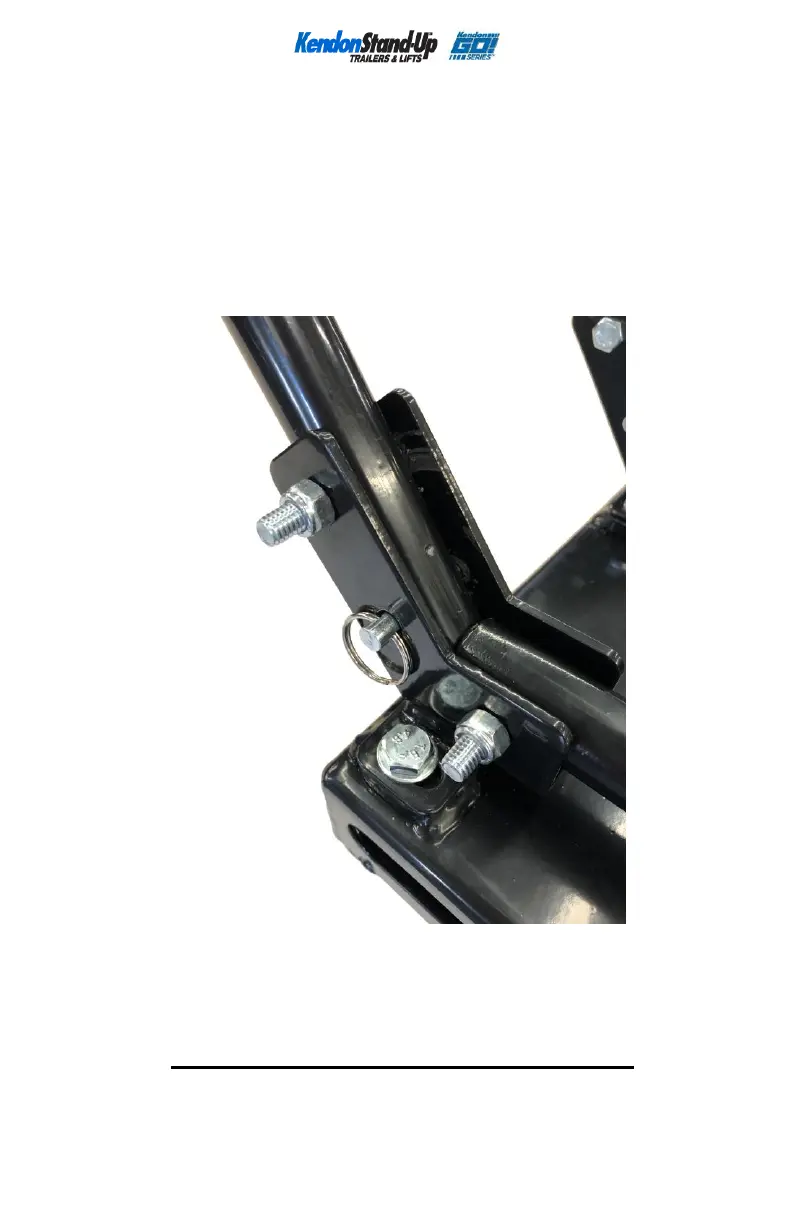

5. Secure the front wheel loop using the supplied hex nuts with lock nuts
and 5/16” detent ring pins.
Congratulations! The lift assembly is now complete and ready for use.
About your Lift’s Air-Over-Hydraulic System
Kendon Stand-Up™ Motorcycle Lifts are equipped with an Air-Over-Hydraulic
bottle jack. This means that the lift can be actuated using an air compressor
or manually using the supplied hand pump. To use your lift with an air
