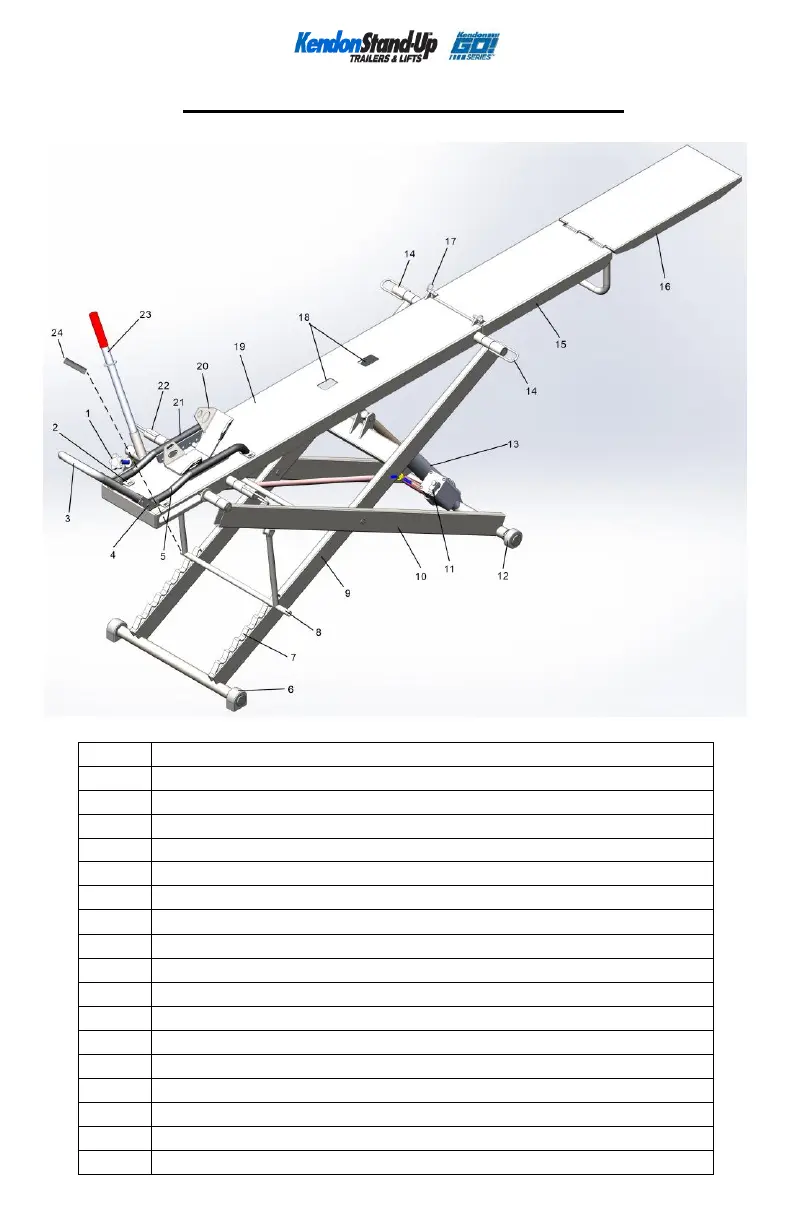

Expanded Drawing & Numbered Parts List
1
Lift Release Knob
2
Front Wheel Loop Brackets (2)
3
Front Wheel Loop
4
Front Wheel Loop Detent Ring Pins 5/16” (6)
5
Front Wheel Left Guide Rail
6
Lift Front Foot (2)
7
Height Positioner
8
Height and Safety Lock Bar
9
Inside Scissor
10
Outside Scissor
11
Air Hose with Air Attachment
12
Rear Caster Wheel (2)
13
Air-Over-Hydraulic Bottle Jack
14
Rear Tie-Down Hook (2)
15
Rear Rail Section
16
Loading Ramp
17
Rear Rail Detent Ring Pins ½” (2)
18
Fluid Drain Holes
