Kenmore 116.22263C - TO CLEAN AGITATOR; IMPORTANT; TO REPLACE BELT; AGITATOR ASSEMBLY

5
TRAîNEAU
ACCESSOIRES
TUYAU SOUPLE
Pivot de
tuyau
Réglage
d’aspiration
Poignée
Interrupteur à trois positions
(OFF/ Floor / Carpet)
(Arrête/Plancher/Moquette)
Objet Pièce N
o
.Pièce N
o
.
aux au
Etats-Unis Canadá
Sac à poussière
20-50557 20-50410
Filtre d’échappement 20-86889 20-40324
Filtre de sécurité 20-86883 20-40321
du moteur
18
FRANÇAIS
4. Rotate cover
back. Press
cover firmly until
side and rear
tabs snap into
place.
Make sure there is no gap between the
cover and base.
5. Turn Power-Mate
®
upside down and
replace two (2) cover screws.
Rear
Latches
Side
Latch

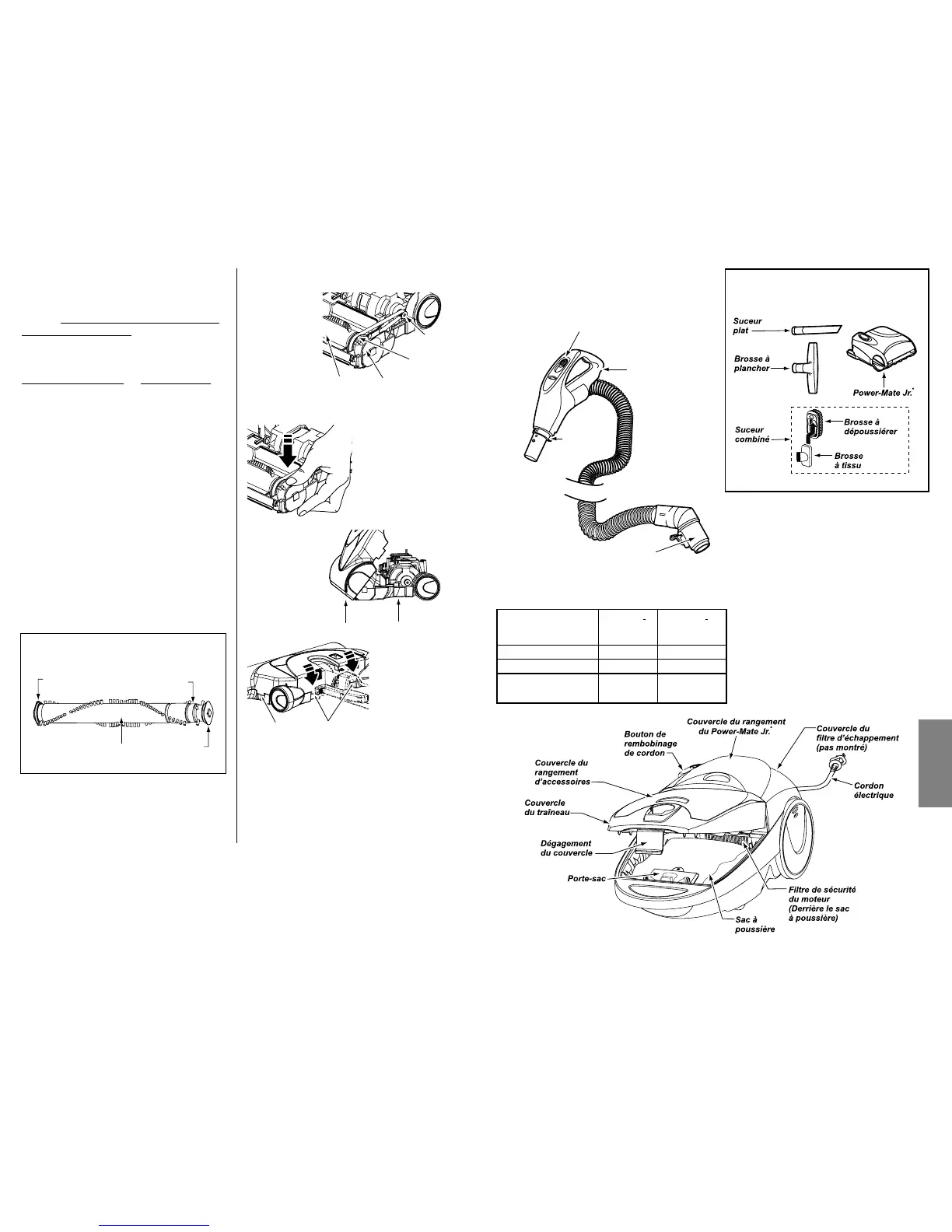

TO REPLACE BELT
1. Install new
belt over
motor drive,
then over
belt path.
NOTE: See
PARTS AND
FEATURES
for Belt number.
2. Place agitator
assembly back into
Power-Mate
®
.
3. Line up
front of
cover and
base. Rest
cover on
front edge
of base as
shown.
Motor
Drive
Belt
Path
End Cap
Agitator
Cover
Base
TO CLEAN AGITATOR:
NOTE: In order to keep cleaning efficiency
high and to prevent damage to your vacuum
cleaner, the agitator m
ust be cleaned every
time the belt is changed.
The agitator must also be cleaned accord-
ing to the following schedule:
V
acuum Cleaner Use Clean Agitator
HEAVY - every week
(used daily)
MODERATE - every month
(used 2-3 times/week)
LIGHT - every 2 months
(used 1 time/week)
IMPORTANT
Disconnect vacuum cleaner from
electrical outlet. Check and remove hair,
string and lint build-up frequently in the
Power-Mate
®
agitator and end cap areas.
Remove any dirt or debris in the belt path
area or in the brush roller area.
Carefully remove any string or debris
located on the agitator or end caps.
End Cap
End Cap
Belt Path
Brush Unit
AGITATOR ASSEMBLY
