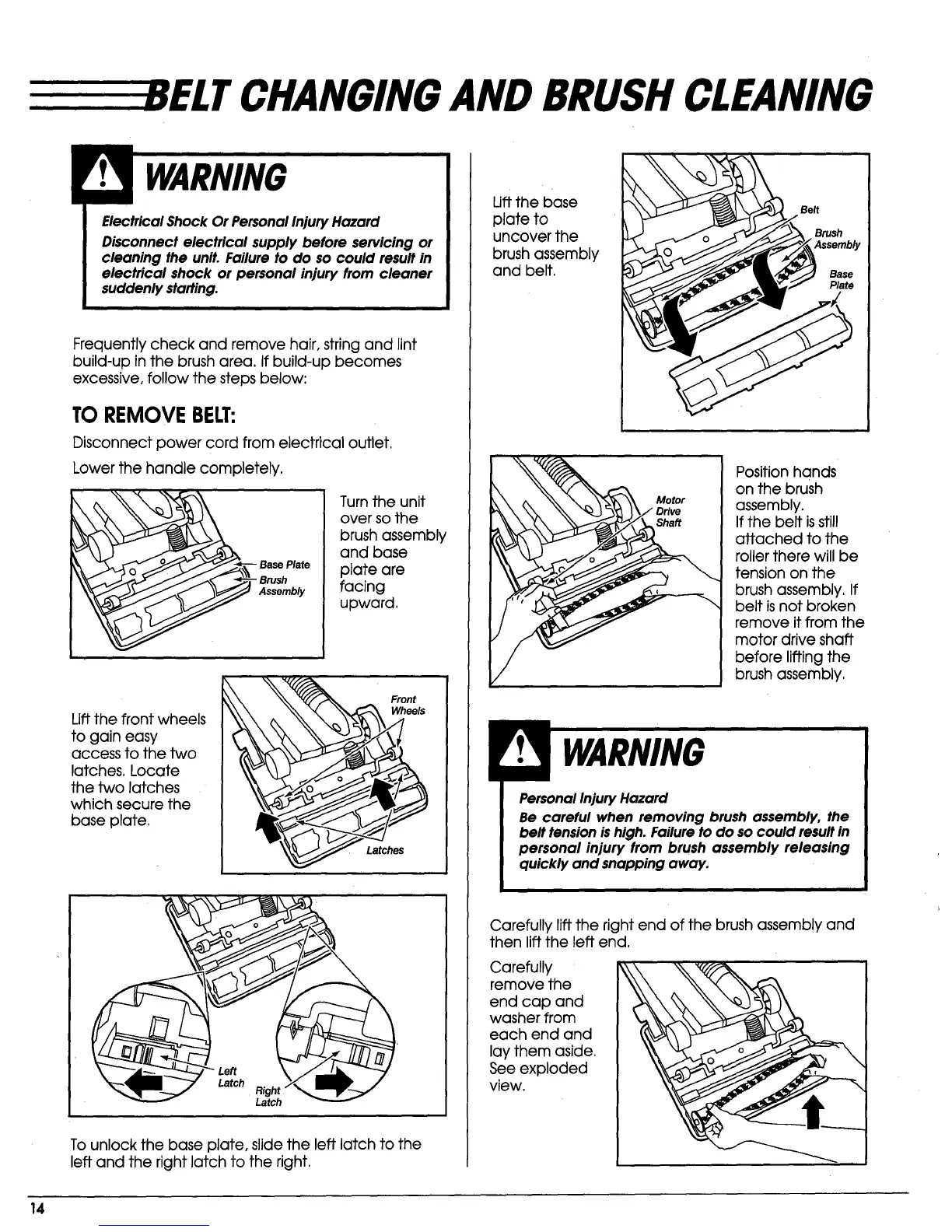

,TCHANGINGAND BRUSHCLEANING
Electrical Shock Or PersonalInjuryHazard
Disconnect electrical supply before servicing or
cleaning the unit. Failure to do so could result in
electrical shock or personal injury from cleaner
suddenly starting.
Frequently check and remove hair. string and lint
build-up in the brush area. If build-up becomes
excessive, follow the steps below:
TO REMOVEBELT:
Disconnect power cord from electrical outlet.
Lower the handle completely.
1Turn the unit
| over so the
| brush assembly
__.,___ | and base
_XP'4___.-_"=:Piat° I ploteare
\_....--_'/,.--'_A.en,b_yl facing
front wheels _\
Uftthe _x__
Wheels
to gain easy
access to the two
.atches. Locate __I.__
the two latches
which secure the
beverage
Left
Latch
Right '
Latch
To unlock the base plate, slide the left latch to the
left and the right latch to the right,
Lift the base
plate to
uncover the
brush assembly
and belt.
Belt
Position hands
on the brush
DriM°;°r assembly.
aft If the belt isstill
attached to the
roller there will be
tension on the
€
I ,,_F.,,F '_ brush assembly. If
I / ' ._ _jr_ \ belt is not broken
I / _ remove it from the
_" /" V_ motor drive shaft
| / before lifting the
V brush assembly.
PersonalInjuryHazard
Be careful when removing brush assembly, the
belt tensionishigh. Failure to do so could resultin
personal injury from brush assembly releasing
quickly and snapping away,
Carefully lift the right end of the brush assembly and
then lift the left end.
Carefully
remove the
end cap and
washer from
each end and
lay them aside.
See exploded
view.
