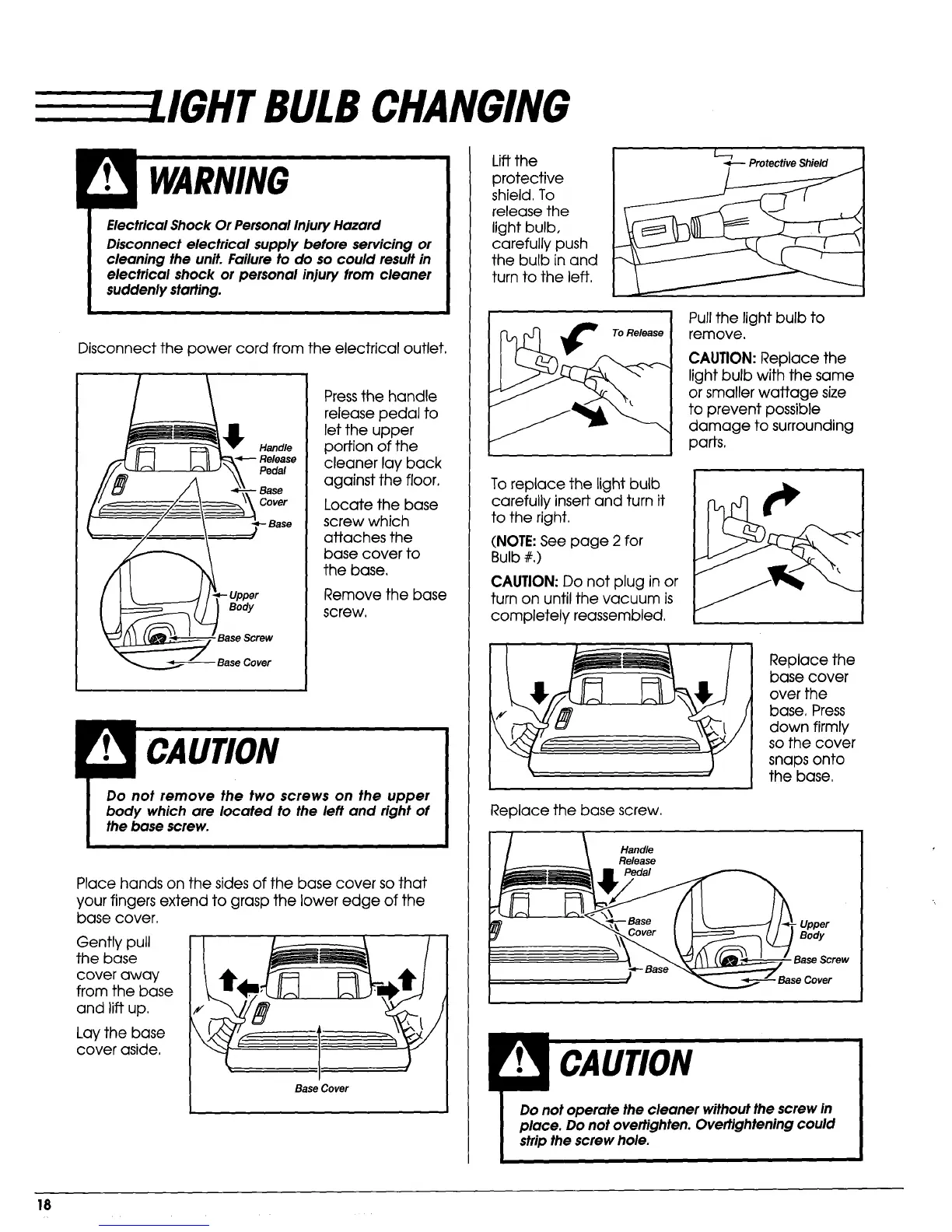

BULBCHANGING
Electrical Shock Or Personal Injury Hazard
Disconnect electrical supply before servicing or
cleaning the unit. Failure to do so could result in
electrical shock or personal injury from cleaner
suddenly starting.
Disconnect the power cord from the electrical outlet.
_ !__ Handle
# I I II _ Release
1/7.... .... \\ ped.,
/ _/ / I _ Base
I [ _ A /'.<-Upper
_ Base Screw
__-_---_ Base Cover
Pressthe handle
release pedal to
let the upper
portion of the
cleaner lay back
against the floor.
Locate the base
screw which
attaches the
base cover to
the base.
Remove the base
screw.
Place hands on the sides of the base cover so that
your fingers extend to grasp the lower edge of the
base cover,
Gently pull
the base
cover away
from the base
and lift up,
Lay the base
cover aside,
/
Base Cover
Lift the
protective
shield. To
release the
light bulb.
carefully push
the bulb in and
turn to the left.
To Release
Pull the light bulb to
remove.
CAUTION: Replace the
light bulb with the same
or smaller waftage size
to prevent possible
damage to surrounding
parts,
To replace the light bulb
carefully insert and turn it
to the right.
(NOTE: See page 2 for
Bulb #.)
CAUTION: Do not plug in or
turn on until the vacuum is
completely reassembled.
Replace the
base cover
over the
base, Press
down firmly
so the cover
snaps onto
the base.
Replace the base screw.
Handle
Release
Pedal
,Upper
Body
- Base Screw
Cover
Do not operate the cleaner without the screw in
place. Do not overtighten. Overtightening could
strip the screw hole.
18
