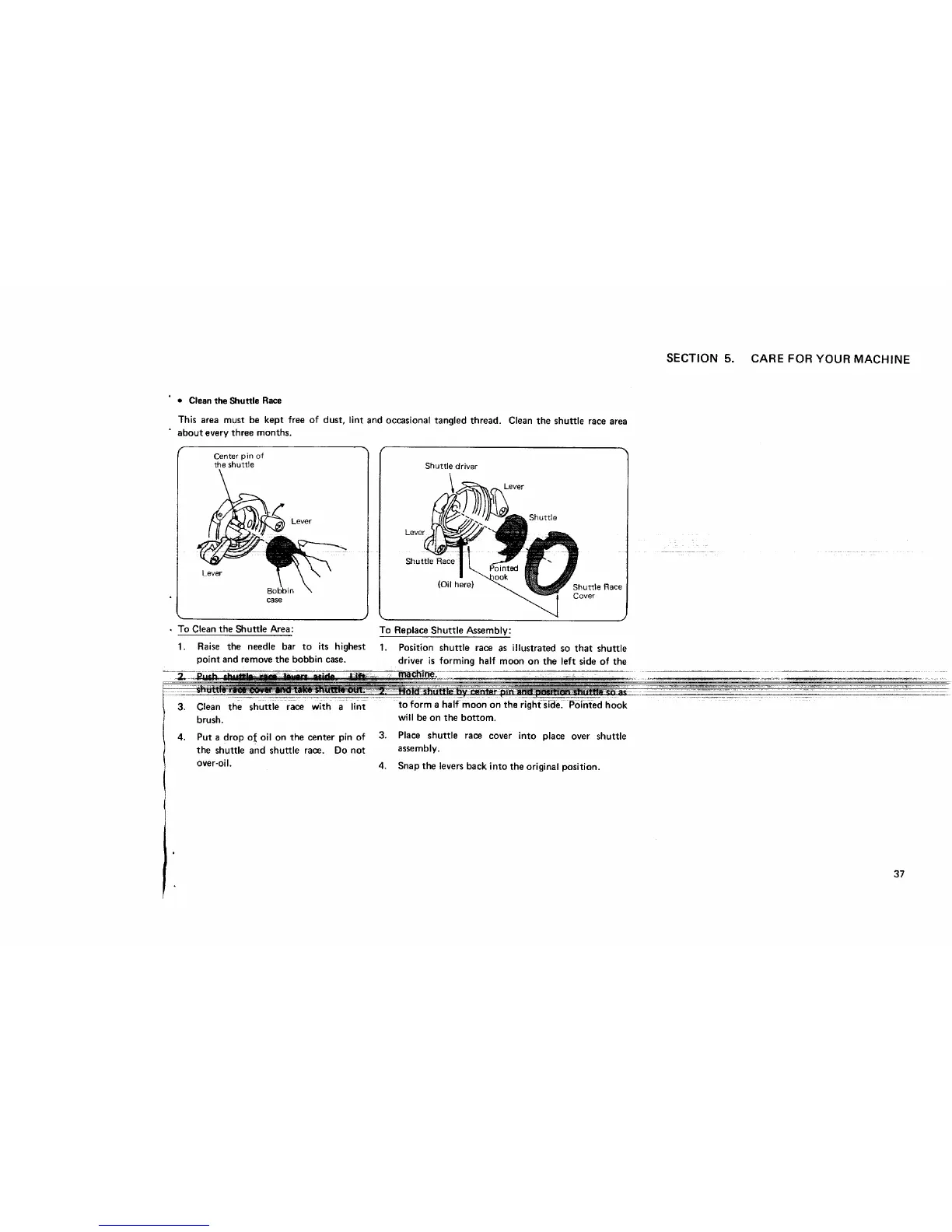

SECTION 5. CARE FOR YOUR MACHINE
" • Clean the Shuttle Race
This area must be kept free of dust, lint and occasional tangled thread. Clean the shuttle race area
• about every three months.
Center pin of
the shuttle Shuttle driver
Lever
Lever
Lever
Bobbin
case
. To Clean the Shuttle Area:
1. Raise the needle bar to its highest
point and remove the bobbin case.
CevGr i
Shuttle
Shuttle Race
(Oil here)
Shuttle Race
Cover
To Replace Shuttle Assembly:
1. Position shuttle race as illustrated so that shuttle
driver is forming half moon on the left side of the
Z: -- :::c :ccc : [ ' t :_ :=::_ "C7C7 "
3. Clean the shuttle race with a lint to form a half moon on the rightside_ Pointed hook
brush, will be on the bottom.
4. Put a drop ot oil on the center pin of 3. Place shuttle race cover into place over shuttle
the shuttle and shuttle race. Do not assembly.
over-oil. 4. Snap the levers back into the original position.
