Kenmore 1240 - Oiling Top and Face Cover Plates; Oiling the Underside

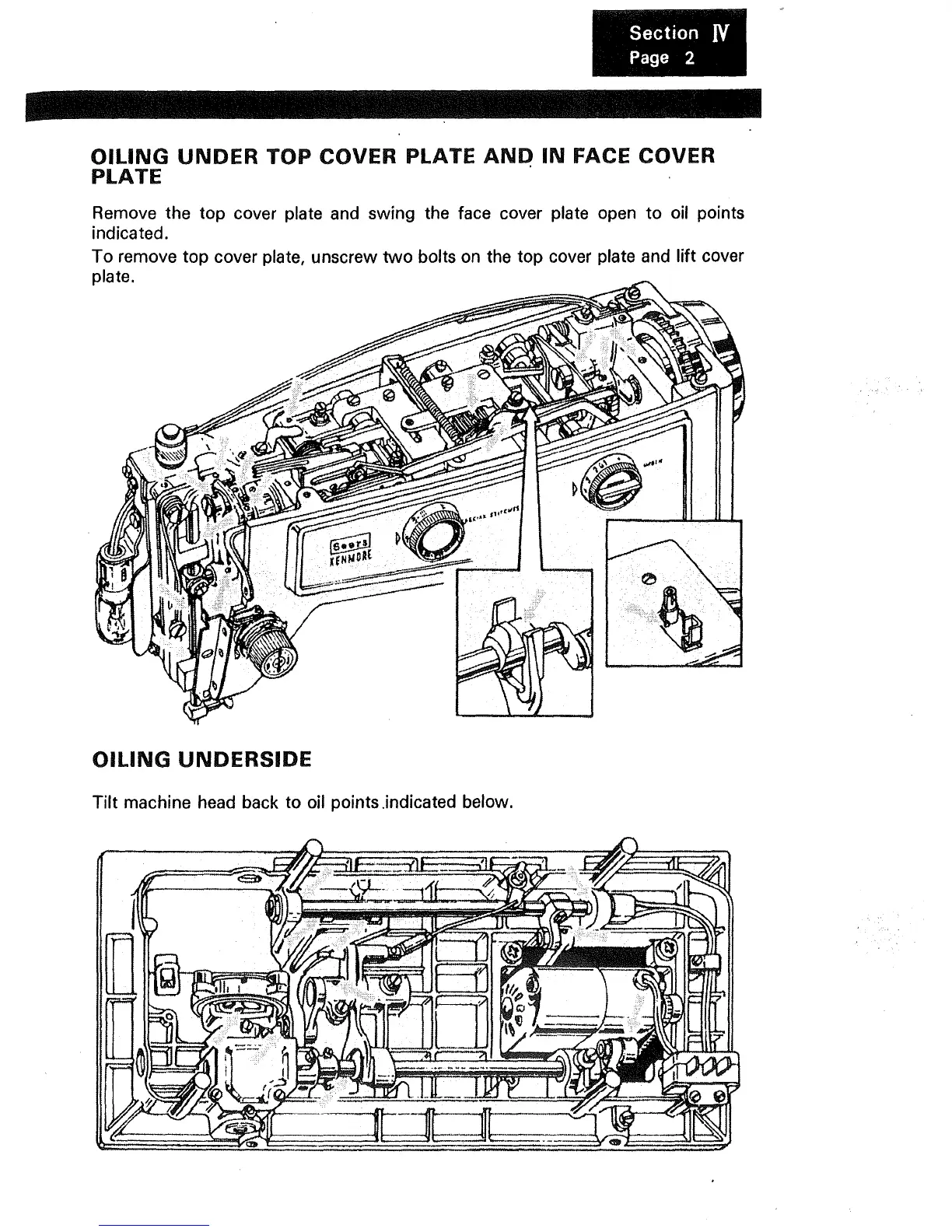

OILING UNDER TOP COVER PLATE AND IN FACE COVER
PLATE
Remove the top cover plate and swing the face cover plate open to oil points
indicated.
To remove top cover plate, unscrew two bolts on the top cover plate and lift cover
plate.
OILING UNDERSIDE
Tilt machine head back to oil points .indicated below.
