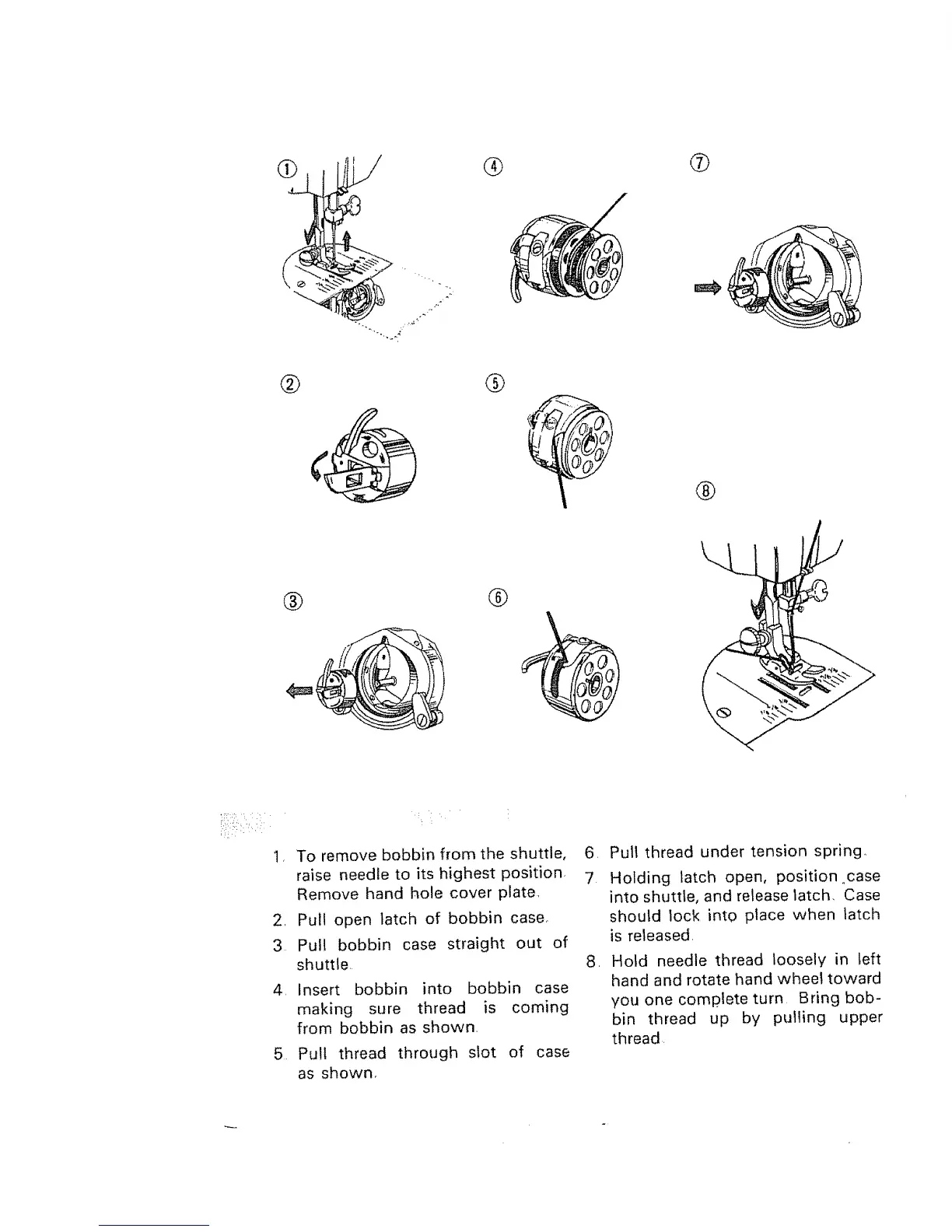

1, To remove bobbin from the shuttle,
raise needle to its highest position.
Remove hand hole cover plate,,
2, Pull open latch of bobbin case.
3 Pull bobbin case straight out of
shuttle.
,
•
Insert bobbin into bobbin case
making sure thread is coming
from bobbin as shown.
Pull thread through slot of case
as shown r
7
Pull thread under tension spring.
Holding latch open, positionocase
into shuttle, and release latch, Case
should lock into place when latch
is released,
8, Hold needle thread loosely in left
hand and rotate hand wheel toward
you one complete turn Bring bob-
bin thread up by pulling upper
thread
