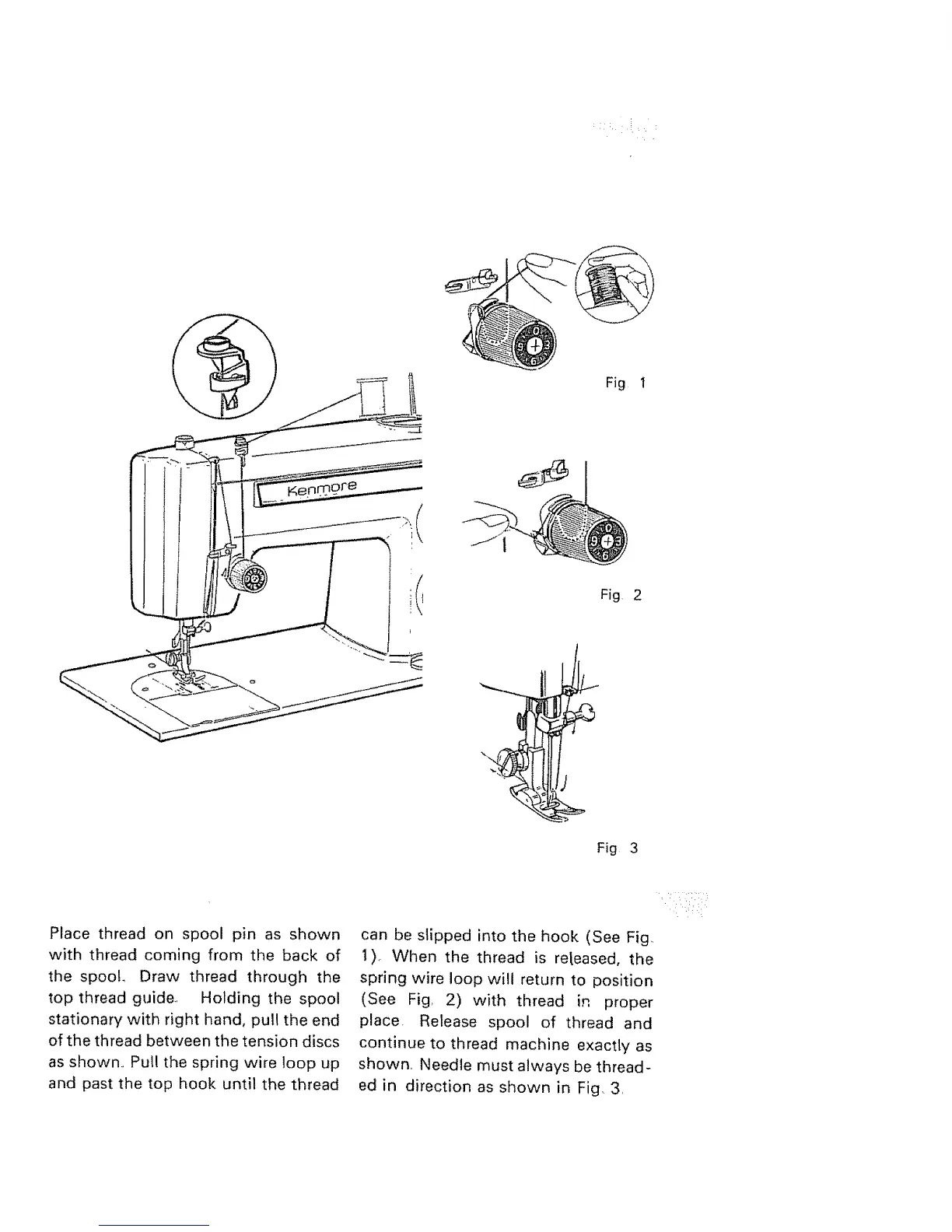

Fig 1
Fig 2
Fig 3
Place thread on spool pin as shown
with thread coming from the back of
the spool_ Draw thread through the
top thread guide.. Holding the spool
stationary with right hand, pull the end
of the thread between the tension discs
as shown.. Pull the spring wire loop up
and past the top hook until the thread
can be slipped into the hook (See Fig,
1)_ When the thread is rejeased, the
spring wire loop will return to position
(See Fig, 2) with thread in proper
place. Release spool of thread and
continue to thread machine exactly as
shown Needle must always be thread-
ed in direction as shown in Fig, 3,
