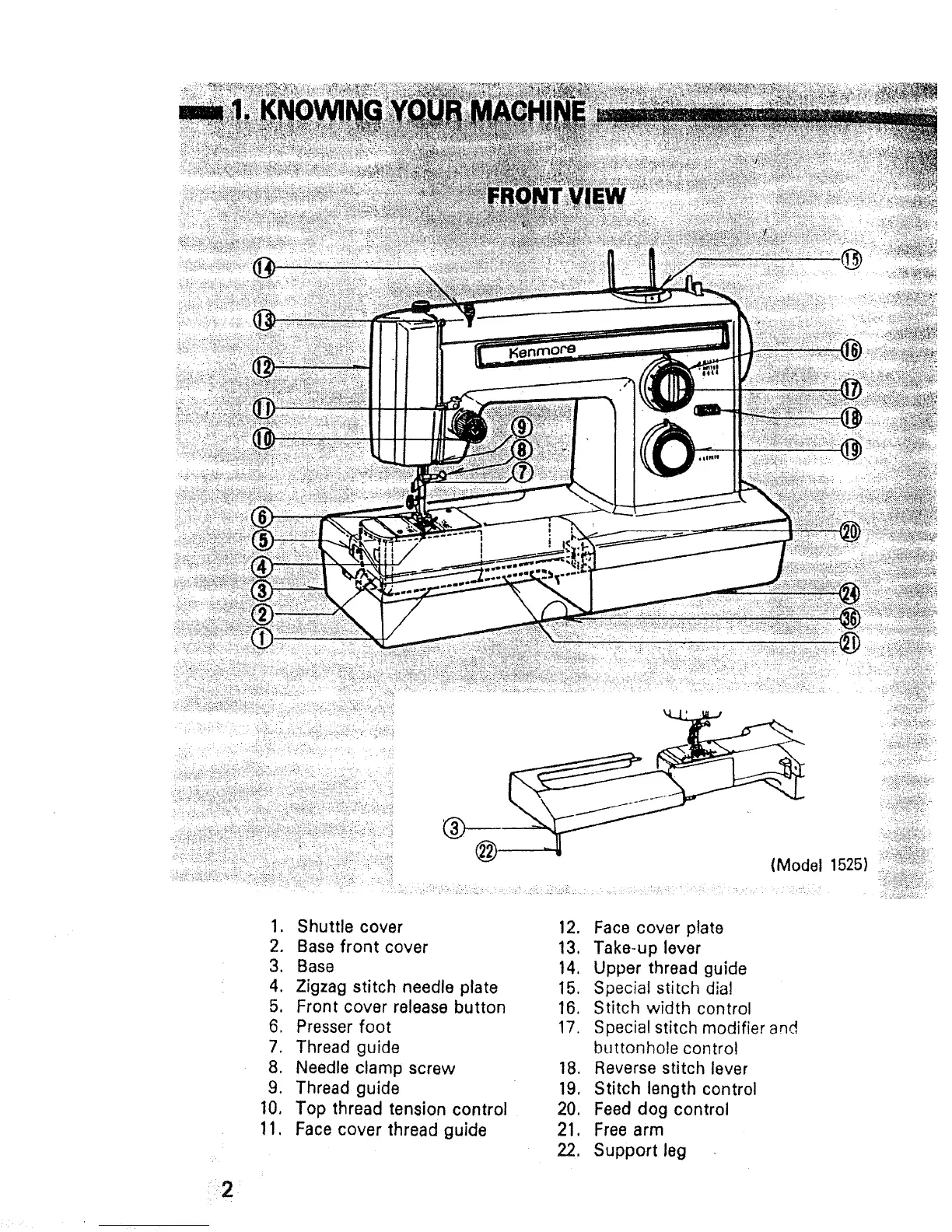

1. Shuttle cover 12. Face cover plate
2. Base front cover 13, Take-up lever
3. Base 14, Upper thread guide
4. Zigzag stitch needle plate 15, Special stitch dia!
5, Front cover release button 16. Stitch width control
6. Presser foot 17. Special stitch modifier and
7. Thread guide buttonhole control
8, Needle clamp screw 18. Reverse stitch lever
9. Thread guide 19. Stitch length control
10. Top thread tension control 20, Feed dog control
11, Face cover thread guide 21. Free arm
22. Support leg
