Kenmore 1357 - 4. Caring for the Machine (Continued); Machine Care - Oiling Under Arm Cover Plate

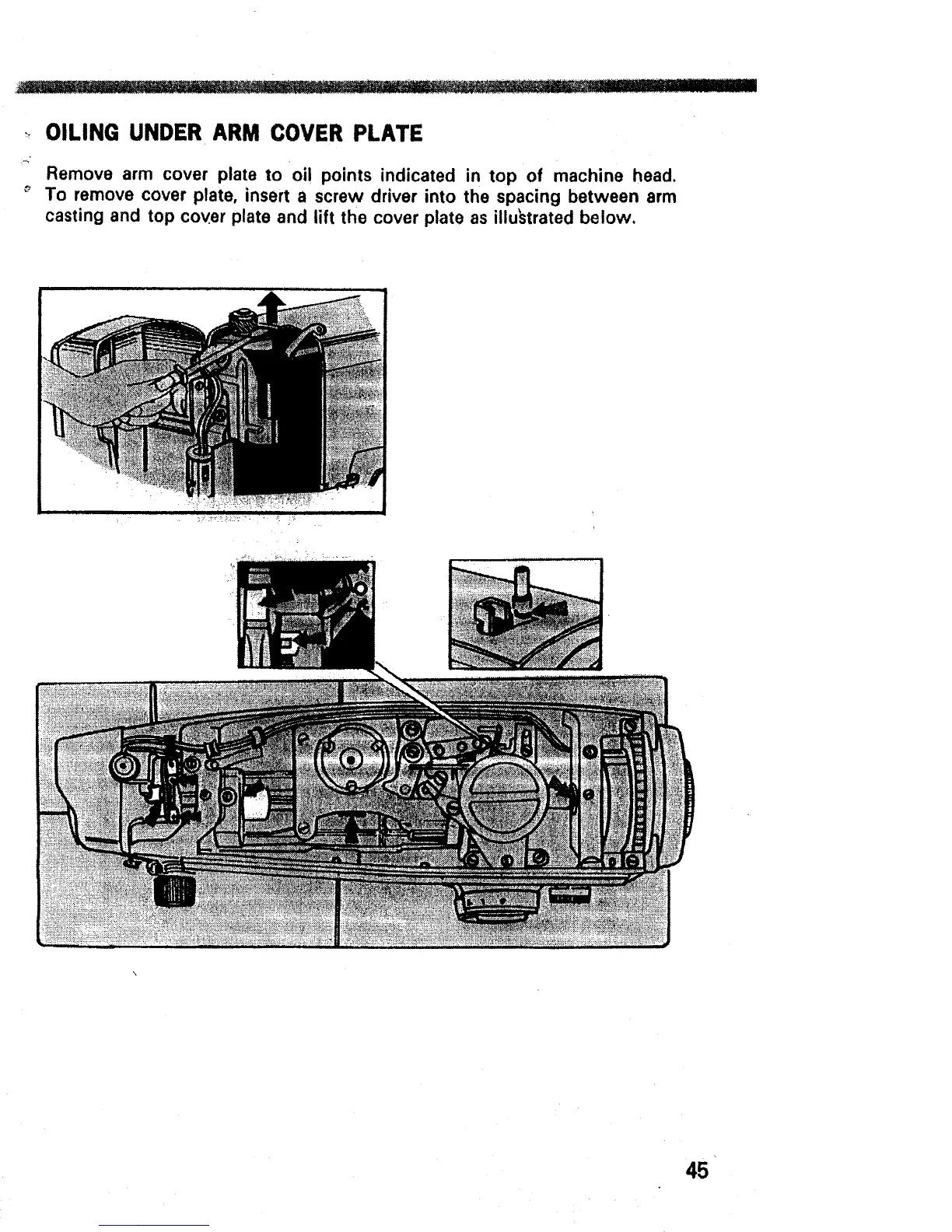

OILING UNDER ARM COVER PLATE
Remove arm cover plate to oil points indicated in top of machine head,
To remove cover plate, insert a screw driver into the spacing between arm
casting and top cover plate and lift the cover plate as illustrated below.
45
