Kenmore 1357 - 4. Caring for the Machine (Continued); Machine Care - Oiling Underside

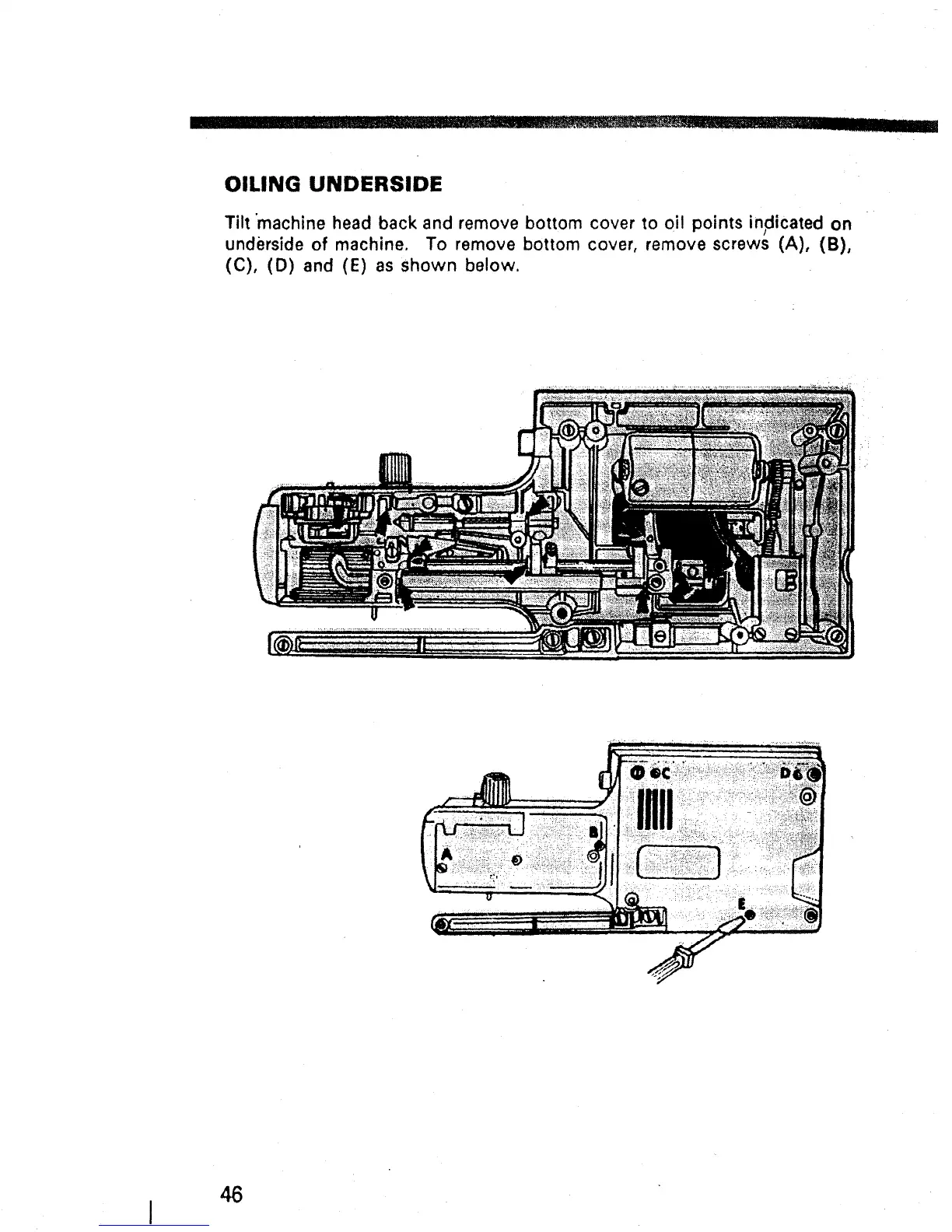

OILING UNDERSIDE
Tilt "machine head back and remove bottom cover to oil points in_dicated on
undi_rside of machine. To remove bottom cover, remove screws (A), (B),
(C), (D) and (E) as shown below.
46
