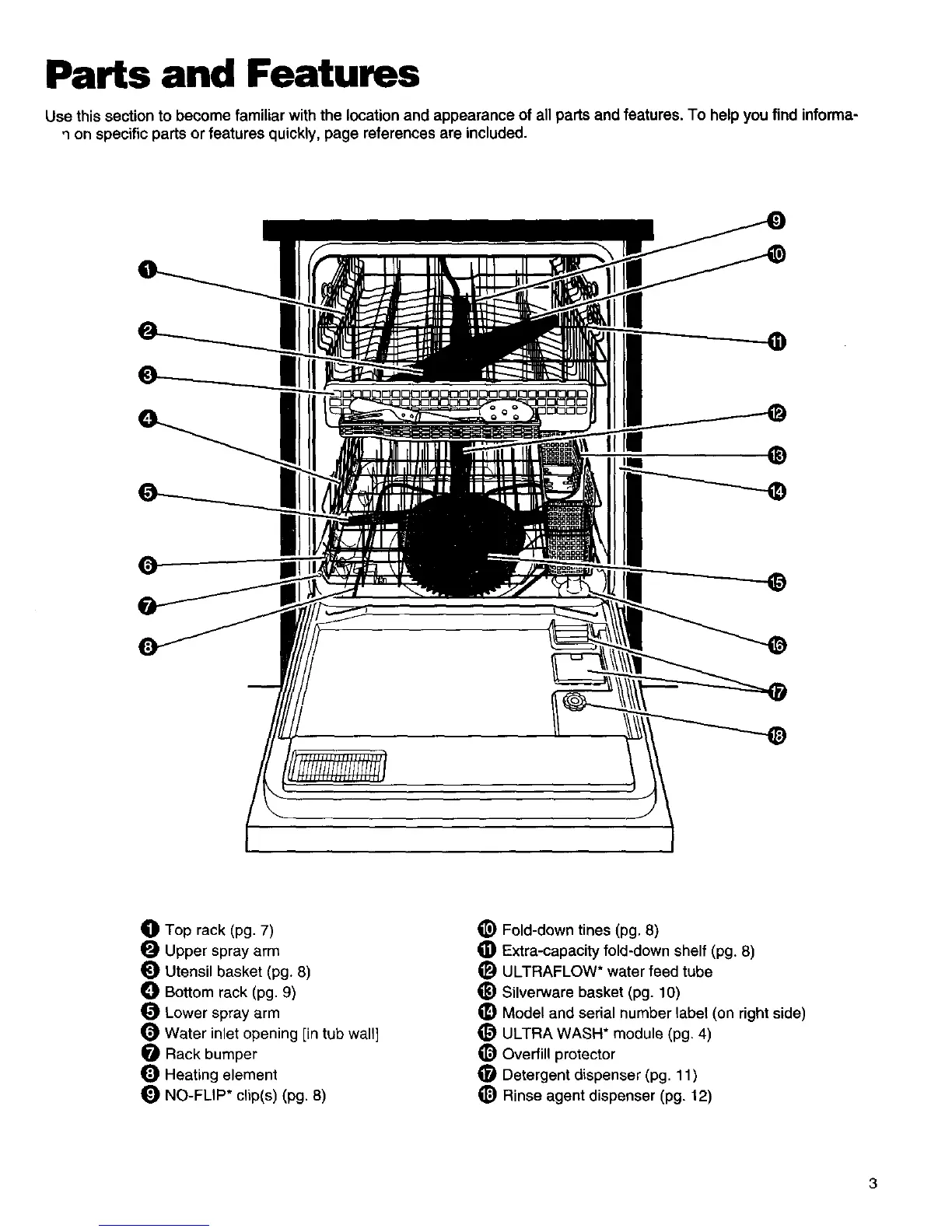

Parts and Features
Use this section to become familiar with the location and appearance of all parts and features. To help you find informa-
q on specific parts or features quickly, page references are included.
®
O Top rack (pg. 7)
O Upper spray arm
Utensil basket (pg. 8)
_) Bottom rack (pg. 9)
Lower spray arm
Water inlet opening [in tub wall]
Rack bumper
Heating element
NO-FLIP* clip(s) (pg. 8)
_) Fold-down tines (pg. 8)
Extra-capacity fold-down shelf (pg. 8)
_) ULTRAFLOW* water feed tube
_) Silverware basket (pg. 10)
_) Model and serial number tabel (on right side)
_) ULTRA WASH* module (pg. 4)
_) Overfill protector
O Detergent dispenser (pg. 11)
_) Rinse agent dispenser (pg. 12)
3
