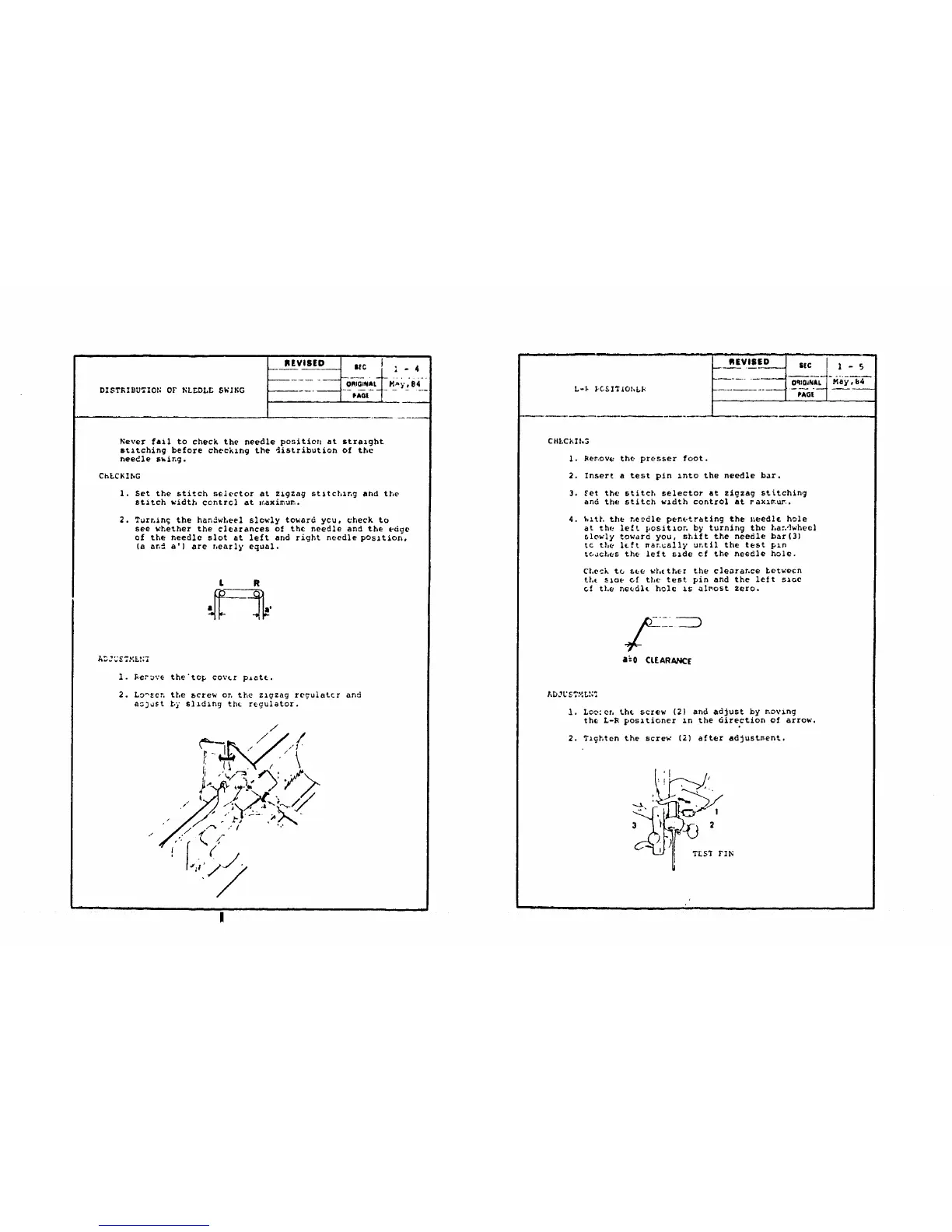

DISTRIBUTION OF NLEDLE SWING
REVISED
s_c I
I ° 4
PAGE '
Never fail to check the needle position at straight
stitching before checking the distribution Of the
needle s_ing.
ChLCKZhG
I. Set the stitch selector at zigzag stltchlng and the
stitch width contrcl at :_,aximu_.
2. Turning the han_wheel slowly toward ycu, check to
see whether the clearances of the needle and the edge
of the needle slot at left and right needle posltion,
(a an_ a') are nearly equal.
L R
• _- Ia'
ADJUSTML_;_
I. _erDve the'top cover p_at_.
2. Lo_sen the screw on the zigzag reculatcr and
a_uSt by sliding th_ r_gulator.
/
......................... , ,=,,
I I
L-_ _CSI_LOhL_
REVISED
t SIC
ORIGINAL
PAGE
CHiCl_lh3
i. _e_ove the presser foot.
2. Insert a test pin into the needle bar.
3. Set the stitch selector at zigzag stitching
and the stitch width control at raxi_.ur..
4.
_ith the needle penetrating the needle hole
at the left posit_on by turning the hanqwheel
slowly toward you, shift the needle bar(3)
tc the left _ar.ually until the test pin
%oJches the left side cf the needle hole.
Check to see wh_ther the clearance between
th_ sloe of the test pin and the left sloe
of t].e ne_dl_ hole is almost zero.
a_o CLEARANC[
ADJUSTMLN:
I. Loe:en th_ screw (2) and adjust by ,.ovlng
the L-B posztioner In the direction of arrow.
2. Tzghten the screw [2) after adjustment.
r
i Jill II
