EN-2
INSTALLATION INSTRUCTIONS

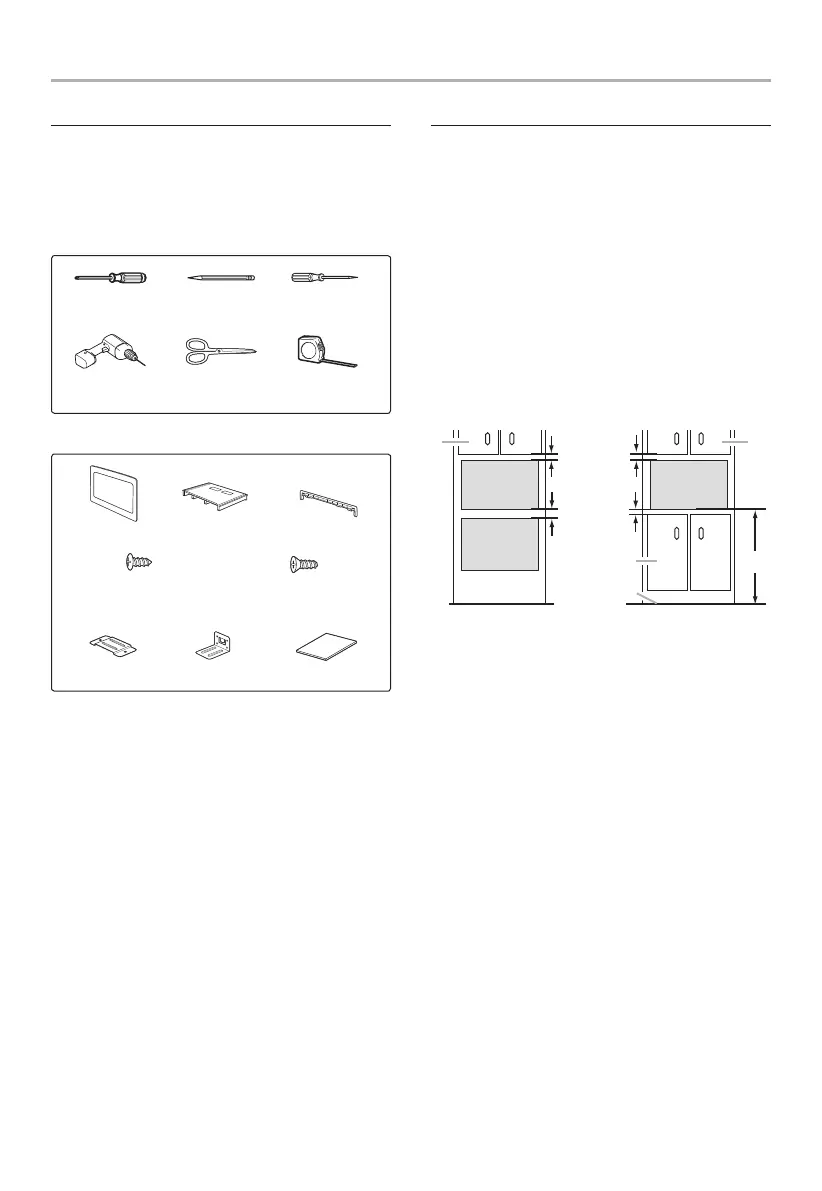

Tools Needed
Gather the required tools and parts before starting
installation.
Read and follow the instructions provided with any tools listed
here.
Parts Supplied (not shown to scale)
#2 Phillips
screwdriver
Pencil Awl or punch
Trim Frame Bottom Duct Top Bracket
Phillips Round-Head Screws
24 (21 or 22 required for
installation)
Phillips Flat-Head Screws
5 (4 required for installation)
Anti-Tip Bracket Bottom Bracket Template
Drill with 7⁄64” bit
or #35
Tape measure Scissors (optional)
3"
(7.6 cm)
B
B
D
36"
(91.4 cm)
C
2"
(5.1 cm)
2"
(5.1 cm)
1
"
(4.0 cm)
A
E
9/16
A. Upper cabinet
B. Microwave oven cutout
C. Lower oven cutout
D. Lower cabinets
E. Floor
Location RequirementsTools and Parts
The microwave oven may be installed over a built-in wall
oven. Make sure there is a minimum of 3'' (7.6cm) between
the top of the lower oven cutout and the microwave oven
cutout floor. See Fig. 1 below
The microwave oven may also be installed in a cabinet by
itself(without a built-in oven below). For best usability access,
there should be a minimum of 36'' (91.4) from the floor to the
microwave oven cutout floor. Allow a clearance of at least
1-9/16''(4.0cm) below the microwave oven cutout. See Fig.2
below.
In each case, there must be a minimum of 2''(5.1cm) between
the cutout opening and a cabinet or surface above. See both
figures below.
Fig. 1 Fig. 2
