Kenmore 22009 - Required Cutout Dimensions; Trim Kit Frame Dimensions

EN-3
1" overlap
Depth
Height
Width
3” min.
1” Clearance
beyond Trim Frame
(on all sides)
27" Models : ⅝" overlap
30" Models : 2-¼" overlap
1 ⅜" overlap
CAUTION
This trim kit uses air flow from the top, bottom and
sides of the trim frame. Blocking the air flow can cause
the microwave to function improperly and may cause
damage to the microwave.
Allow a 1” clearance beyond the edge of the Trim
Frame to provide proper air flow.

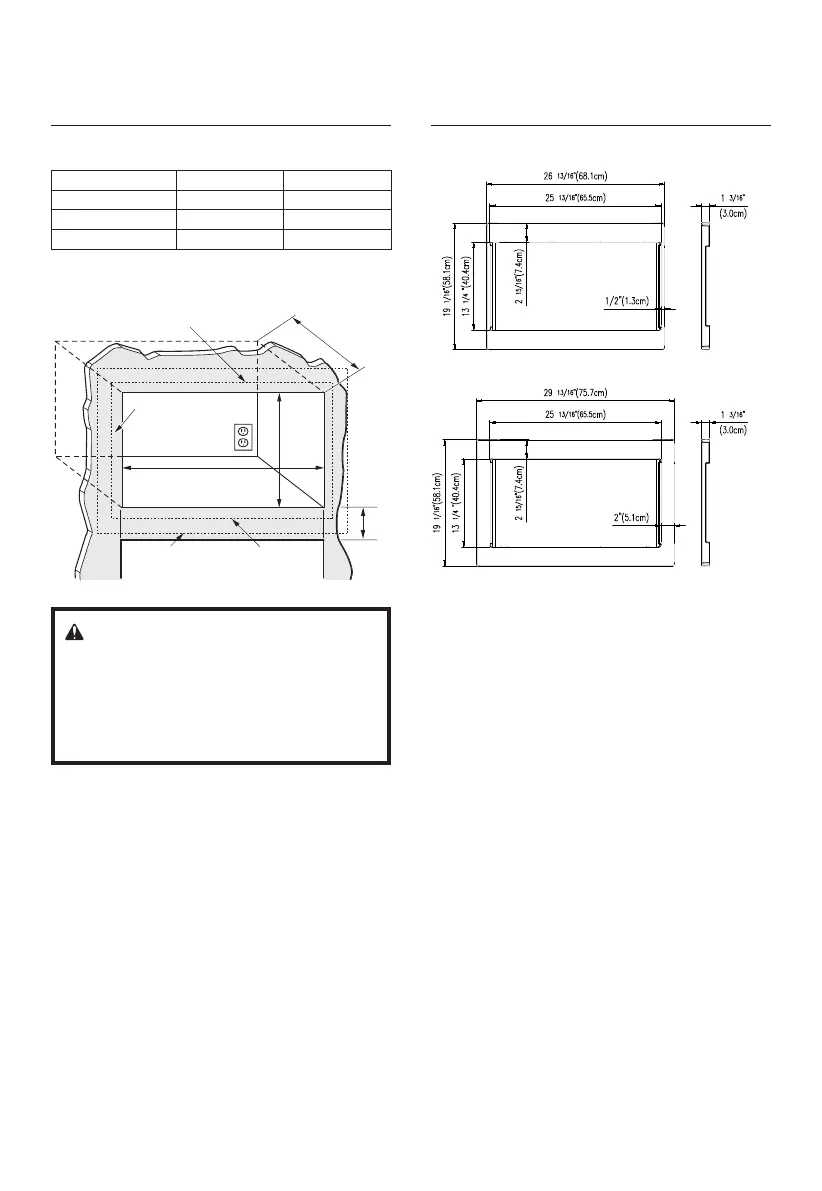

Required Cutout Dimensions Trim Kit Frame Dimensions
Models 27” 30”
Height 16¾” 16¾”
Width 25½” 25½”
Depth (min.)* 19½” or 22” 19½” or 22”
* Min. depth with receptacle outside cabinet 19½”
Min. depth with receptacle inside cabinet 22”
The Trim Frame will overlap the cutout edges as listed below.
Additionally, allow one inch clearance beyond Trim Frame
edges on all sides for proper airflow.
26-
13
/
16
" width frame:
1" at top, 1-⅜" at bottom, ⅝" on each side
29-
13
/
16
" width frame:
1" at top, 1-⅜" at bottom, 2-¼" on each side
27"
Model
30"
Model
