SEWING MACHINE DIV. 20 MODEL 385. 15108200

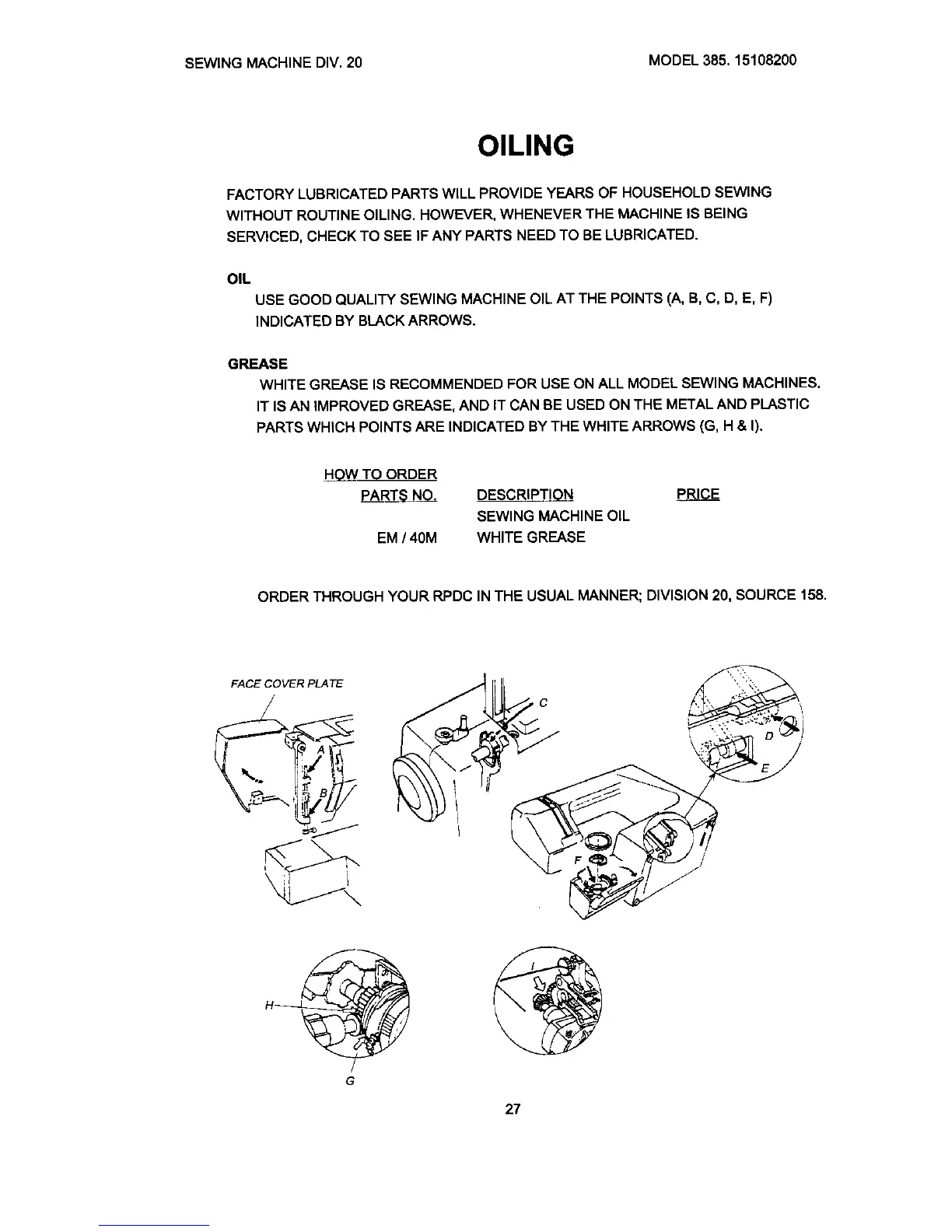

OILING
FACTORY LUBRICATED PARTS WILL PROVIDE YEARS OF HOUSEHOLD SEWING
WITHOUT ROUTINE OILING. HOWEVER, WHENEVER THE MACHINE IS BEING
SERVICED, CHECK TO SEE IF ANY PARTS NEED TO BE LUBRICATED.
OIL
USE GOOD QUALITY SEWING MACHINE OIL AT THE POINTS (A, B, C, D, E, F)
INDICATED BY BLACK ARROWS.
GREASE
WHITE GREASE IS RECOMMENDED FOR USE ON ALL MODEL SEWING MACHINES.
IT IS AN IMPROVED GREASE, AND IT CAN BE USED ON THE METAL AND PLASTIC
PARTS WHICH POINTS ARE INDICATED BY THE WHITE ARROWS (G, H & I).
HOW TO ORDER
PART_t_LO_ DESCRIPTION
SEWING MACHINE OIL
WHITE GREASE
EM / 40M
ORDER THROUGH YOUR RPDC INTHE USUALMANNER; DIVISION 20, SOURCE 158.
FACE COVER PLATE
G
27
