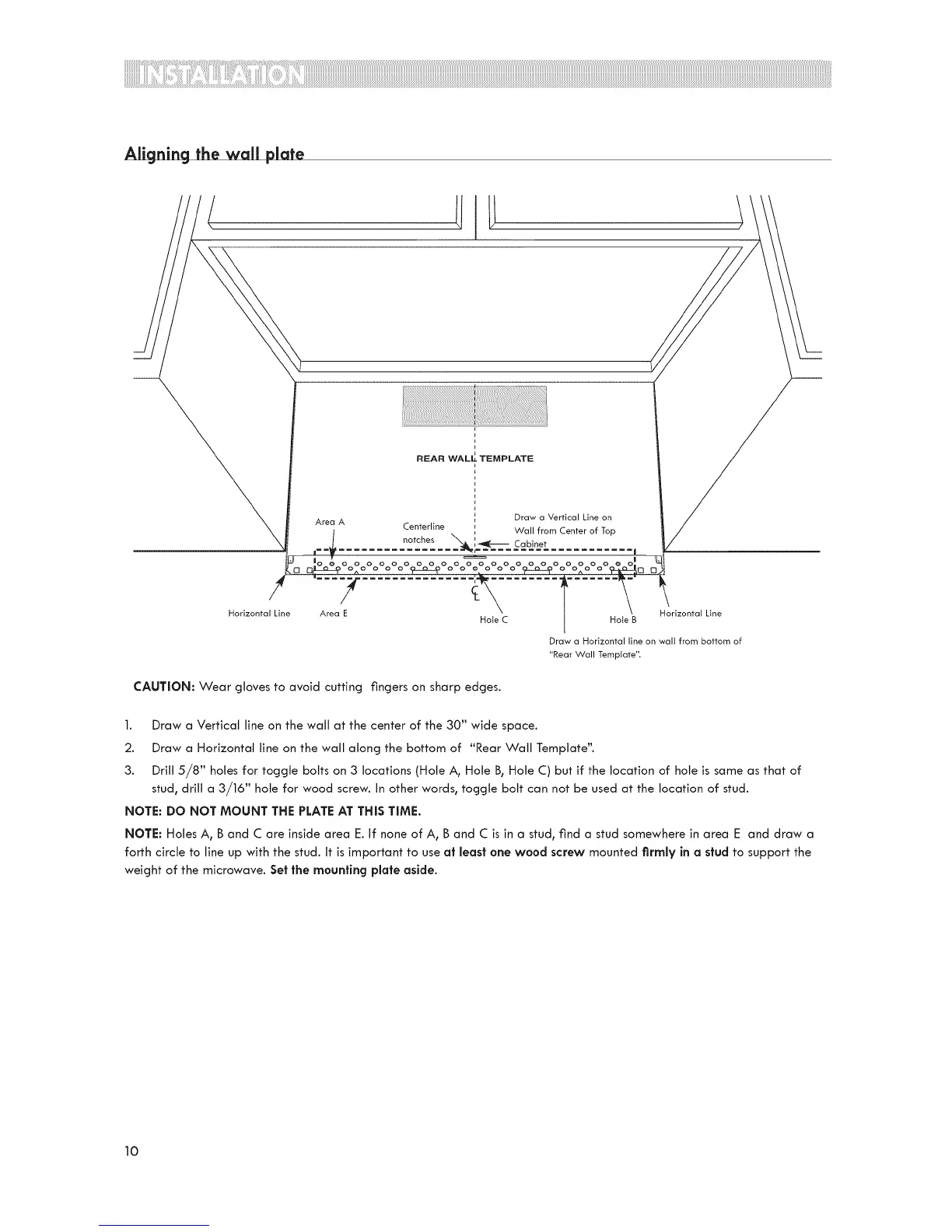

Aligning the wall plate
REAR WAL_TEMPLATE
Draw a Vertical Line on
Area A Centerllne Wall from Center of Top
notches "_ _*_---- Cabinet
_OoOoOoOoOoO _ ,OoOoOeOoOoOoO
7
Hodzontal Une Area E Horizontal Une
Hole C Hole B
Draw a Horizontal line on wall from bottom of
"Rear Wall Template".
CAUTION: Wear gloves to avoid cutting fingers on sharp edges.
1. Draw a Vertical line on the wall at the center of the 30" wide space.
2. Draw a Horizontal line on the wall along the bottom of "Rear Wall Template".
3. Drill 5/8" holes for toggle bolts on 3 locations (Hole A, Hole B, Hole C) but if the location of hole is same as that of
stud, drill a 3/16" hole for wood screw. In other words, toggle bolt can not be used at the location of stud.
NOTE: DO NOT MOUNT THE PLATE AT THiS TIME.
NOTE: Holes A, B and C are inside area E. If none of A, B and C is in a stud, find a stud somewhere in area E and draw a
forth circle to line up with the stud. It is important to use at least one wood screw mounted firmly in a stud to support the
weight of the microwave. Set the mounting plate aside.
10
