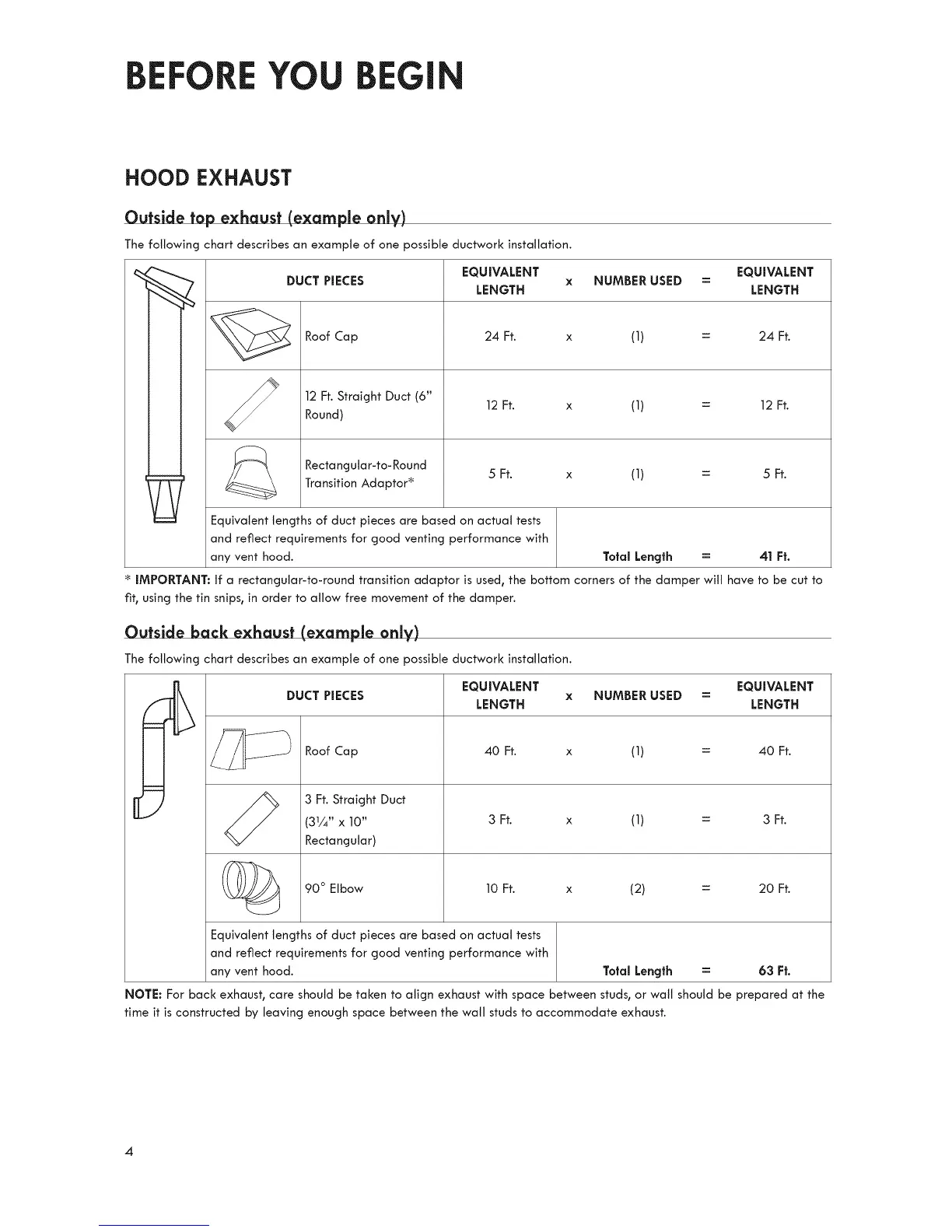

HOOD EXHAUST
Outside tap exhaust (example only_
The following chart describes an example of one possible ductwork installation.
DUCT PIECES EQUIVALENT EQUIVALENT
LENGTH x NUMBER USED = LENGTH
Roof Cap 24 Ft. x (1) = 24 Ft.
12 Ft. Straight Duct (6"
12 Ft. x (1) -- 12 Ft.
Round)
5 Ft. x (1) -- 5 Ft.
Rectangular-to-Round
_m Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests
and reflect requirements for good venting performance with
any vent hood. Total Length = 41 Ft.
* iMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to
fit, using the tin snips, in order to allow free movement of the damper.
Outside back exhaust (example only)
The following chart describes an example of one possible ductwork installation.
EQUIVALENT EQUIVALENT
(,_ DUCT PIECES LENGTH x NUMBER USED = LENGTH
Roof Cap 40 Ft. x (1) -- 40 Ft.
_ 3 Ft. Straight Duct
(31/4" x 10" 3 Ft. x (1) -- 3 Ft.
Rectangular)
Elbow 10 Ft. x (2) -- 20 Ft.
90 °
Equivalent lengths of duct pieces are based on actual tests
and reflect requirements for good venting performance with
any vent hood. Total Length = 63 Ft.
NOTE: For back exhaust t care should be taken to align exhaust with space between studs t or wall should be prepared at the
time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
