Kenmore 50 - WINDING THE BOBBIN

1

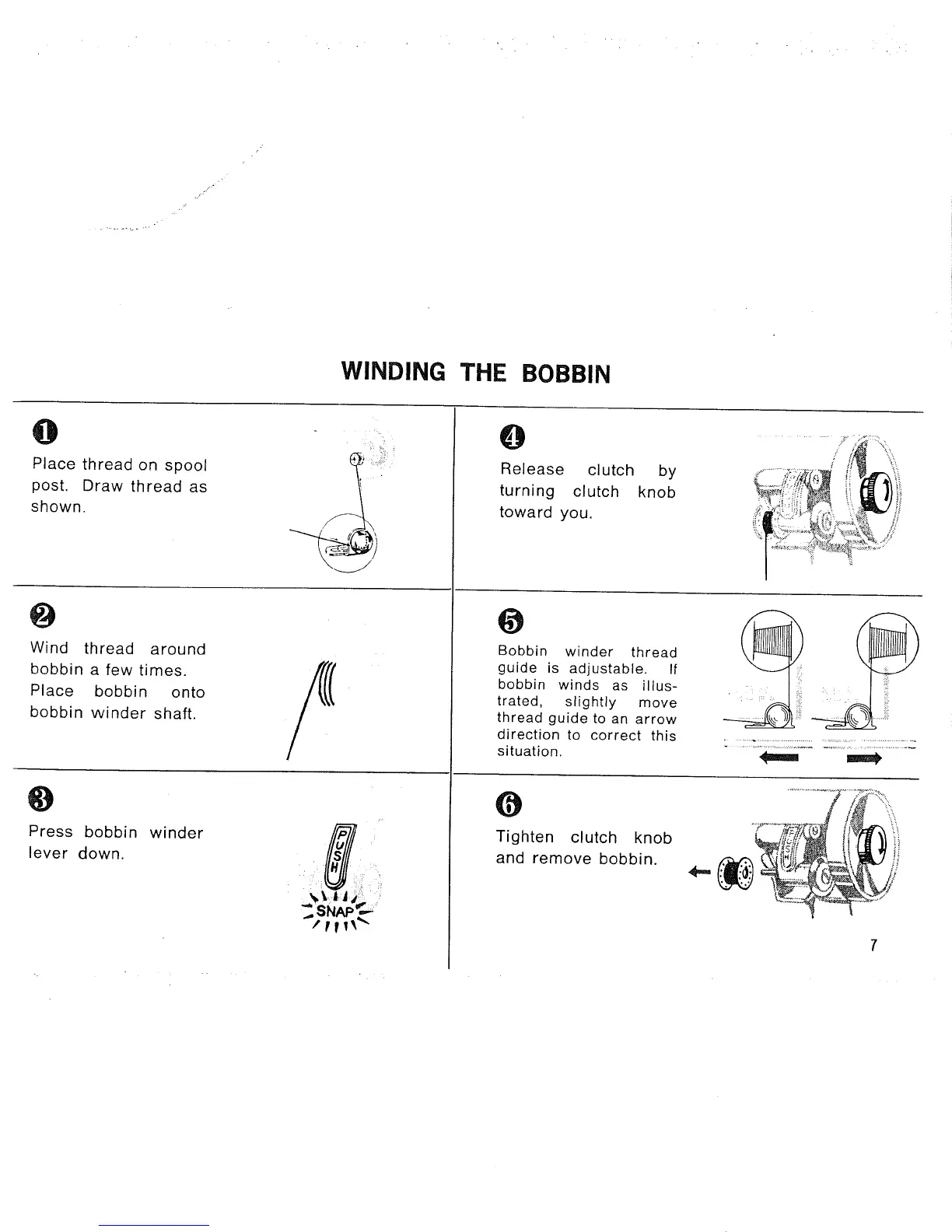

WINDING THE BOBBIN
0
Place thread on spool
post. Draw thread as
shown.
Wind thread around
bobbin a few times.
Place bobbin onto
bobbin winder shaft•
0
Press bobbin winder
lever down.
i_ _iiI
0
Release clutch by
turning clutch knob
toward you.
@
Bobbin winder thread
guide is adjustable• If
bobbin winds as illus-
trated, slightly move
thread guide to an arrow
direction to correct this
situation.
' 1:::, ,_%,,:,i_i_
Tighten clutch knob
and remove bobbin.
m
