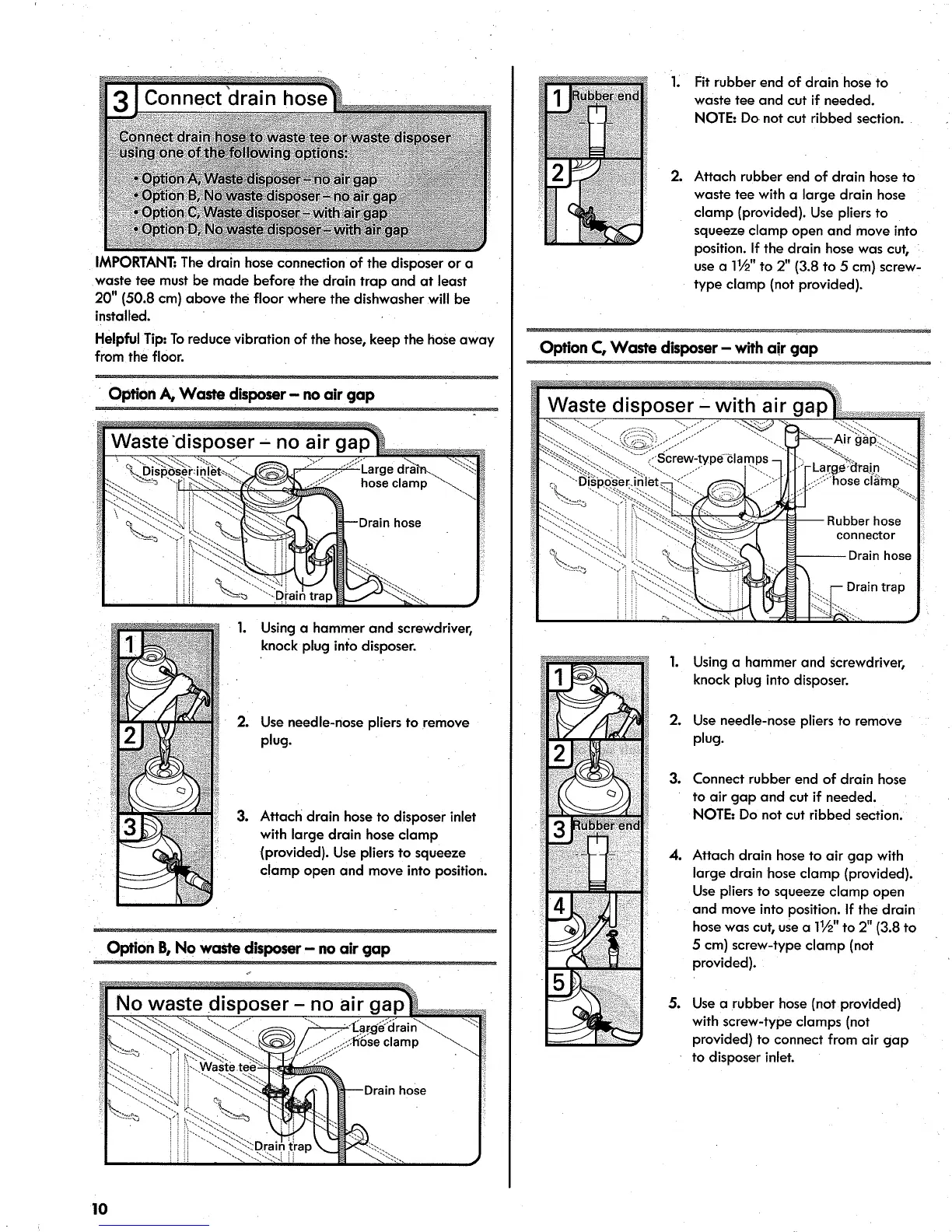

IMPORTANT- The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least
20" (50.8 cm) above the floor where the dishwasher will be
installed.
Helpful Tip: Toreduce vibration of the hose, keep the hoseaway
from the floor.
" Option A, Waste disposer- no air gap
lo
hose
Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
o
Attach drain hose to disposer inlet
with bargedrain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
Option B, No waste disposer- no air gap
I. Fit rubber end of drain hose to
waste tee and cut if needed.
NOTE: Do not cut ribbed section.
2. Attach rubber end of drain hose to
waste tee with a large drain hose
clamp (provided). Use pliers to
squeeze clamp open and move into
position. If the drain hose was cut, :
use a 11/2'' to 2" (3.8 to 5 cm) screw-
type clamp (not provided).
Option C, Waste disposer - with air gap
Waste disposer - with air ga. i ..............................................
I,
o
o
,
o
Using a hammer and Screwdriver,
knock plug into disposer.
Use needle-nose pliers to remove
plug.
Connect rubber end of drain hose
to air gap and cut if needed.
NOTE: Do not cut ribbed section.
Attach drain hose to air gap with
large drain hose clamp (provided).
Use pliers to squeeze clamp open
and move into position. If the drain
hose was cut, use a 11/2'' to 2" (3.8 to
5 cm) screw-type clamp (not
provided).
Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from air gap
to disposer inlet.
!0
