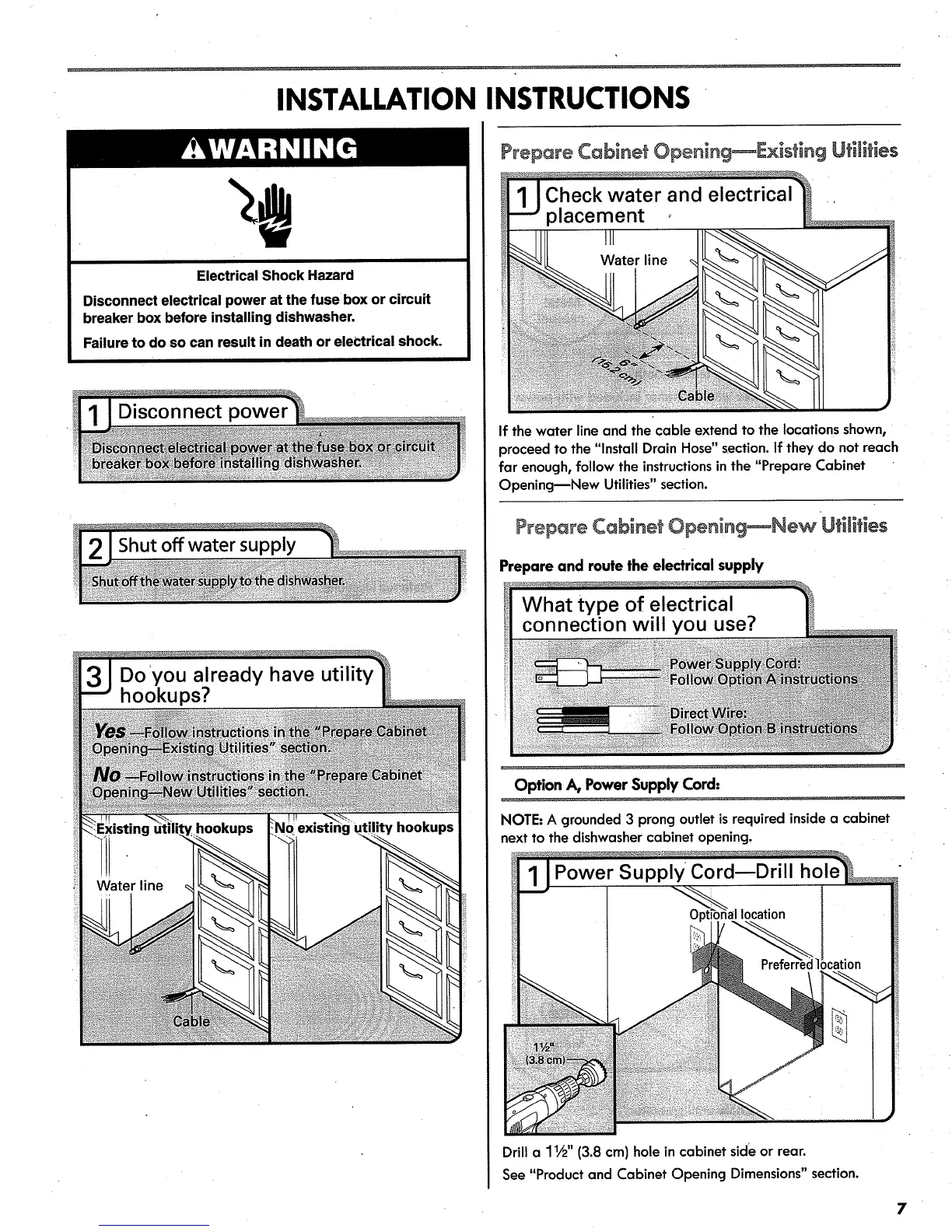

INSTALLATION INSTRUCTIONS
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit
breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.
Prepare Cabine_ Opening--Existing Utilities
If the water line and the cable extend to the locations shown,
proceed to the "Install Drain Hose" section. If they do not reach
far enough, follow the instructionsin the "Prepare Cabinet
OpeningmNew Utilities" section.
L
Prepare Cabine_ Opening_New Utilities
Prepare and route the electrical supply
Option A, Power Supply Cord.
NOTE:A grounded 3 prong outlet is required insidea cabinet
next to the dishwashercabinet opening.
Drill a 11,_,,(3.8 cm) hole in cabinet side or rear.
See "Product and Cabinet Opening Dimensions" section.
7
