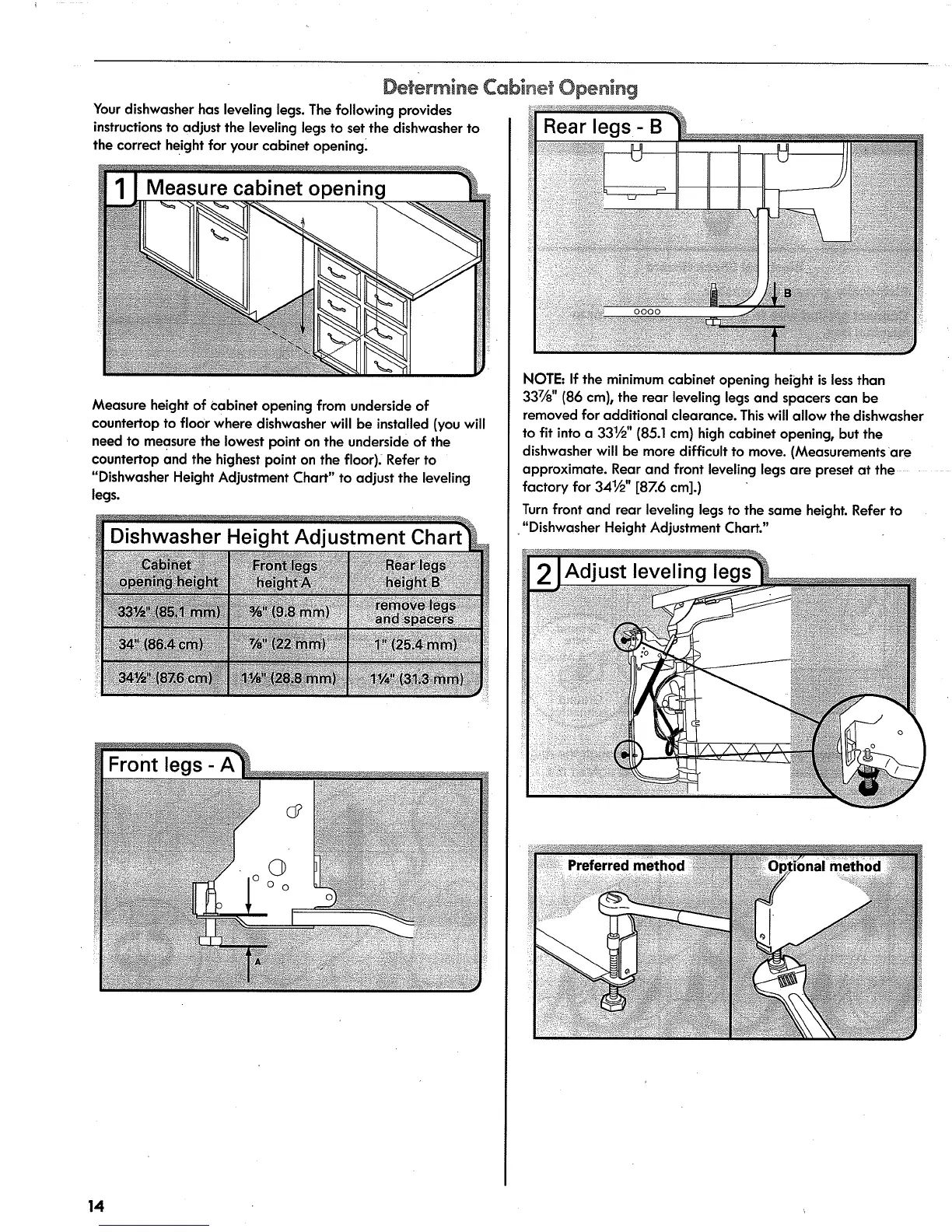

De ermine Cabine Opening
Your dishwasher has leveling legs. The following provides
instructionsto adjust the leveling legs to set the dishwasher to
the correct height for your cabinet opening.
Measure height of Cabinet opening from underside of
countertop to floor where dishwasher will be installed (you will
need to measure the lowest point on the underside of the
countertop and the highest point on the floor). Refer to
"Dishwasher Height Adjustment Chart" to adjust the leveling
legs.
NOTE: If the minimum cabinet opening height isless than
337_" (86 cm), the rear leveling legs and spacers can be
removed for additional clearance. Thiswill allow the dishwasher
to fit into a 331/_'' (85.1 cm) high cabinet opening, but the
dishwasher will be more difficult to move. (Measurements are
approximate. Rear and front leveling legs are preset at the
factory for 341/_" [87.6 cm].)
Turnfront and rear leveling legs to the same height. Refer to
o"Dishwasher Height Adjustment Chart."
14
