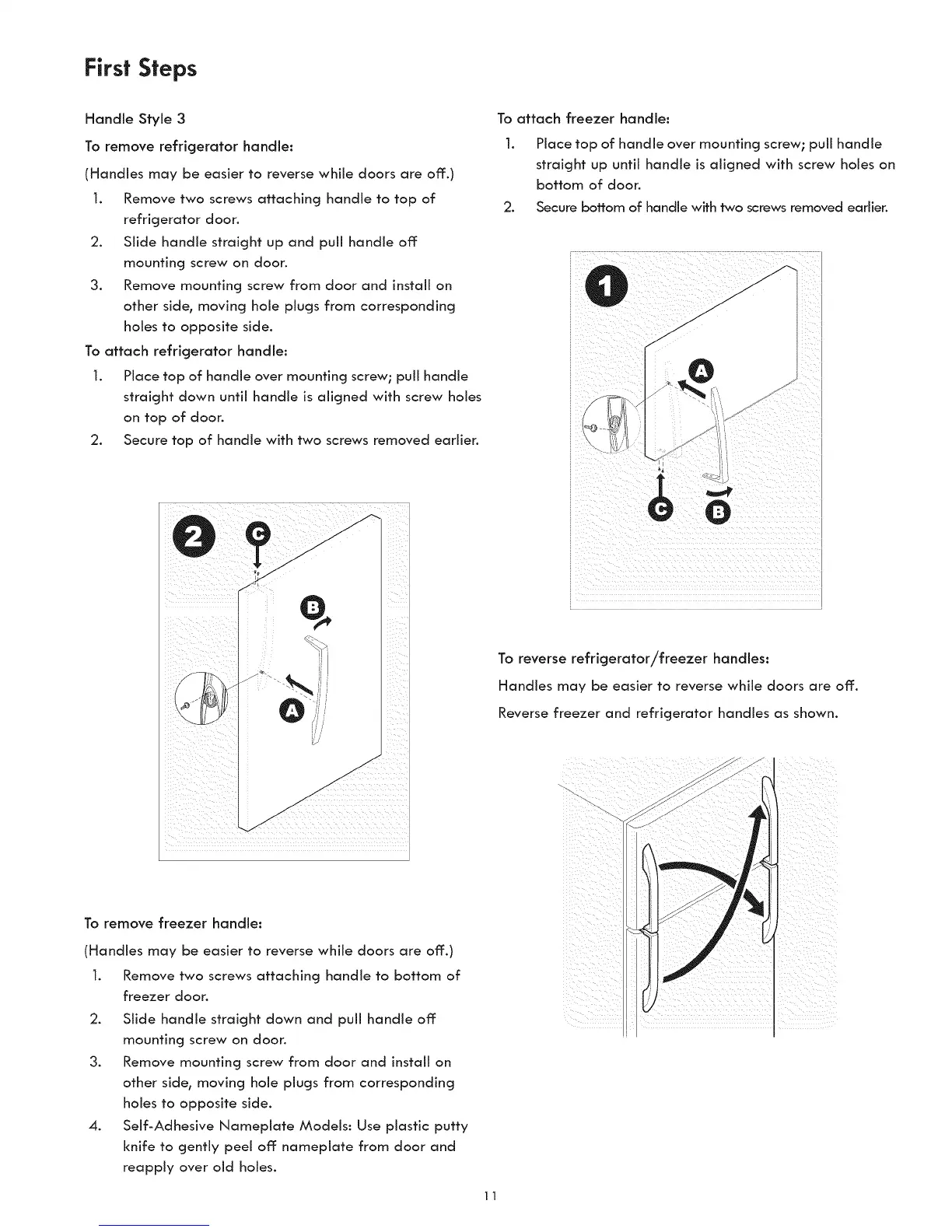

First Steps
Handle Style 3
To remove refrigerator handle:
(Handles may be easier to reverse while doors are off:.)
1. Remove two screws attaching handle to top of
refrigerator door.
2. Slide handle straight up and pull handle off:
mounting screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
To attach refrigerator handle:
1. Place top of handle over mounting screw; pull handle
straight down until handle is aligned with screw holes
on top of door.
2. Secure top of handle with two screws removed earlier.
To attach freezer handle:
1. Place top of handle over mounting screw; puii handle
straight up until handle is aligned with screw holes on
bottom of door.
2. Secure bottom of handle with two screws removed earlier.
To remove freezer handle:
(Handles may be easier to reverse while doors are off:.)
1. Remove two screws attaching handle to bottom of
freezer door.
2. Slide handle straight down and pull handle off:
mounting screw on door.
3. Remove mounting screw from door and install on
other side, moving hole plugs from corresponding
holes to opposite side.
4. Self-Adhesive Nameplate Models: Use plastic putty
knife to gently peel off: nameplate from door and
reapply over old holes.
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while doors are off:.
Reverse freezer and refrigerator handles as shown.
11
