Kenmore 795.6397 - Electrical Shock Hazard; Tools Needed; Removing and Replacing Doors

ELECTRICALSHOCKHAZARD
Beforeyoubegin,eitherunplugtherefrigeratororturnoffpoweratthecircuitbreakerorfusebox.Removefood
andanyAdjustableDoororUtilityBinsfromdoors.Failuretodosocouldresultindeathorseriousinjury.
Ifentranceislessthan35-incheswide,
therefrigerator'sdoorswillneedtoberemoved.
TOOLSNEEDED:
• 10mmor 13/32-inchsocketwrench
(with2-inchextensionforbottomdoorhinge)
• No.2 Phillipsheadscrewdriver
• Flat-headscrewdriverforprying

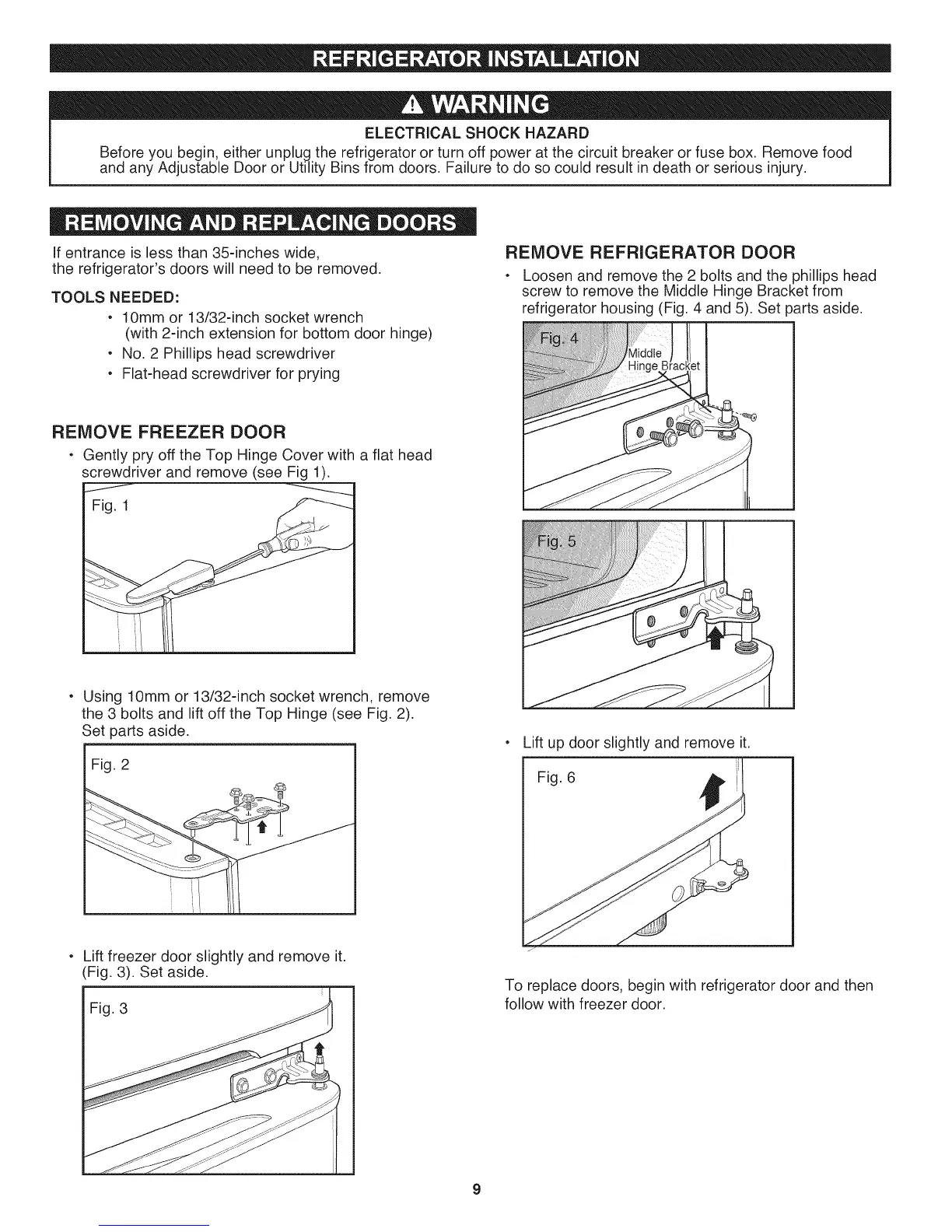

REMOVE REFRIGERATOR DOOR
• Loosen and remove the 2 bolts and the phillips head
screw to remove the Middle Hinge Bracket from
refrigerator housing (Fig. 4 and 5). Set parts aside.
REMOVE FREEZER DOOR
• Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove (see Fig 1).
Fig. 1
Using 10mm or 13/32-inch socket wrench, remove
the 3 bolts and lift off the Top Hinge (see Fig. 2).
Set parts aside.
Fig. 2
• Lift up door slightly and remove it.
Fig. 6
Lift freezer door slightly and remove it.
(Fig. 3). Set aside.
Fig. 3
To replace doors, begin with refrigerator door and then
follow with freezer door.
