4-3 OLP (OVERLOAD PROTECTOR)
4-3-1 Definition of OLP
(1) OLP (OVERLOAD PROTECTOR) is attached to the
compressor and protects the motor by opening the
circuit to the motor if the temperature rises
activating the bimetal spring in the OLP.
(2) When high current flows to the compressor motor, the
bimetal works by heating the heater inside the OLP,
and the OLP protects the motor by cutting off the
current flowing to the compressor motor.
4-3-2 Role of the OLP
(1) The OLP is attached to the sealed compressor used
for the refrigerator. It prevents the motor coil from
being started in the compressor.
(2) For normal operation of the OLP, do not turn the adjust
Screw of the OLP in any way.

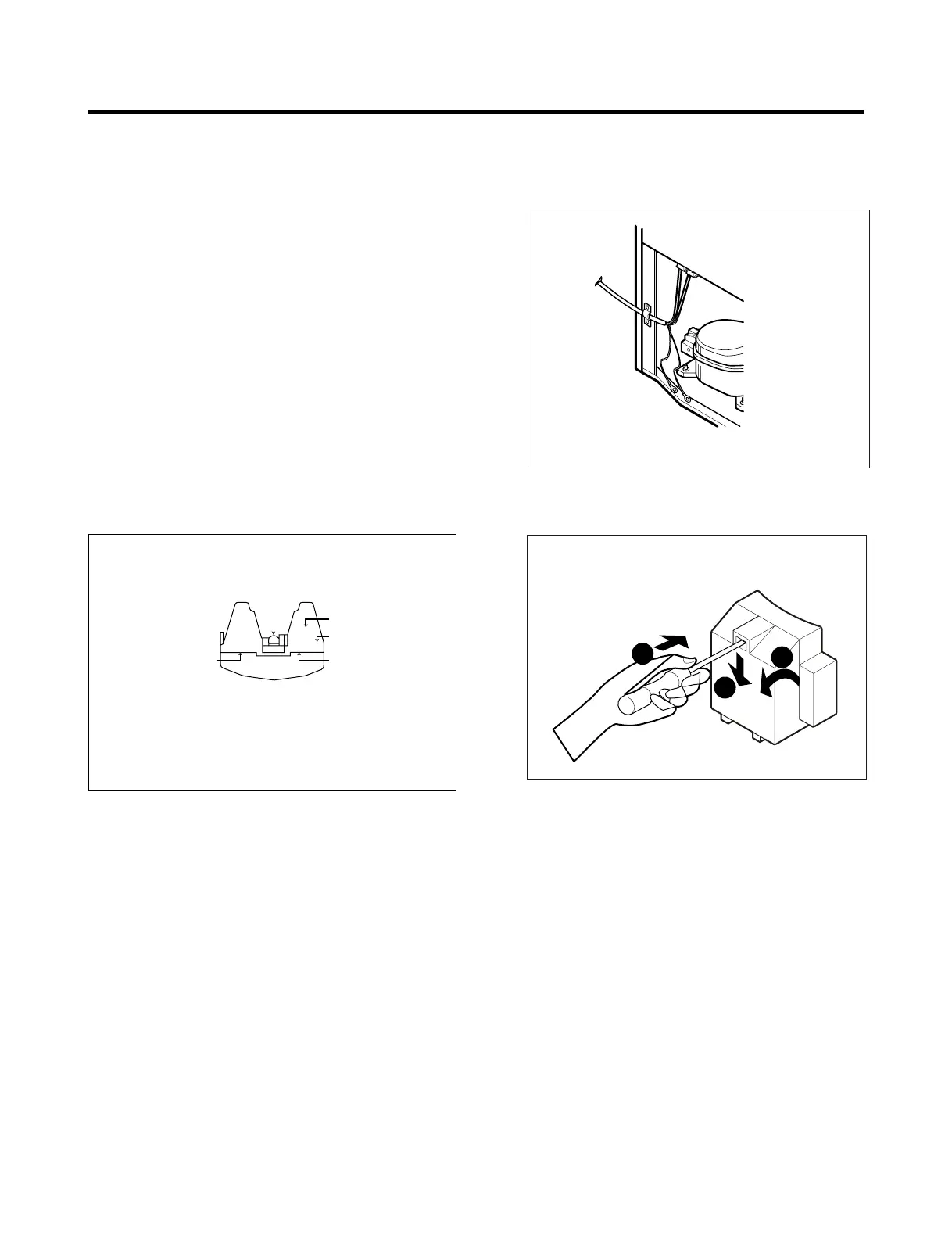

4-4 TO REMOVE THE COVER PTC
1) Remove the back cover of the mechanical area.
- 14 -
Customer part
number
Lot code/
date code
330 FBYY -S1 BOX98
12345678
Physical
termination
part number
Electrical
characteristics
part number
(OVERLOAD PROTECTOR cross section)
Figure 18
2
3
1
