7-1 OPERATION PRINCIPLE
7-1-1 Operation Principle of Icemaker
7.
- 23 -
1. Turning the Icemaker stop switch off (O) stops the icemaking function.
2. Setting the Icemaker switch to OFF and then turning it back on will reset the icemaker control.

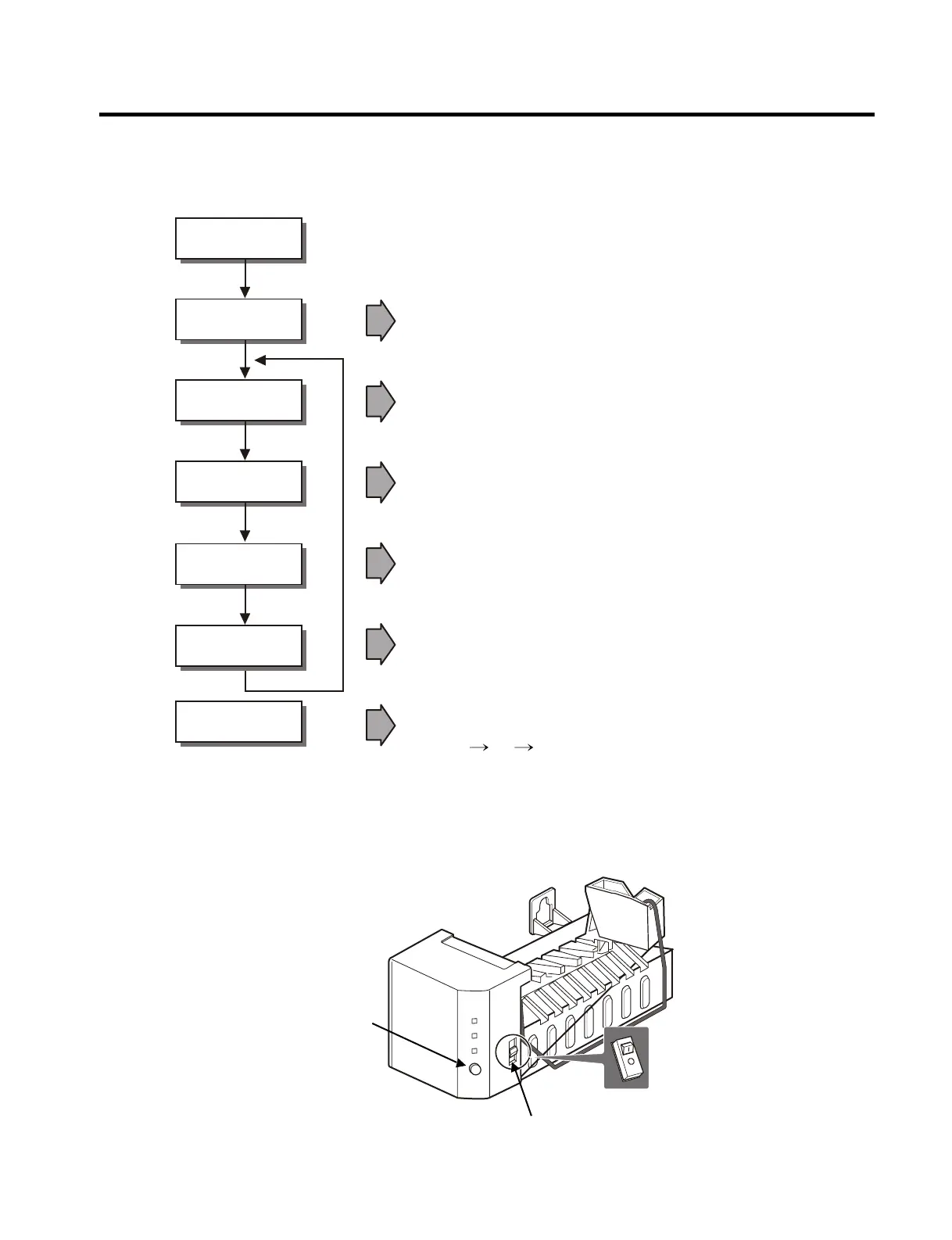

Start Position
Icemaking
Mode
Harvest
Mode
Park Position
Fill
•
•
Test Mode
Waits until water becomes cold after starting the
Icemaking operation.
• Runs MOTOR to drop ice from the tray into the ICE BIN.
• Performs Icemaking Mode after supplying water by operating
the SOLENOID in ICE VALVE.
• To operate LINE and SERVICE, press and hold the Cube Size button
for 3 seconds. The icemaking will run through 3 stages:
Harvest Fill Icemaking.
• With the detect lever, checks if the ICE BIN is full.
Power (On/Off) Switch
Power On
Adjusts Ejector to Start Position with power on.
ICEMAKER OPERATING PRINCIPLES AND REPAIR
Cube Size button
