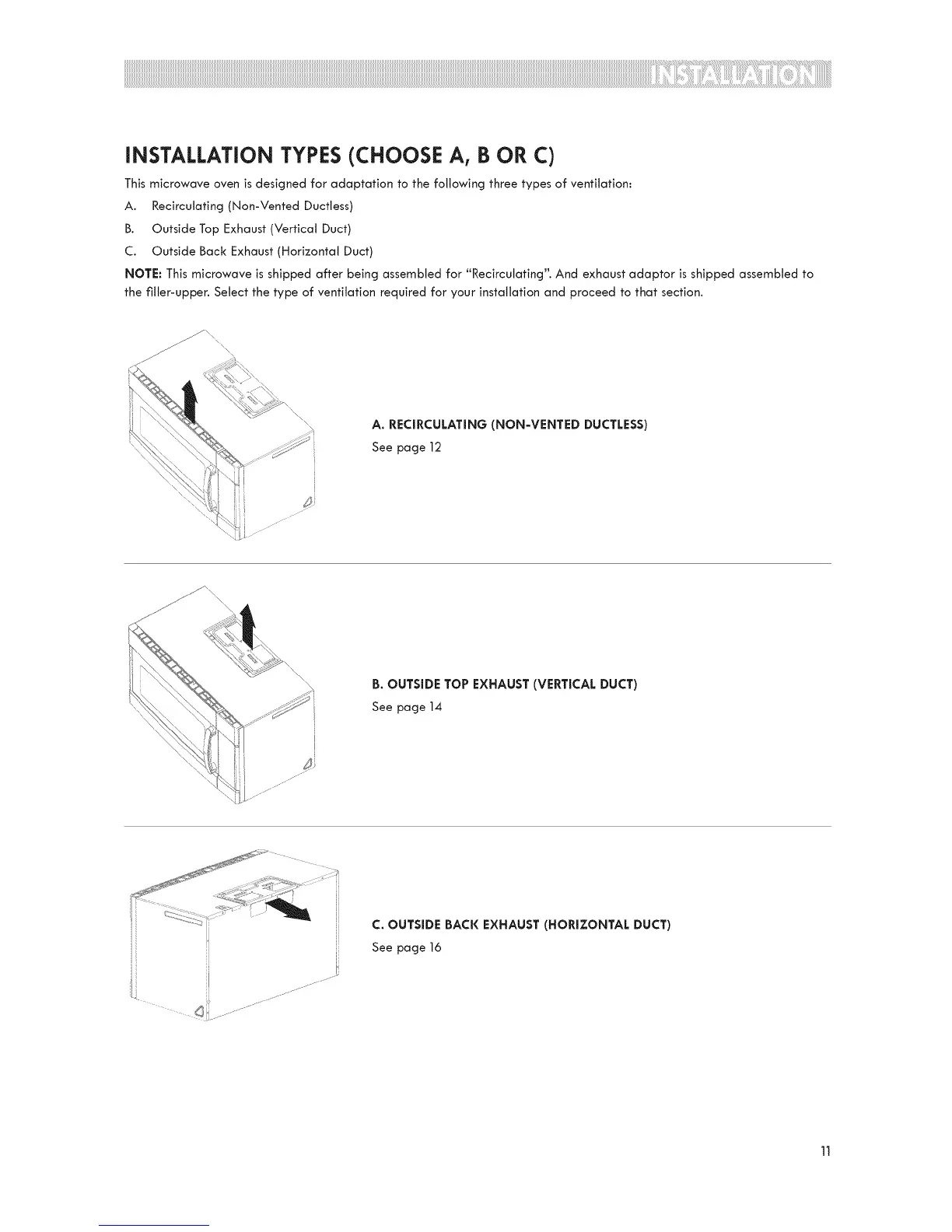

iNSTALLATiON TYPES (CHOOSE A, B OR C)
This microwave oven is designed for adaptation to the following three types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Top Exhaust (Vertical Duct)
C. Outside Back Exhaust (Horizontal Duct)
NOTE: This microwave is shipped after being assembled for "Recirculating'. And exhaust adaptor is shipped assembled to
the filter-upper. Select the type of ventilation required for your installation and proceed to that section.
A. RECIRCULATING (NON-VENTED DUCTLESS)
See page 12
\
\
B. OUTSIDE TOP EXHAUST (VERTICAL DUCT)
See page 14
C. OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)
See page16
