Installation (Continued)

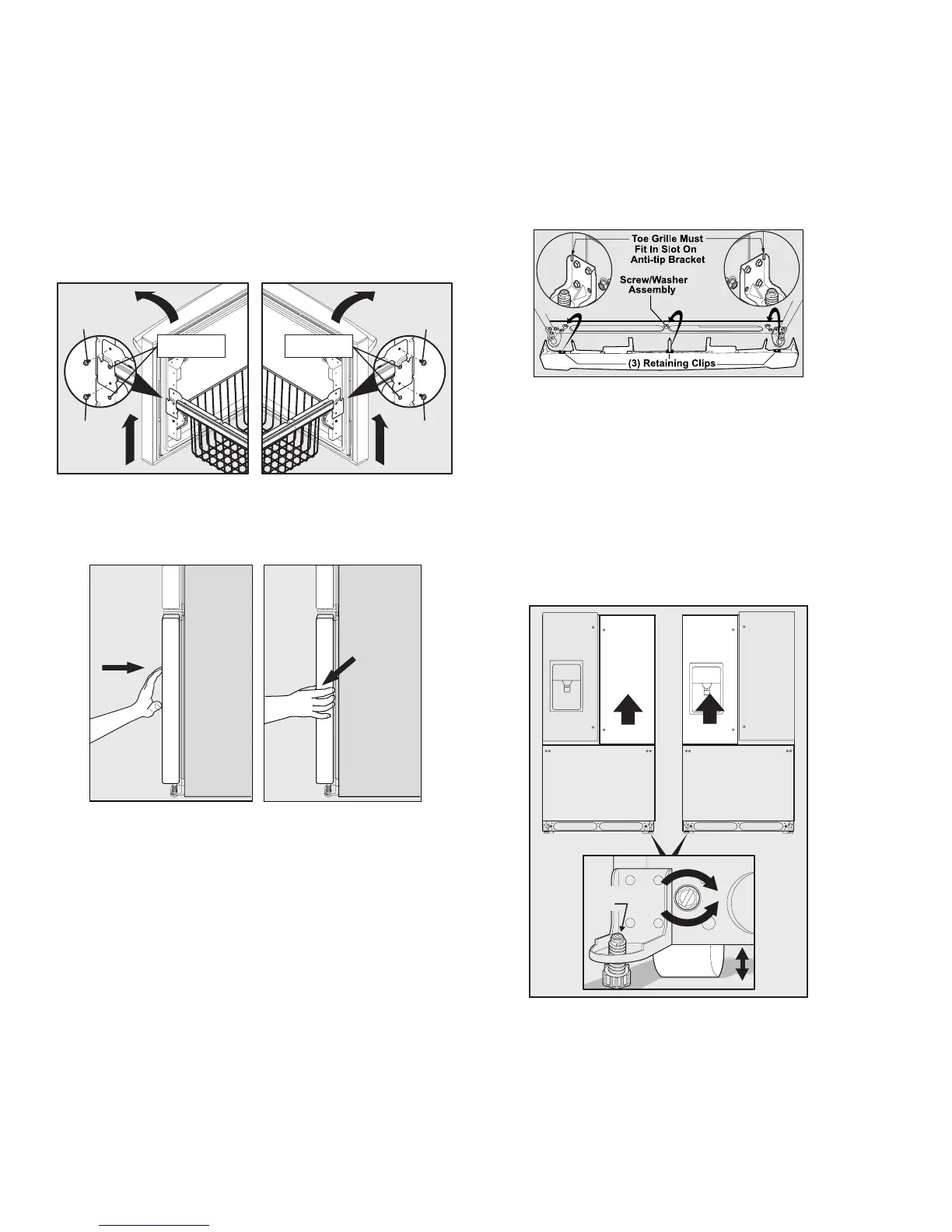

Leveling Freezer Drawer (if necessary)
Most of these conditions can be met by raising or lowering
the adjustable front rollers.
To level the cabinet using the front rollers:
1. Slightly open freezer drawer. Lift the toe grille and
gently pull forward (see illustration).
To level the freezer drawer:
1. Check gasket seal around top, bottom, and sides of
freezer drawer.
2. If gasket is not sealed, open drawer and slightly
loosen four (4) drawer screws (two (2) on each side)
to allow drawer to rotate.
3. Close drawer and recheck the seal on the gasket (A).
Open the drawer grabbing by the sides in the center
(B). Be careful not to rotate the drawer.
4. Tighten four (4) drawer screws.
5. Recheck gasket seal.
Level Refrigerator & Adjust Doors (if
necessary)
Guidelines for nal positioning of your refrigerator:
• All four corners of the cabinet must rest rmly on the
oor.
• The sides should tilt 1/4 inch (6 mm) from front to
back (to ensure that doors close and seal properly).
• Doors should align with each other and be level.
Pull Drawer Out
From Both Sides
Grab Drawer
At Center
Then
Push Against
Freezer Drawer
A B
Raise
Lower
Anti-tip
Leg
Door
Door
2. You can raise or lower each door. Use a 3/8 inch
socket wrench to turn the adjustment screws (1 per
side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
3. Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that
cabinet is stable.
4. After unit is leveled, lower anti-tip leg until it
contacts the oor.
5. Install the toe grille by tting into place.
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
Do Not Remove
Other Screws
