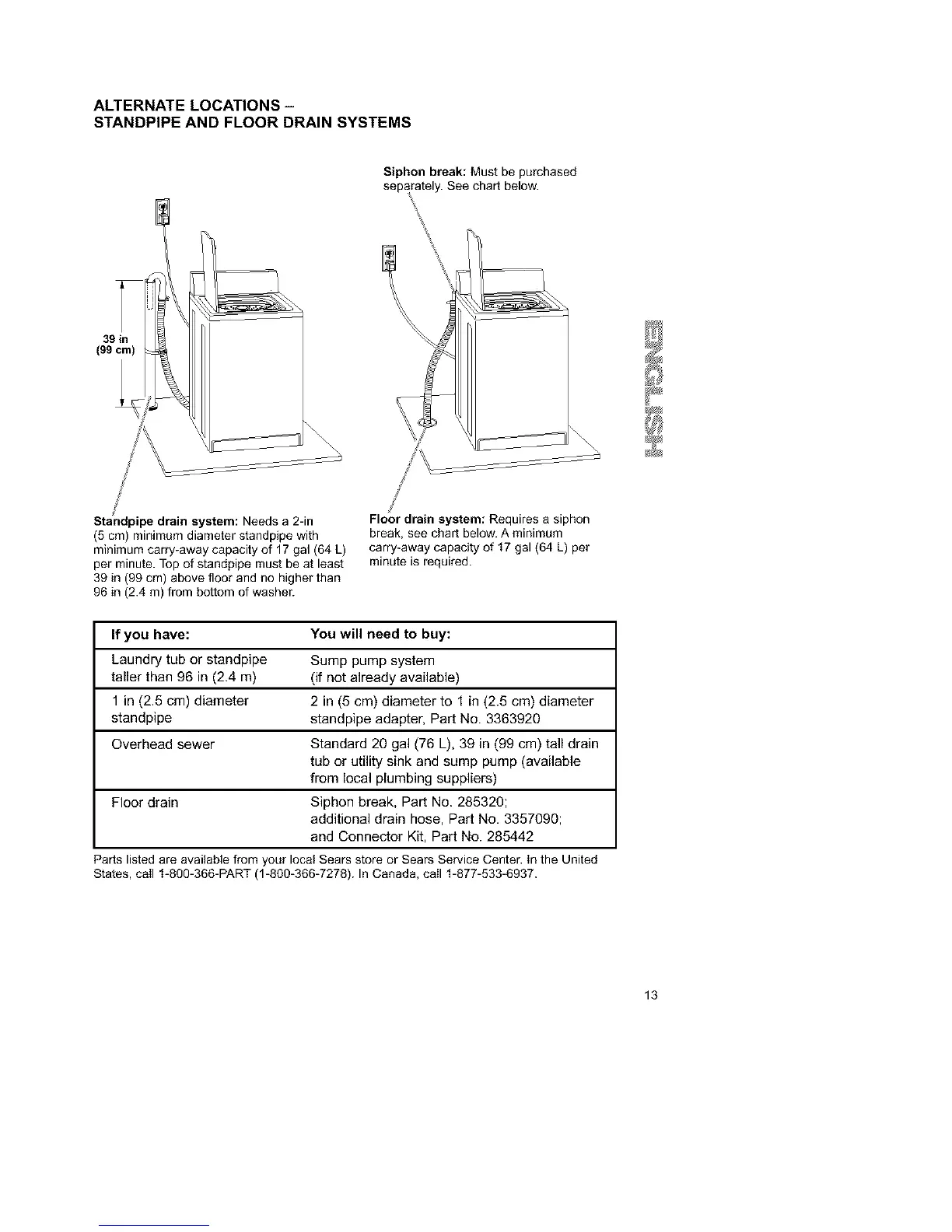

ALTERNATE LOCATIONS -
STANDPIPE AND FLOOR DRAIN SYSTEMS
Siphon break: Must be purchased
39 in
(99 cm)
Standpipe drain system: Needs a 2-in
(5 cm) minimum diameter standpipe with
minimum carry-away capacity of 17 gal (64 L)
per minute. Top of standpipe must be at least
39 in (99 cm) above floor and no higher than
96 in (2.4 m) from bottom of washer.
Floor drain system: Requires a siphon
break, see chart below. A minimum
carry-away capacity of 17 gal (64 L) per
minute is required.
If you have: You will need to buy:
Laundry tub or standpipe
taller than 96 in (2,4 m)
1 in (2,5 cm) diameter
standpipe
Overhead sewer
Sump pump system
(if not already available)
2 in (5 cm) diameter to 1 in (2.5 cm) diameter
standpipe adapter, Part No. 3363920
Standard 20 gal (76 L), 39 in (99 cm) tall drain
tub or utility sink and sump pump (available
from local plumbing suppliers)
Floor drain Siphon break, Part No, 285320;
additional drain hose, Part No, 3357090;
and Connector Kit, Part No. 285442
Parts listed are available from your local Sears store or Sears Service Center'.In the United
States, call 1-800-366-PART(1-800-366-7278). In Canada, call 1-877-533-6937.
