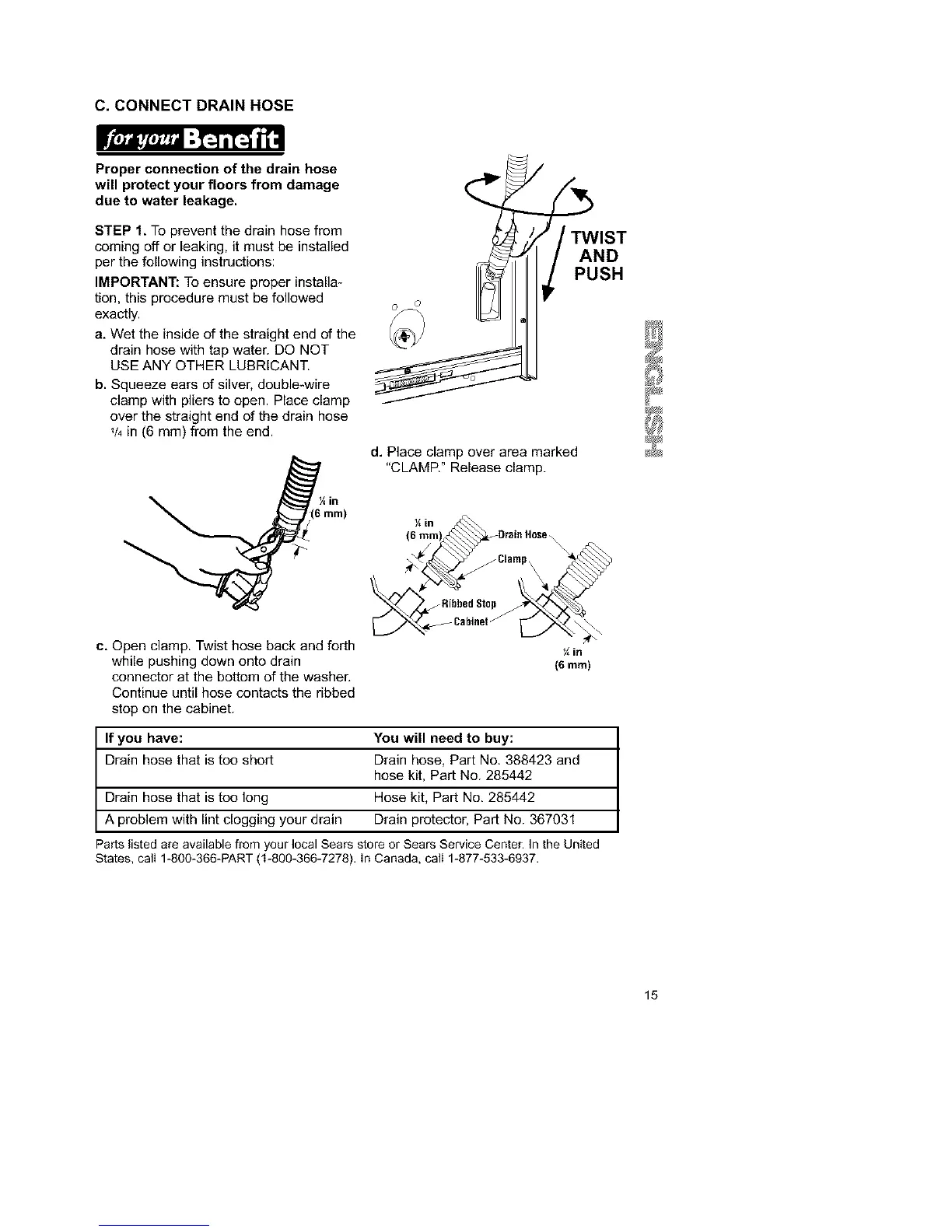

C. CONNECTDRAINHOSE
Proper connection of the drain hose
will protect your floors from damage
due to water leakage.
STEP 1. To prevent the drain hose from
coming off or leaking, it must be installed
per the following instructions:
IMPORTANT: To ensure proper installa-
tion, this procedure must be followed
exactly.
a. Wet the inside of the straight end of the
drain hose with tap water. DO NOT
USE ANY OTHER LUBRICANT.
b. Squeeze ears of silver, double-wire
clamp with pliers to open. Place clamp
over the straight end of the drain hose
V4in (6 ram) from the end.
c, Open clamp. Twist hose back and forth
while pushing down onto drain
connector at the bottom of the washer,
Continue until hose contacts the ribbed
stop on the cabinet.
rTWIST
AND
PUSH
d. Place clamp over area marked
"CLAMR" Release clamp.
(6_mi_n)_Drain Hose\
¼in
(6 ram)
If you have: You will need to buy:
Drain hose that is too short Drain hose, Part No. 388423 and
hose kit, Part No. 285442
Drain hose that is too long Hose kit, Part No. 285442
A problem with lint clogging your drain Drain protector, Part No. 367031
Parts listed are available from your local Sears store or Sears Service Center. In the United
States, calI 1-800-366-PART (1-800-366-7278). in Canada, calI 1-877-533-6937.
15
