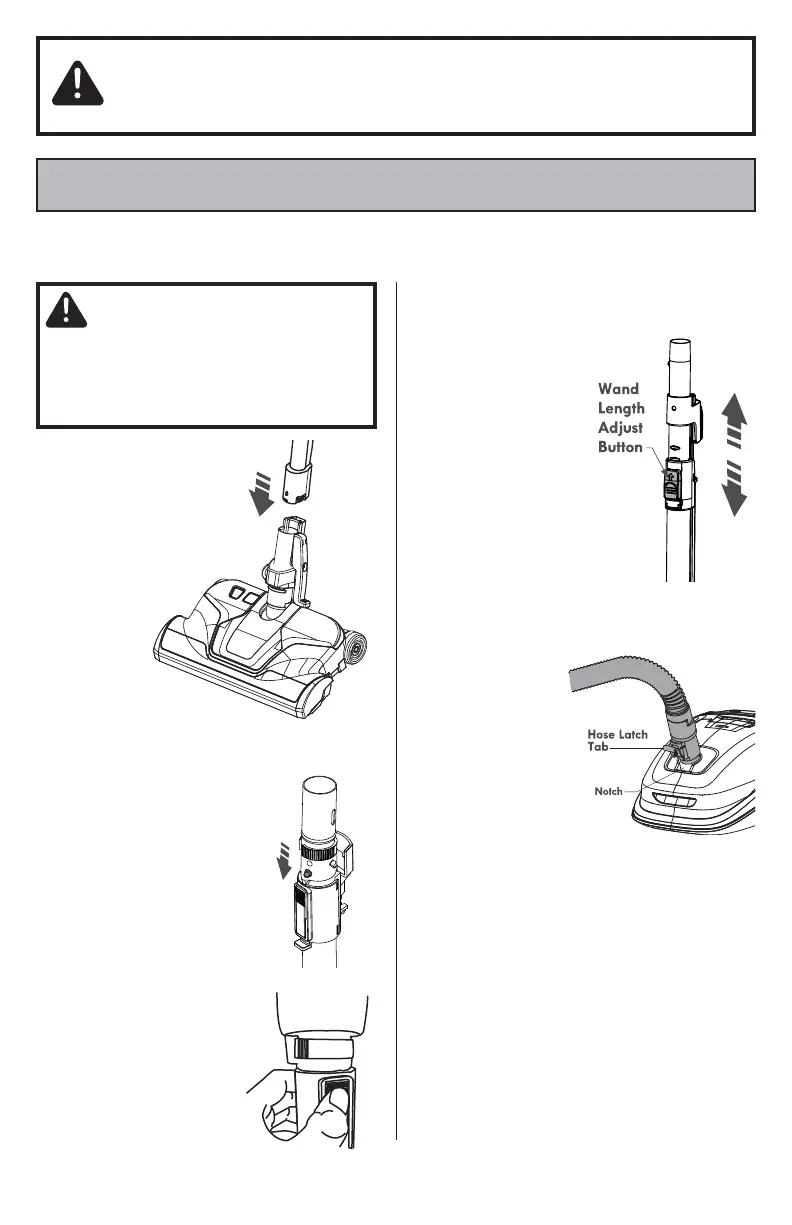

ASSEMBLY INSTRUCTIONS
Please pay special attention to these hazard alert boxes, and follow any instruc-
tions given. WARNING statements alert you to such dangers as fire, electric
shock, burns and personal injury. CAUTION statements alert you to such dangers
as personal injury and/or property damage.
WARNING
Electrical Shock Hazard
DO NOT plug into electrical supply until
assembly is complete. Failure to do so
could result in electrical shock or injury.
HANDLE ASSEMBLY
Insert wand into handle
until lock button snaps
in place.
To remove: Press wand
release button
and pull
up on handle.
To store: Disconnect hose
from wand and canister
to prevent stress on hose
during storage. Store
hose in a loosely coiled
position so the hose
covering is not stressed.
- 8 -
POWERMATE
Align telescoping wand
and insert onto
PowerMate until
the wand locks into
place.
Before assembling vacuum cleaner, check the PACKING LIST (page 2). Use this list to
verify that you have received and identified all the components of your new Kenmore
vacuum cleaner.
®
®
HOSE
To install: Line up
the hose latch tab
with the notch in
the canister hood,
and insert hose
into canister until
it snaps into place.
IMPORTANT:
Push hose firmly into the canister until the
hose latch tab snaps into place. The
vacuum cleaner will not operate until hose
is fully connected.
TELESCOPING WAND
The wand length is
adjustable and requires
no assembly.
To adjust, simply push
on the wand adjust
button and slide the
upper wand to the
desired height.
NOTE: When adjusting
the wand length you
may have to hold the
PowerMate
®
down
with your hand or foot.
To remove: Do not open hood before
removing hose. With hood closed, press the
hose latch tab in to release and remove hose.
To Next Page
