Kenmore BC3060 - Brush Roll Servicing; To Replace Brushroll Assembly

- 22 -

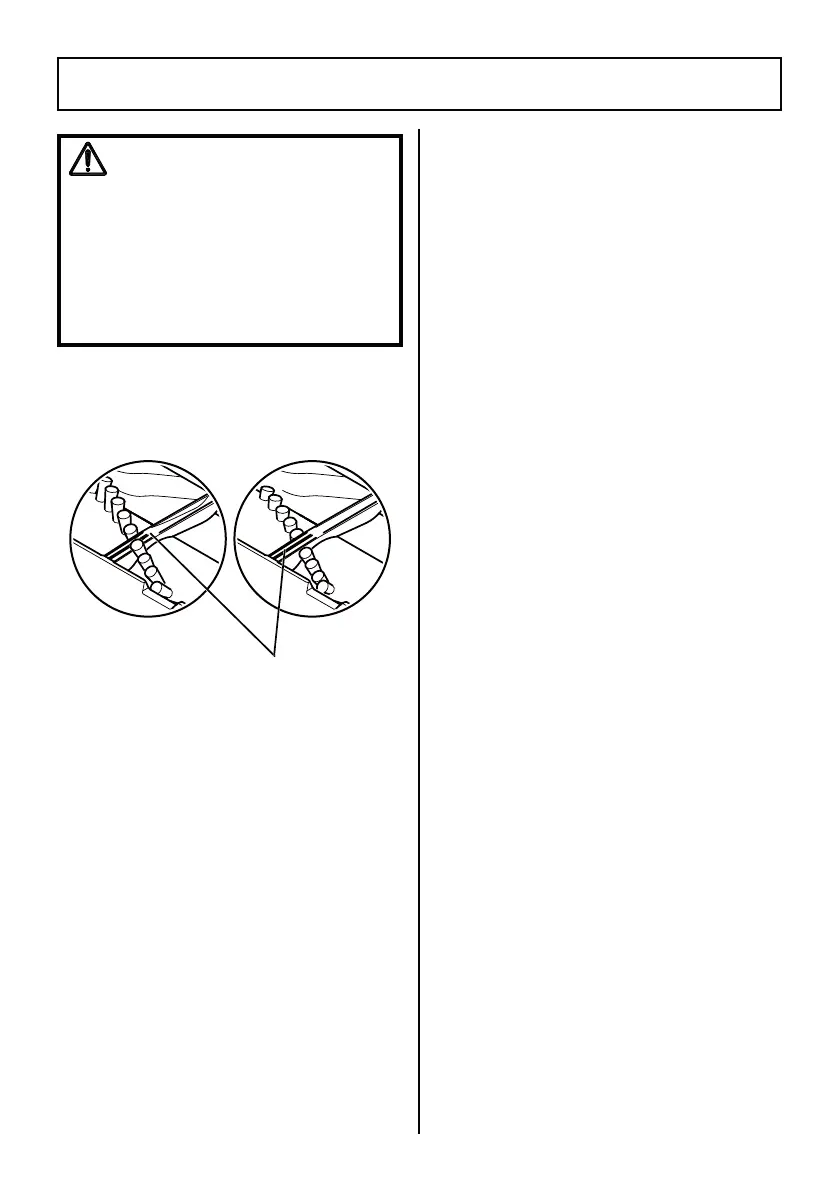

TO CHECK THE BRUSHES
W hen brushes are worn to the level of the
base support bars, replace the brushroll
assembly.
WARNING
Electrical Shock or Personal Injury
Hazard
Always turn off and unplug vacuum
cleaner before performing maintenance
to the vacuum cleaner. Failure to do
so could result in electrical shock or
personal injury from vacuum cleaner
suddenly starting.
BRUSHROLL SERVICING
New Brushes
W orn Brushes
TO REPLACE BRUSHROLL
ASSEMBLY
1. Remove PowerMate
®
cover, belt and
brushroll assembly. See “To Remove Belt”
in
BELT CHANGING AND BRUSHROLL
CLEANING
(page 20).
2. Install new brushroll assembly.
3. Reinstall belt and PowerMate
®
cover. See
“To replace belt” in
BELT CHANGING
AND BRUSHROLL CLEANING
(page 21).
NOTE:
See
REPLACEMENT PARTS
for part
number and purchase details (page 6).
Base Support Bar
