- 18 -

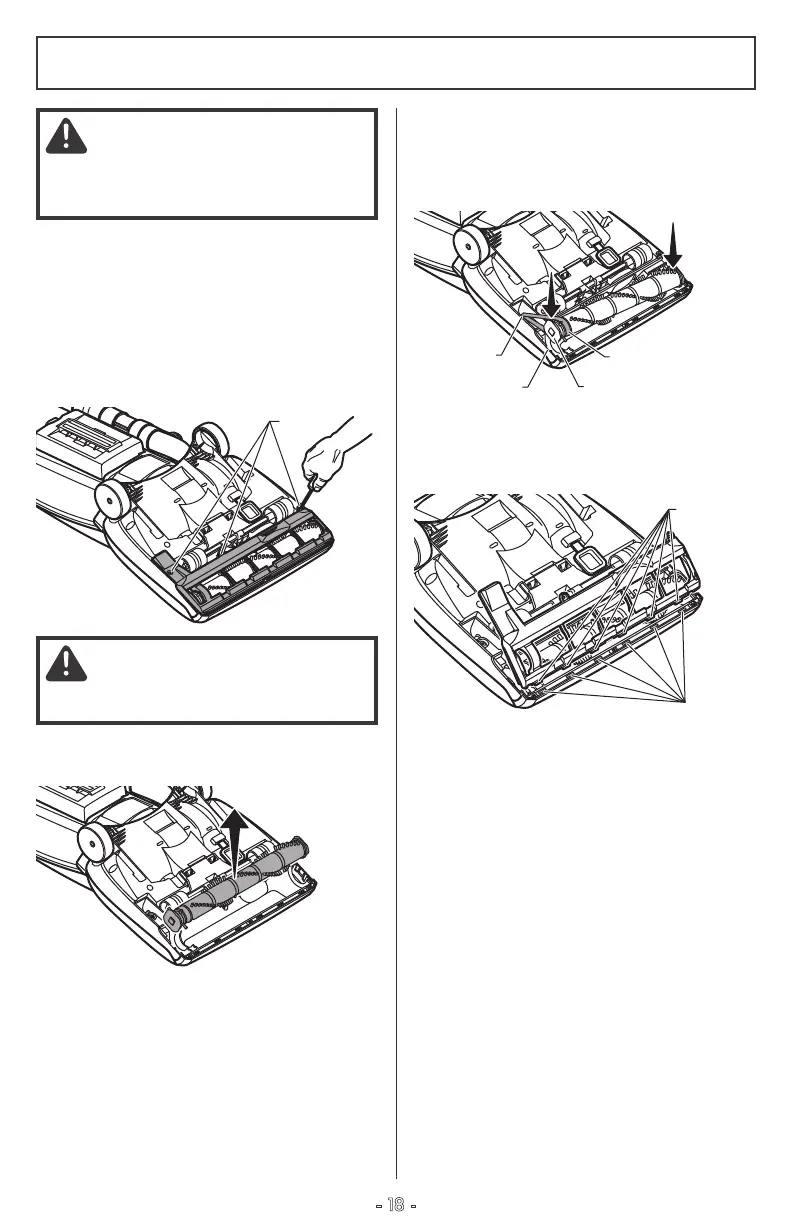

BELT CHANGING
Replace belt whenever a burning rubber
smell caused by excessive slippage
occurs.
1. Lay vacuum cleaner on floor with the
bottom up and nozzle flat.
2. Remove three (3) screws from the
lower plate. Lift off lower plate.
3. Remove agitator by carefully lifting
out.
4. Remove worn or broken belt.
5. Clean agitator (see AGITATOR
CLEANING, page 20).
6. Loop new belt around motor shaft and
agitator belt groove.
7. Reinstall agitator back into nozzle by
placing end caps into grooves.
8. Reinstall lower plate by aligning tabs
on front edge of lower plate with slots in
the nozzle and rotating to installed
position.
9. Reinstall three (3) screws to the lower
plate.
Screws
Belt Groove
End Cap
Motor
Shaft
Slot
Tabs
Slots
WARNING
Always unplug power cord from electrical
outlet before performing maintenance to
the vacuum cleaner.
CAUTION
Motor shaft may be hot
