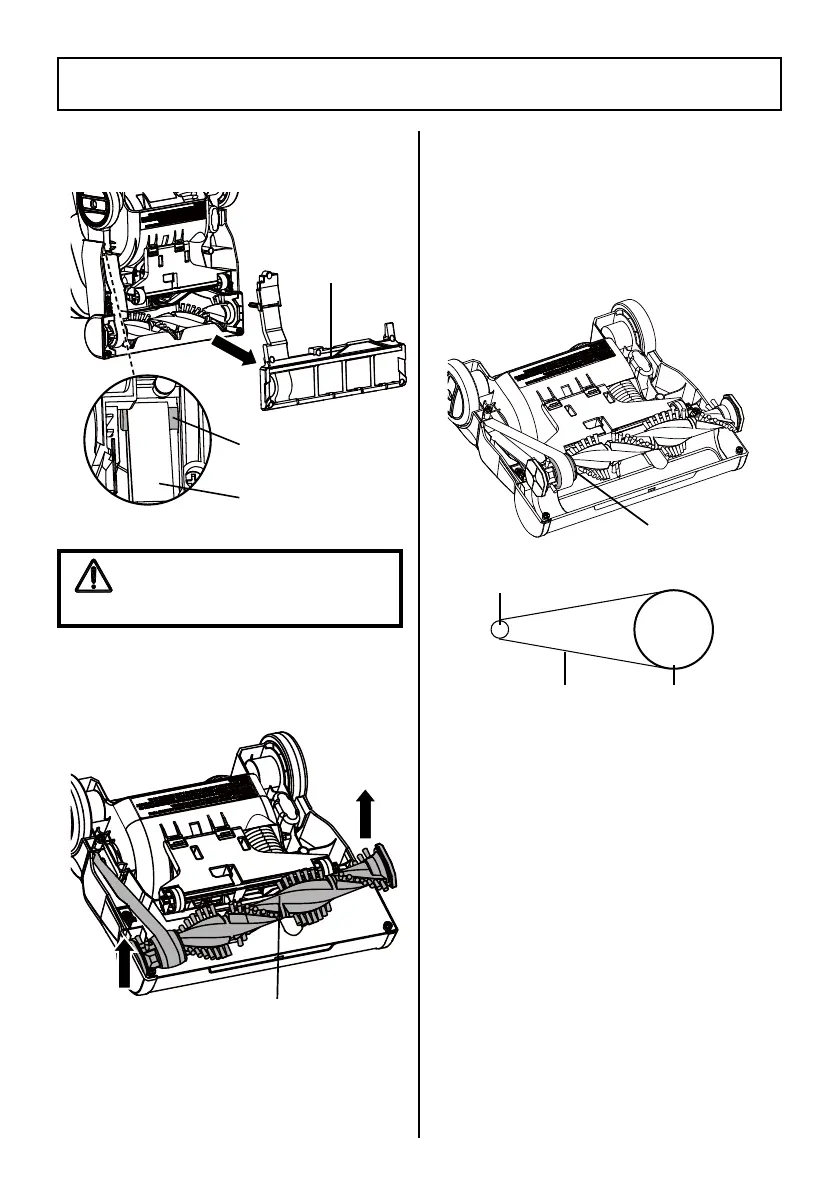

5. Remove the worn or broken belt.
6. Use scissors to remove any entangled
hair around the brushroll. Clean any
debris from the floor nozzle.
7. Loop the new belt around the motor
shaft and the belt path on the brushroll.
8. Reinstall the brushroll back into the floor
nozzle by placing end caps into slots.
First align the end cap of belt side of
the brushroll with the slot and insert it
into place. Then press down the end cap
of the non-belt side firmly into the slot
as shown below. Rotate the brushroll to
make sure the belt is installed correctly.
NOTE:
Make sure the belt is in the
middle of the belt path as shown.
4. Remove the brushroll by carefully lifting
it out.
3. Remove the lower plate from the floor
nozzle.
- 21 -
BELT CHANGING
CAUTION
Motor shaft may be hot.
Lower
Plate
Motor
Shaft
Belt
Brushroll
I
II
Belt Path
Motor Shaft
Belt Brushroll
To Next Page
