4. Lift the lower plate combined with the
brushroll.
3. Remove the belt cover from the floor
nozzle.
5. Remove the worn or broken belt.
6. Clean any debris from the floor nozzle.
7. Loop the new belt around the motor
shaft and the belt path on the brushroll.
NOTE:
Before reinstalling the lower
plate, make sure the belt is in the middle
of the belt path as shown.
I
- 21 -

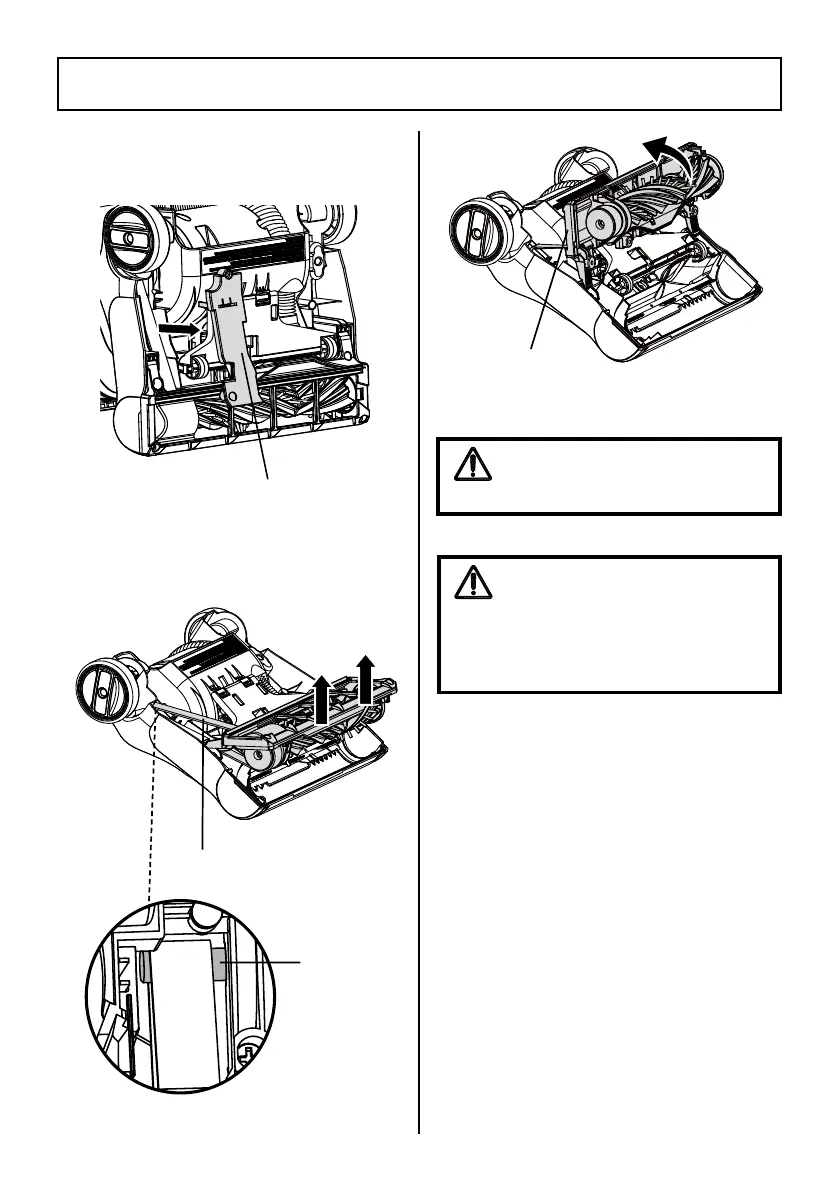

BELT CHANGING
II
CAUTION
Motor shaft may be hot.
Belt Cover
Belt
Lower Plate
with Brushroll
Motor Shaft
WARNING
There are sharp edges inside to prevent
hair entanglement. Do not put any part
of the body into the floor brush during
maintenance.
To Next Page
