Locking
Tabs
- 22 -

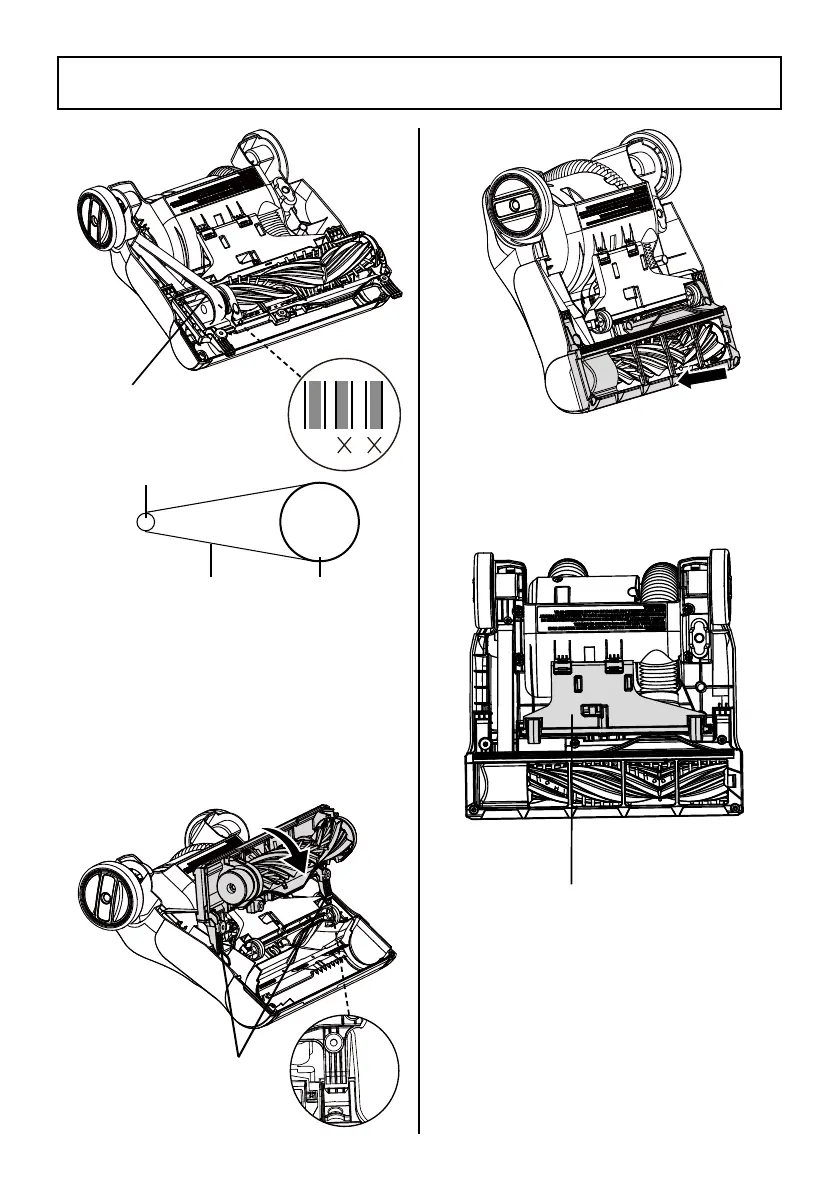

8. Reinstall the lower plate with the
brushroll back into the floor nozzle. First
align the two locking tabs on the lower
plate with the slots in the nozzle as
shown. Then rotate the lower plate down
onto the brushroll housing. Press on the
middle part of the lower plate until you
hear a “click”. Rotate the brushroll to
make sure the belt is installed correctly.
BELT CHANGING
Belt Path
√
I
II
Small Wheel Bracket
NOTE:
Check to make sure the small
wheel bracket is properly fixed by the
lower plate and cannot be lifted off.
Motor Shaft
Belt Brushroll
To Next Page
