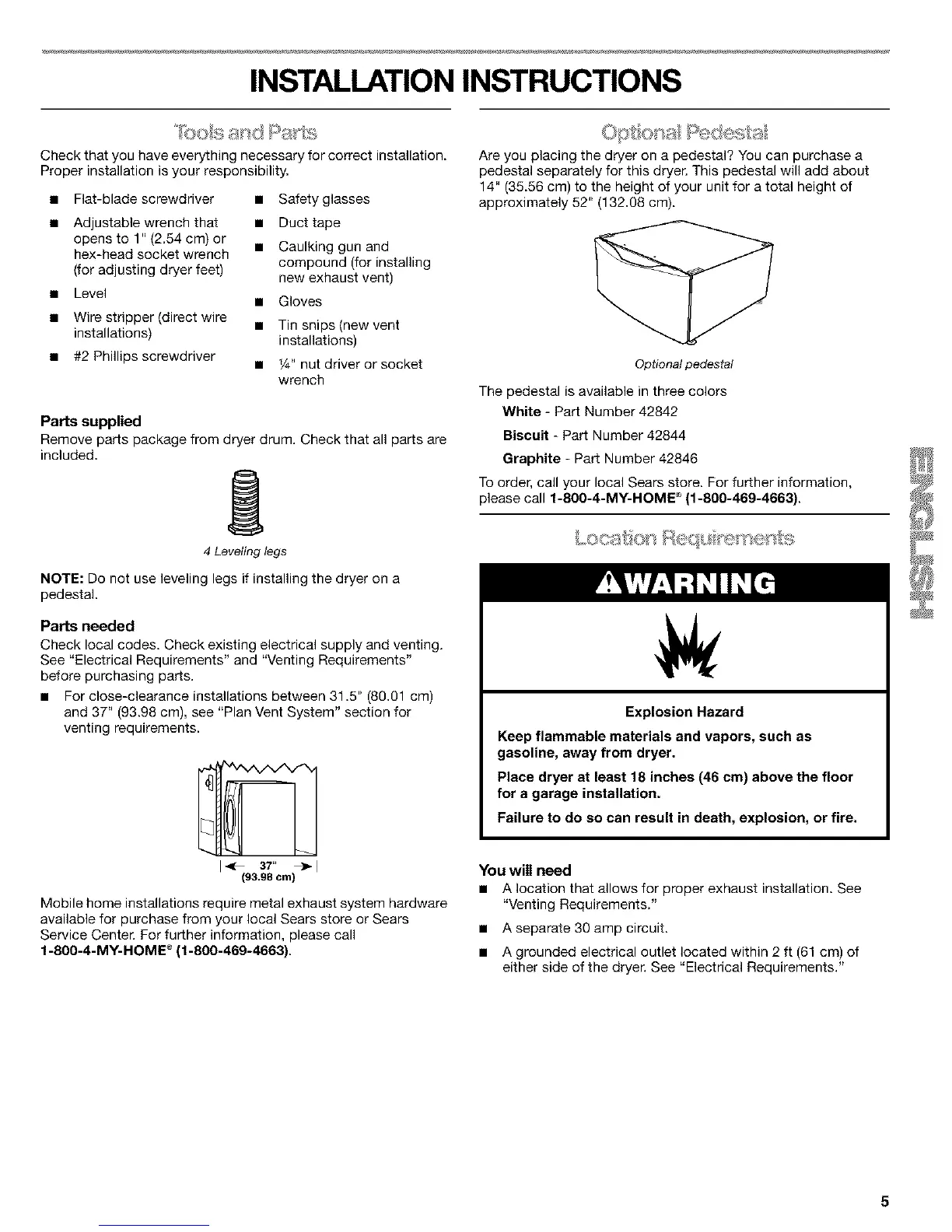

INSTALLATIONINSTRUCTIONS
Check that you have everything necessary for correct installation.
Proper installation is your responsibility.
• Flat-blade screwdriver • Safety glasses
• Adjustable wrench that • Duct tape
opens to 1" (2.54 cm) or
hex-head socket wrench • Caulking gun and
(for adjusting dryer feet) compound (for installing
new exhaust vent)
• Level
• Gloves
• Wire stripper (direct wire
installations) • Tin snips(new vent
installations)
• #2 Phillips screwdriver
• _/_"nut driver or socket
wrench
Parts supplied
Remove parts package from dryer drum. Check that all parts are
included.
1
4 Leveling legs
NOTE: Do not use leveling legs if installing the dryer on a
pedestal.
Parts needed
Check local codes. Check existing electrical supply and venting.
See "Electrical Requirements" and "Venting Requirements"
before purchasing parts.
• For close-clearance installations between 31.5" (80.01 cm)
and 37" (93.98 cm), see "Plan Vent System" section for
venting requirements.
I_ 3T' 4-1
(93.98 cm)
Mobile home installations require metal exhaust system hardware
available for purchase from your local Sears store or Sears
Service Center. For further information, please call
1-800-4-MY-HOME ®(f-800-469-4663).
Are you placing the dryer on a pedestal? You can purchase a
pedestal separately for this dryer. This pedestal will add about
14" (35.56 cm) to the height of your unit for a total height of
approximately 52" (132.08 cm).
Optionalpedestal
The pedestal is available in three colors
White - Part Number 42842
Biscuit - Part Number 42844
Graphite - Part Number 42846
To order, call your local Sears store. For further information,
please call f-800-4-M¥-HOME e (1-800-469-4663).
,_O[ ....... _0 t,=*
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (46 cm) above the floor
for a garage installation.
Failure to do so can result in death, explosion, or fire.
You will need
• A location that allows for proper exhaust installation. See
"Venting Requirements."
• A separate 30 amp circuit.
• A grounded electrical outlet located within 2 ft (61 cm) of
either side of the dryer. See "Electrical Requirements."
