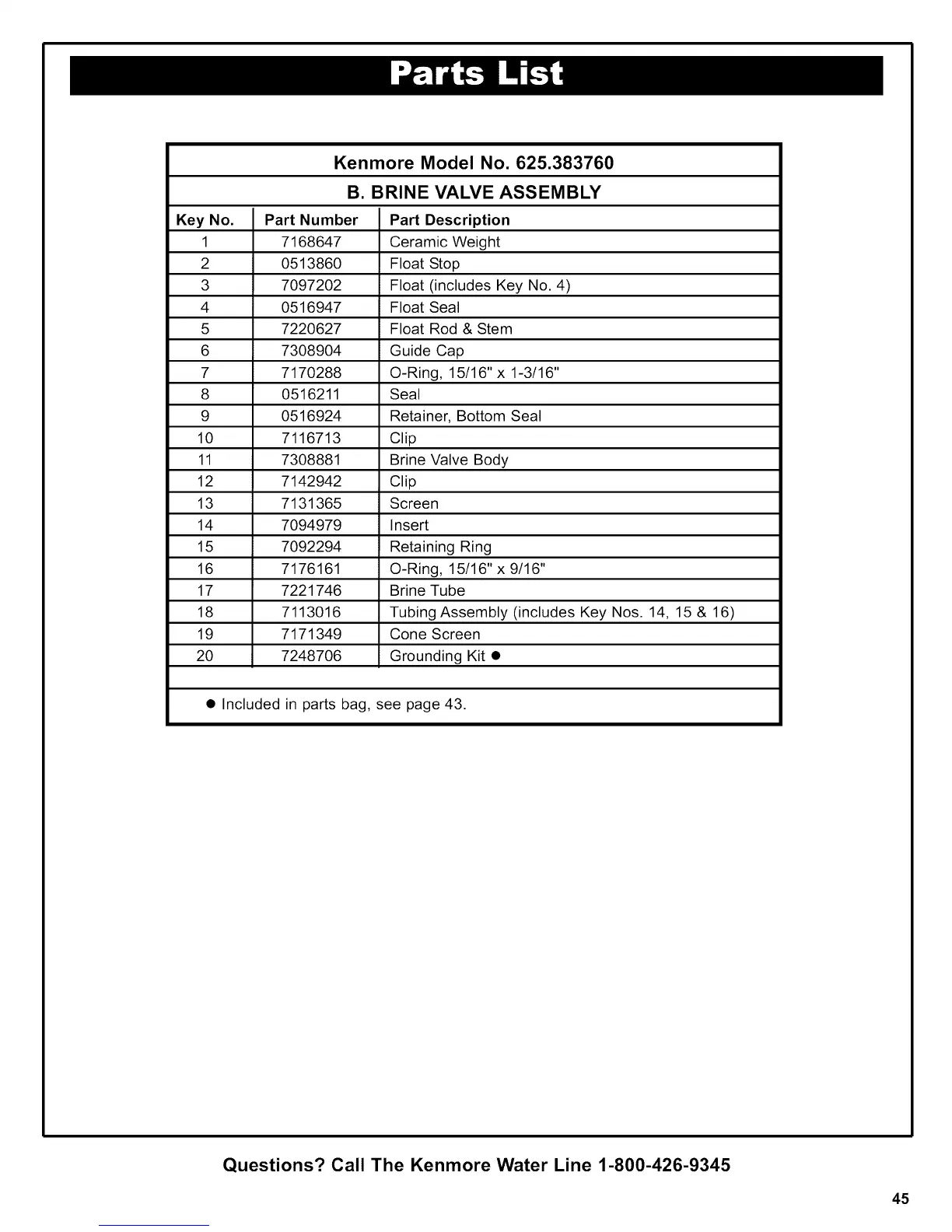

Kenmore Model No. 625.383760
B. BRINE VALVE ASSEMBLY
Key No. Part Number Part Description
1 7168647 Ceramic Weight
2 0513860 Float Stop
3 7097202 Float (includes Key No. 4)
4 0516947 Float Seal
5 7220627 Float Rod & Stem
6 7308904 Guide Cap
7 7170288 O-Ring, 15/16" x 1-3/16"
8 0516211 Seal
9 0516924 Retainer, Bottom Seal
10 7116713 Clip
11 7308881 Brine Valve Body
12 7142942 Clip
13 7131365 Screen
14 7094979 Insert
15 7092294 Retaining Ring
16 7176161 O-Ring, 15/16" x 9/16"
17 7221746 Brine Tube
18 7113016 Tubing Assembly (includes Key Nos. 14, 15 & 16)
19 7171349 Cone Screen
20 7248706 Grounding Kit •
• Included in parts bag, see page 43.
Questions? Call The Kenmore Water Line 1-800-426-9345
45
