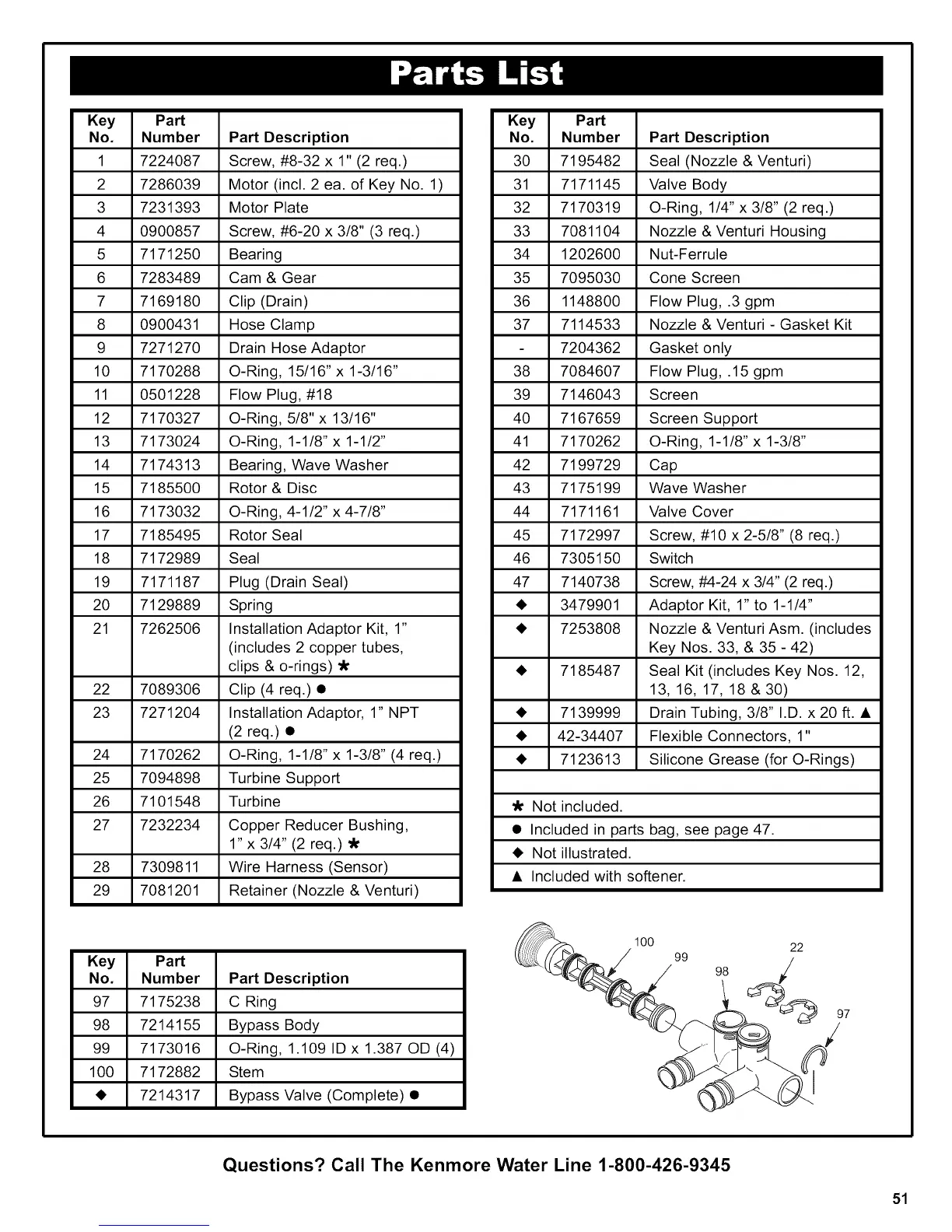

Key Part
No. Number Part Description
1 7224087 Screw, #8-32 x 1" (2 req.)
2 7286039 Motor (incl. 2 ea. of Key No. 1)
3 7231393 Motor Plate
4 0900857 Screw, #6-20 x 3/8" (3 req.)
5 7171250 Bearing
6 7283489 Cam & Gear
7 7169180 Clip (Drain)
8 0900431 Hose Clamp
9 7271270 Drain Hose Adaptor
10 7170288 O-Ring, 15/16" x 1-3/16"
11 0501228 Flow Plug, #18
12 7170327 O-Ring, 5/8" x 13/16"
13 7173024 O-Ring, 1-1/8" x 1-1/2"
14 7174313 Bearing, Wave Washer
15 7185500 Rotor & Disc
16 7173032 O-Ring, 4-1/2" x 4-7/8"
17 7185495 Rotor Seal
18 7172989 Seal
19 7171187 Plug (Drain Seal)
20 7129889 Spring
21 7262506 Installation Adaptor Kit, 1"
(includes 2 copper tubes,
clips & o-rings) _t
22 7089306 Clip (4 req.) •
23 7271204 Installation Adaptor, 1" NPT
(2 req.) •
24 7170262 O-Ring, 1-1/8" x 1-3/8" (4 req.)
25 7094898 Turbine Support
26 7101548 Turbine
27 7232234 Copper Reducer Bushing,
l"x 3/4" (2 req.) "k
28 7309811 Wire Harness (Sensor)
29 7081201 Retainer (Nozzle & Venturi)
Key Part
No. Number Part Description
97 7175238 C Ring
98 7214155 Bypass Body
99 7173016 O-Ring, 1.109 ID x 1.387 OD (4)
100 7172882 Stem
• 7214317 Bypass Valve (Complete) •
Key Part
No. Number
30 7195482
31 7171145
32 7170319
33 7081104
34 1202600
35 7095030
36 1148800
37 7114533
- 7204362
38 7084607
39 7146043
40 7167659
41 7170262
42 7199729
43 7175199
44 7171161
45 7172997
46 7305150
47 7140738
• 3479901
• 7253808
• 7185487
• 7139999
• 42-34407
• 7123613
Part Description
Seal (Nozzle & Venturi)
Valve Body
O-Ring, 1/4" x 3/8" (2 req.)
Nozzle & Venturi Housing
Nut-Ferrule
Cone Screen
Flow Plug, .3 gpm
Nozzle & Venturi - Gasket Kit
Gasket only
Flow Plug,. 15 gpm
Screen
Screen Support
O-Ring, 1-1/8" x 1-3/8"
Cap
Wave Washer
Valve Cover
Screw, #10 x 2-5/8" (8 req.)
Switch
Screw, #4-24 x 3/4" (2 req.)
Adaptor Kit, 1" to 1-1/4"
Nozzle & Venturi Asm. (includes
Key Nos. 33, & 35 - 42)
Seal Kit (includes Key Nos. 12,
13, 16, 17, 18 & 30)
Drain Tubing, 3/8" I.D. x 20 ft. •
Flexible Connectors, 1"
Silicone Grease (for O-Rings)
•A' Not included.
• Included in parts bag, see page 47.
• Not illustrated.
• Included with softener.
100
99
98
22
97
Questions? Call The Kenmore Water Line 1-800-426-9345
51
