Kenmore UltraSoft 170 - C. TYPICAL SOLDERED COPPER (OR PVC) IN AND OUT PIPES TO SOFTENER

SECTION2 PLAN YOUR INSTALLATION

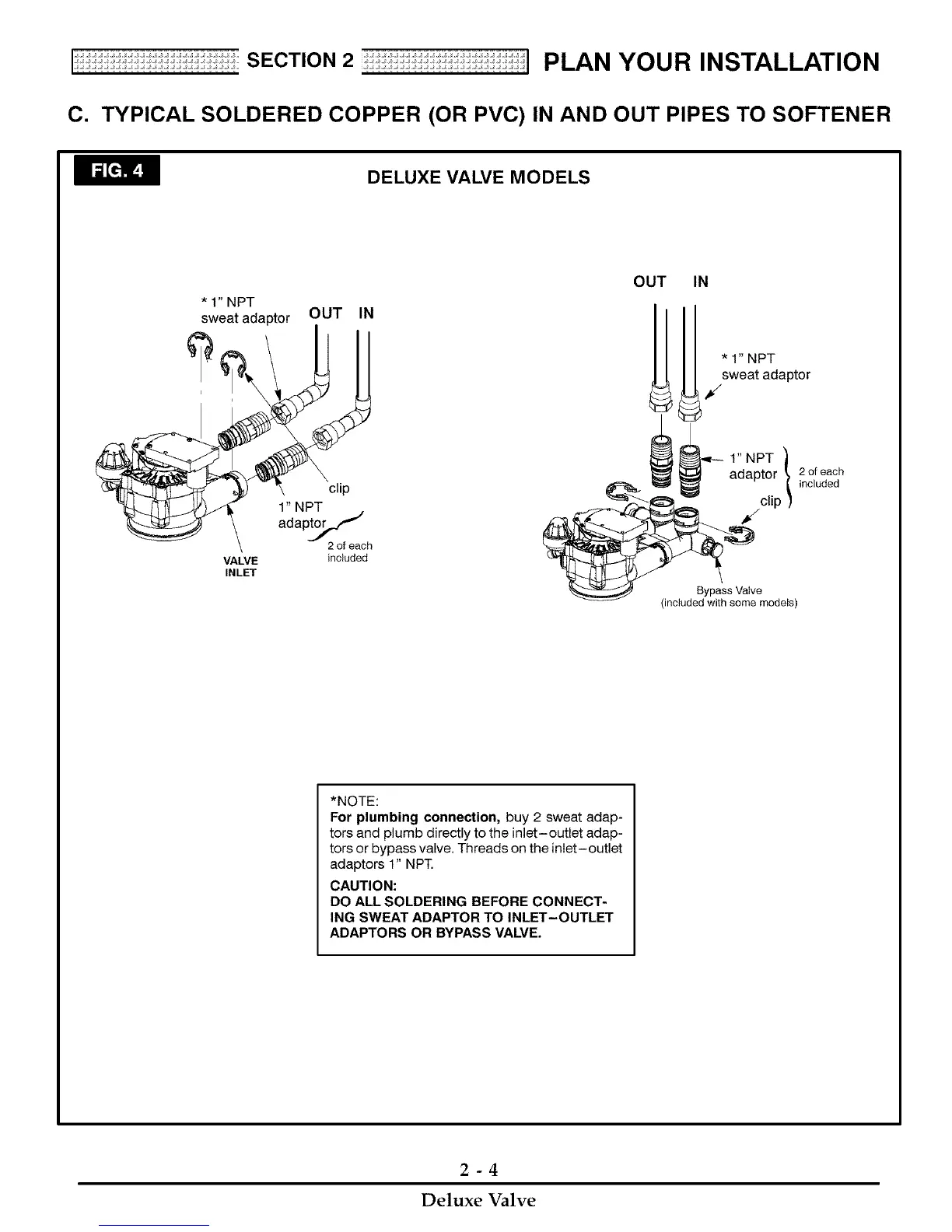

C. TYPICAL SOLDERED COPPER (OR PVC) IN AND OUT PIPES TO SOFTENER
DELUXE VALVE MODELS
* 1" NPT
sweat adaptor OUT IN
c,!
_t-f _ la"d aNP_ch
VALVE included
INLET
OUT IN
* 1" NPT
sweat adaptor
.z
1
"NPT J
adaptor _, 2 of each
|
included
clip]
Bypass Valve
(included with some models)
*NOTE:
For plumbing connection, buy 2 sweat adap-
tors and plumb directly to the inlet-outlet adap-
tors or bypass valve. Threads on the inlet-outlet
adaptors 1" NPT.
CAUTION:
DO ALL SOLDERING BEFORE CONNECT-
ING SWEAT ADAPTOR TO INLET-OUTLET
ADAPTORS OR BYPASS VALVE.
2-4
Deluxe Valve
